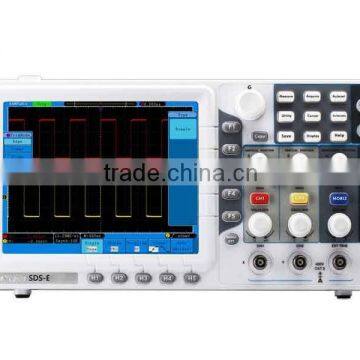

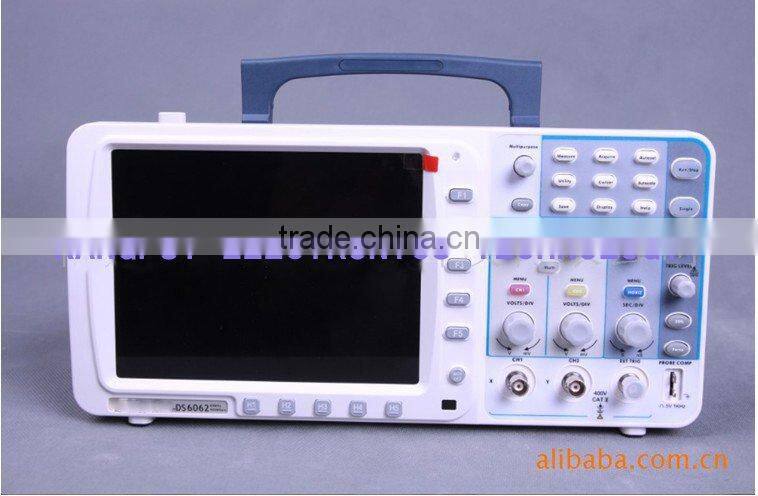

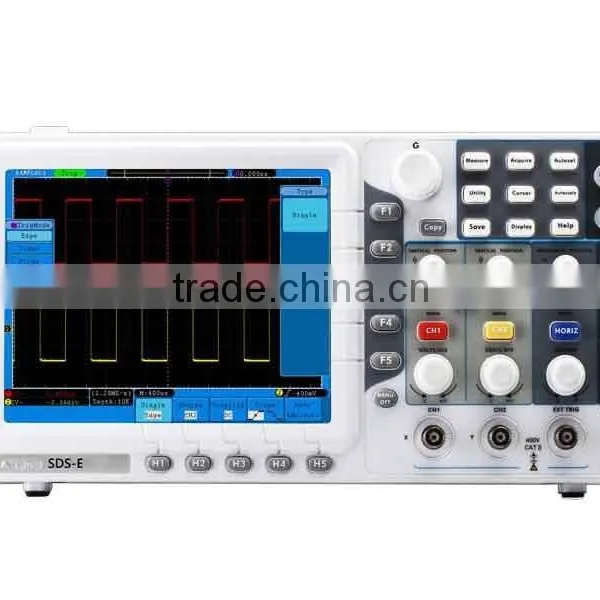

2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)

2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062) thumbnail-1
2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062) thumbnail-2
2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062) photo-1
2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062) photo-2
US$ 360 - 400 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Kangput
Model Number:
SDS6062
Contact Supplier Request Quote Chat Now
Xiamen KANGPUT Electronics Technology Co., Limited
Payment & Shipping
Payment Methods:
Port of Shipment:
HK
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Fujian, China
Brand Name Kangput
Model Number SDS6062
FTA(Free To Air) No
Type Digital
High Definition Yes

2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)

2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)



Application:

Design and Debug

Circuit function test

Mixed signal circuit test

Identified signals logic information

Education & Training

Models in the SmartDS Series



Model SDS6062

Bandwidth: 60MHz

Sample rate(Real time) :500MS/s

Horizontal Scale:(S/div) 5ns/div-100s/div, step by 1-2-5

Rise time (at input, typical): 5.8ns

Channels: Dual

Display: 8" color LCD,TFT display,800x600 pixels,65535 colors

Dimension :340mm*155mm*70mm

Weight: 1.80kg

Performance Specifications



Model

SDS6062

SDS7072

SDS7102

SDS8102

SDS8202

SD8302

SD9302

Bandwidth

60MHz

70MHz

100MHz

200MHz

300MHz

Sample Rate

500MS/s

1GS/s

2GS/s

2.5GS/s

3.2GS/s

Horizontal Scale (s/div)

5ns/div~100s/div,step by 1~2~5

 2ns/div~100s/div,

 step by 1~2~5

 1ns/div~100s/div, step by 1~2~5

Rise Time

 ≤5.8ns

 ≤5ns

 ≤3.5ns

≤1.7ns

 ≤1.17ns

Display

 8”color LCD, 800 x 600 pixels, 65535 colors

Channel

 2 + 1 (external)

Record Length

 10M

Input Coupling

 DC, AC, and GND

Input Impedance

 1MΩ ± 2%, in parallel with 10pF ± 5pF

Channel Isolation

 50MHz : 100 : 1, 10MHz : 40 : 1

Max Input Voltage

 400V (PK - PK) (DC + AC, PK - PK)

DC Gain Accuracy

 ±3%

DC Accuracy

 average≥16 : ±(3% reading + 0.05 div) for Δ V

Probe Attenuation Factor

 1X, 10X, 100X, 1000X

LF Respond (AC, -3dB)

 ≥10Hz (at input, AC coupling, -3dB)

Sampling Rate / Relay Time Accuracy

 ±100ppm

Interpolation

 sin (x) / x

Interval ( Δ T) Accuracy

 (full bandwidth)

 Single:±(1 interval time + 100ppm × reading + 0.6ns);

 Average>16 : ±(1 interval time + 100ppm × reading + 0.4ns)

Vertical Resolution (A/D)

 8 bits (2 channels simultaneously)

Vertical Sensitivity

 2mV/div~10V/div

Trigger Type

 Edge, Pulse, Video, Slope, Alternate

Trigger Mode

 Auto, Normal, Single

Trigger Level

 ±6 divisions from screen center

Acquisition modes

 Sample, Peak Detect, and Average

Line / Field Frequency (video)

 NTSC, PAL and SECAM standard

Cursor Measurement

  Δ V, and Δ T between cursors

Automatic Measurement

 Vpp, Vavg, Vrms, Freq, Period, Vmax, Vmin, Vtop, Vbase, Overshoot, Preshoot, Rise  Time, Fall Time, Delay A→B, Delay A→B, +Width, -Width, +Duty, -Duty

Waveform Math

 +, -, ×, ÷, invert, FFT

Waveform Storage

 15 waveforms

Lissajous

 Figure

Bandwidth

 full bandwidth

Phase Difference

 ±3 degrees

Communication Interface

 USB, USB flash disk storage, Pass / Fail, LAN, VGA (optional), or RS232 (optional)

Cymometer

 available

Power Supply

 100V - 240V AC, 50/60Hz, CAT Ⅱ

Power Consumption

 < 24W

Fuse

 2A, T class, 250V

Battery (optional)

 7.4V, 8000mA

Dimension (W × H × D)

 340 × 155 × 70 (mm)

Weight (without package)

 1.80 kg











Vertical System

Vertical resolution (A/D) 8 bits Resolution (2 channels simultaneously )

Vertical sensitivity 2mV/div-10V/div(at input)

Displacement 10div(5mV-10v)

Analog Bandwidth 60MHz

Single bandwidth Full bandwidth

low frequency 5Hz

Rise time (at input, typical) 5.8ns

DC gain accuracy 3%

DC accuracy(Average) Average 16: (3% rdg + 0.05 div) for V



Measurement

Cursor measurement V and T between cursors

Automatic measurement Vpp, Vmax, Vmin, Vtop, Vbase, Vamp, Vavg, Vrms, Overshoot, Preshoot, Freq, Period, Rise Time,Fall Time, DelayA→B , DelayA→B , +Width, -Width, +Duty, -Duty

Waveform Math +, -, , / ,FFT

Waveform storage 15 waveforms

Lissajou’s figure Bandwidth Full bandwidth

Phase difference 3 degrees

Communication interface USB, support USB flash disk storage USB,SVGA,support USB flash disk storage,LAN



Trigger

Trigger level range 6 divisions from screen center

Trigger level accuracy 0.3div

Horizontal Trigger displacement Pre-trigger: 655 div,Post-trigger: 10 div

Trigger Holdoff range 100ns~10s

Edge trigger Rising,Falling

Pulse Trigger Trigger status Positive pulse: negative pulse

Pulse width 30ns~10s

Video Trigger NTSC,PAL,SECAM

Slope Treigger Trigger status Positive pulse: negative pulse

Time setting 30ns~10s

Alternate Trigger Edge, Pulse, Video, Slope



Waveform record

Waveform: quantity 1-1000

Interval time :1ms-1000s

Display 8" color LCD,TFT display,800x600 pixels,65535 colors

Power Supply 100-240 VAC RMS, 50/60Hz, CAT II

Power comsumption  18W

Dimension 340mm155mm70mm





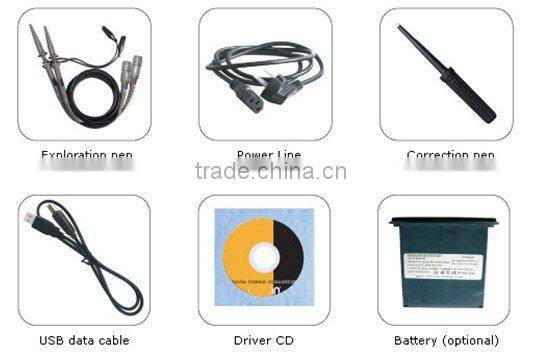

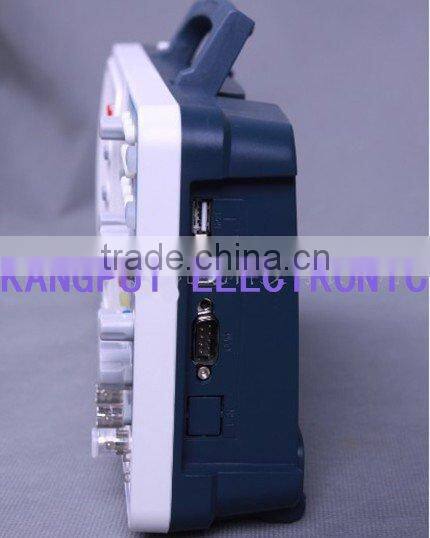

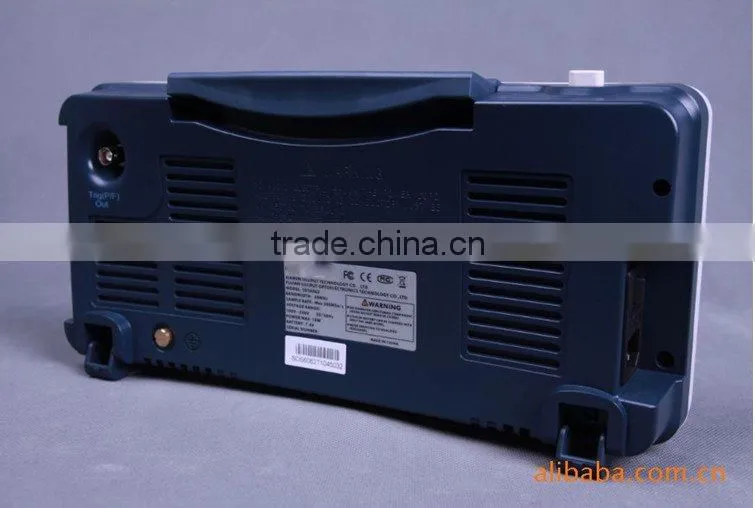

2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)







2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)



2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)



2015 NEW 8''SmartDS Series Dual Digital Storage Oscilloscope( (SDS6062)
