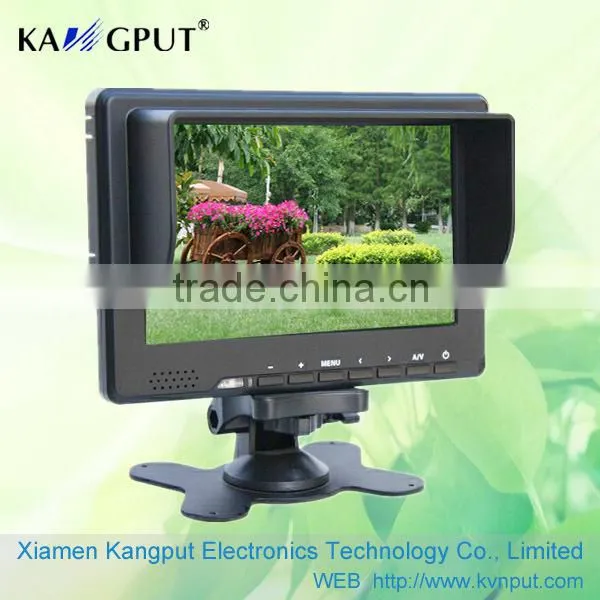

7inch LED Monitor (HDMI/ YPbPr/AV input)--- KPT6067HYA
High resolution: 800×480,High brightness: 450cd/m2,High contrast: 500:1,DV battery plates for power,Multi mounts methods & angles,Wide voltage: 6-24V,
Model |
KPT6067HYA |
Display Screen |
7" LED backlit |
Aspect Ratio |
16:9 |
Resolution |
800×480, support up to 1920×1080 |
Brightness |
450cd/m2 |
Contrast |
500:1 |
Viewing Angle |
140°/120°(H/V) |
Input Signal |
HDMI&YPbPr&Video*2&Audio |
Audio |
Speaker |
Input Voltage |
DC 6-24V(XLR) |
Current |
650mA |
Battery Plate |
F970 / QM91D / DU21 / LP-E6 |
Power Consumption |
≤8W |
Operating Temperature |
-20℃~60℃ |
Storage Temperature |
-30℃~70℃ |
Dimension(LWD) |
188×131×33mm <194×134×73mm(with cover)> |
Weight |
510g/568g(with cover) |
Optional: 3G-SDI input. (Model: KPT6067S)
Applications:
7 inch 16:9 LED field monitor with HDMI, component, and composite video inputs. Remote control.
Specific LCD Monitor, Uses for Full HD Video CameraSeizing much more clear world,Application for Full HD Video Camera in CCTV Monitoring and Making Movies,HDMI & YPbPr Input, to connect with Full HD Video Camera,LCD 16:9 Aspect Ratio, max 1920×1080 pixels,To connect with Full HD Video Camera, as sub-monitor when CCTV Monitoring or Making Movies,High Brightness/Contrast & Dizzy-proof monitor with sun shade, to see clearly under sunshine,Multi mounting methods to view under different angles,High capacity rechargeable Li-ion battery, make power cables free.
Accessories
Sun shade 1piece

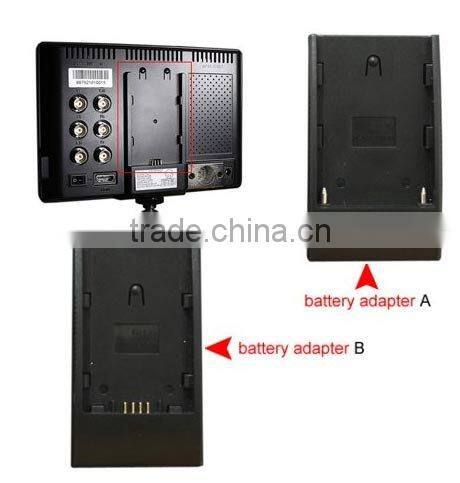

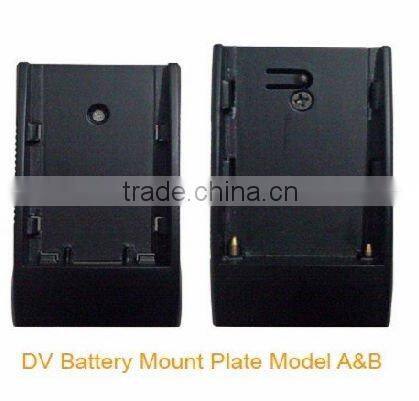

DV Battery Mount Plate A 1piece
DV Battery Mount Plate B 1piece
12V1.5A DC adapter 1piece
Remote control 1piece
Manual 1copy
Bracket 1piece
4200mAh/11.1V Li-ion battery (optional) 1piece

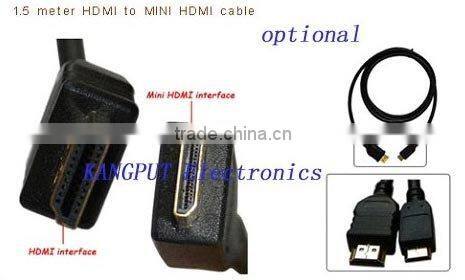

HDMI to mini HDMI cable (optional) 1piece
Shoe mount (for camera only) (optional) 1piece
