Model:6063 6063/P 6063/S 6063/O 6063/O/P

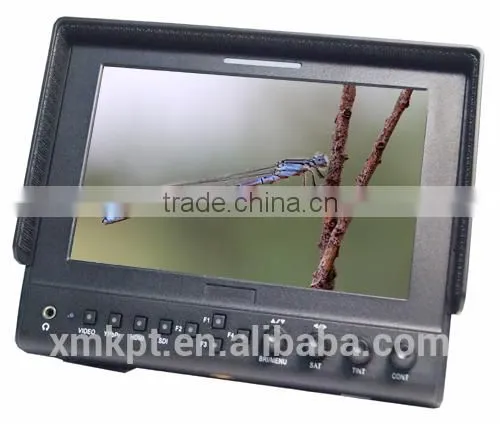

7" 3G-SDI Field Monitor with Advanced Functions for DSLR & Full HD Camcorde
6063 (HDMI input)
6063/P (HDMI input, Advanced Functions)
6063/S (3G-SDI input & output, HDMI input & output, Advanced Functions)
6063/O (HDMI input & output)
6063/O/P (HDMI input & output, Advanced Functions)
IPS panel wide viewing angles,
High resolution: 1280×800,
High brightness: 400cd/m*2,
High contrast: 800:1,
Faster response time,
Wide voltage: DC 7-24V,
TALLY interface with indicating light,
Firm & portable design,
POP-UP shortcut menu,
Suitcase make monitor watertight, crushproof and dust proof.
Advanced Functions: (P)
Peaking Filter, False Colors, Histogram, Exposure, Camera Mode, Center Marker, Pixel-to-Pixel, Color Bar, Screen Marker, Aspect Ratio, Check Field, Underscan/Overscan, Freeze Input, H/V Delay, 8x Zoom, Picture-in-Picture, Flip H/V, Backlit Control.
Panel Size: 7" LED backlit
Physical Resolution: 1280×800
Aspect Ratio: 16:9
Brightness: 400cd/m*2
Contrast: 800:1
Viewing Angle: 178°/ 178°(H/V) (IPS)
Input Signal: 3G-SDI, HDMI, YPbPr, Composite, Audio(L/R), TALLY
Output Signal: 3G-SDI, HDMI
Audio: Speaker×1(built-in), Ear Phone Slot×1(built-in)
Current: 900mA
Input Voltage: DC 7-24V(XLR Connector)
Battery Plate: V-mount, Anton Bauer mount, F-970, QM91D, DU21, LP-E6
Power Consumption: ≤11W
Operating Temperature: -20°C ~ 60°C
Storage Temperature: -30°C ~ 70°C
Dimension(LWD): 191.5×152×31/141mm (with cover)
Suitcase Dimension(LWD): 309×247×97.5mm
Weight: 760g / 938g (with cover) / 2160g (with suitcase)
1. Folding sun shade cover: 1piece
2. Shoe mount: 1piece
3. Battery plate (F-970, QM91D, DU21 or LP-E6): 2pieces
4. HDMI A/C cable: 1piece
5. DC 12V adapter: 1piece
6. Power and TALLY cable: 1piece

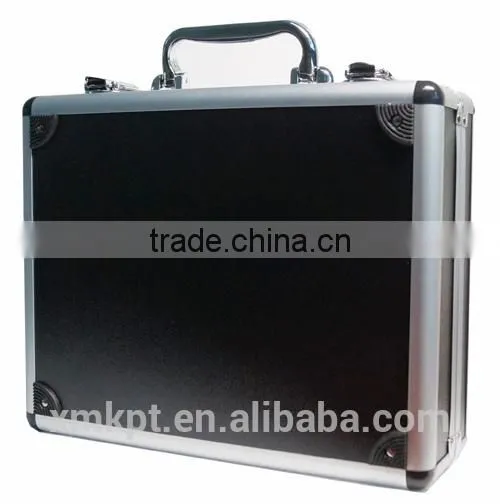

7. Suitcase: 1piece
8. Adaptor Panel: 1piece
9. Manual: 1copy
10. V-mount battery plate (optional): 1piece
11. Anton Bauer mount battery plate (optional): 1piece

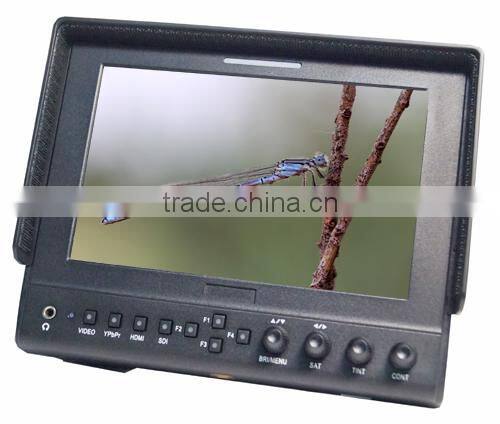

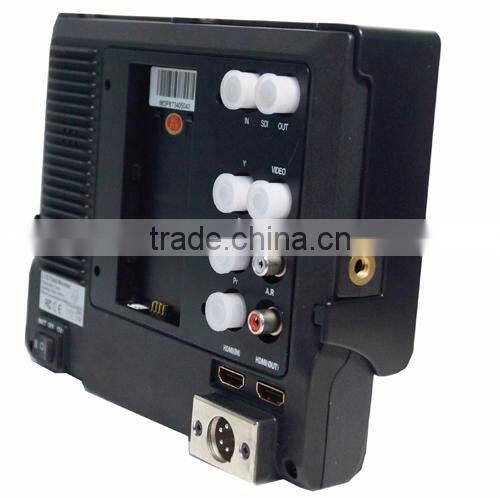

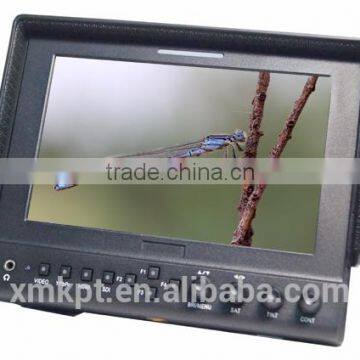

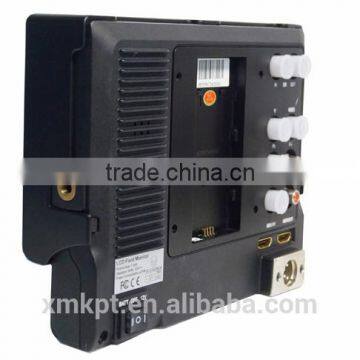

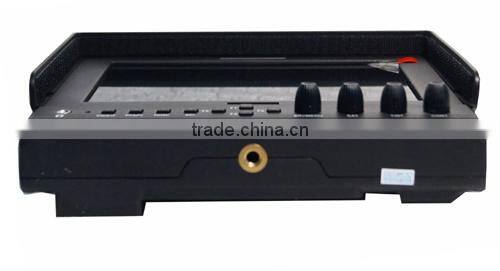

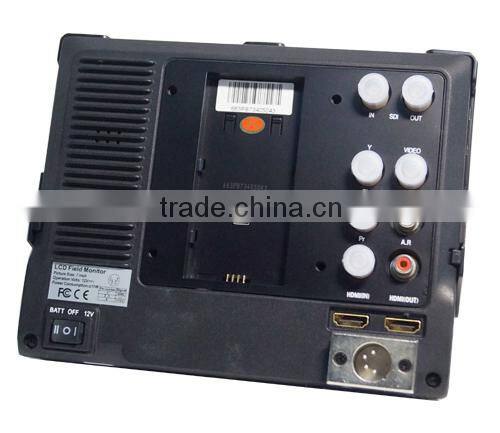

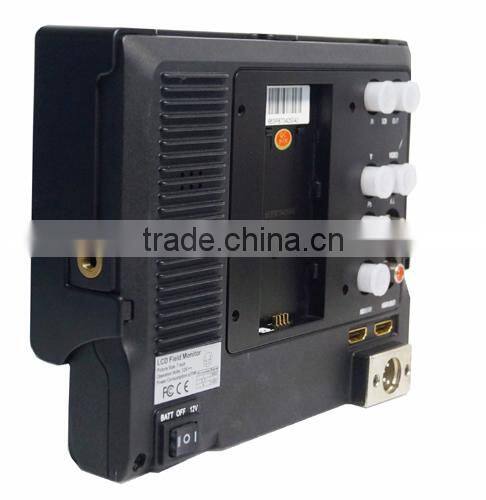

Product Show:
