Specifications

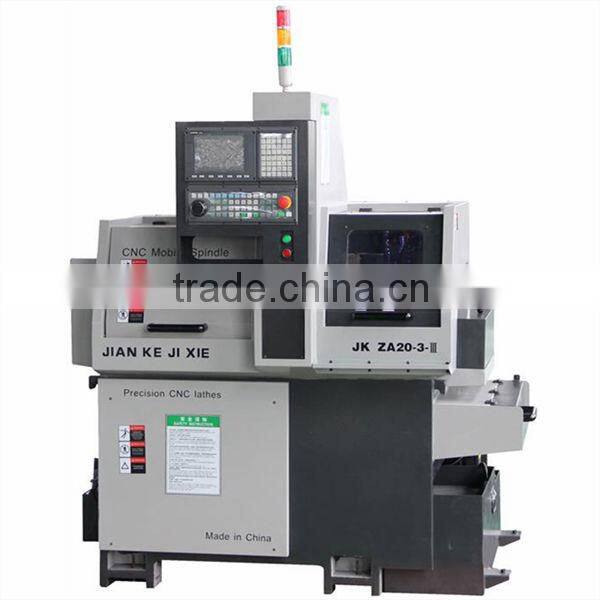

swiss cnc in machining1.turning and milling composite

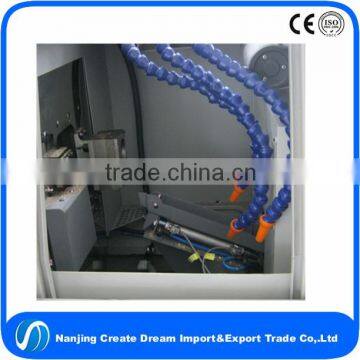

2.oil cooling system
3.side end milling positioning accuracy less
WHY CHOOSE SWISS TYPE CNC LATHE?
1. Minimum machining diameter below 1mm
2. Flexible tool arrangement design, option freely
3. Sub spindle boring tool holder, easily achieve changing power head tool
4. Parts after molding, auxiliary shaft discharge, conveyor belt out automatically
5. Drilling, milling and turning composite, milling logo, name and brand name clearly and precisely
6. High processing accuracy, stainless steel: 0.01mm, copper: 5μ
7. 24 hours uninterrupted electric power, high efficiency
8. Processing two ending faces of work pieces at one time, two work pieces can be done at the same time, more efficient
9. Matched with the feeding machine, compositing automatic production line, one person can operate many machines, saving labor ,more efficient
10. Absolute type operation, machine working when start, save time
WHY CHOOSE OUR SWISS TYPE CNC LATHE?
1.save materials for you:
Freely change bushless type spindle configuration and fixed guide bush, tail length has been reduced from 180mm to about 10mm
2.save electricity
Every hour power consumption is lower than 1KW
3.save place
Drilling, milling and turning composite, reducing area
4.high quality with low price
Same performance machine produced in Japan and Switzerland, the price is several times of ours, saving money
5.less rework

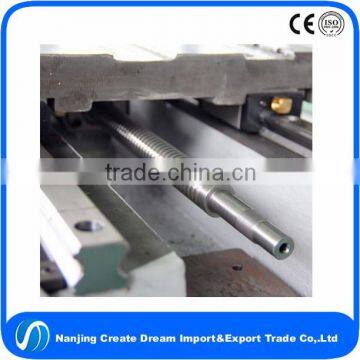

Adopt imported Japanese NSK bearing, THK guide roll, adopt 25 guide roll ,other manufactures in China adopt 20, without any repair about bearing and rolls during 8 years, high precision and long life
specifications of swiss type cnc lathe

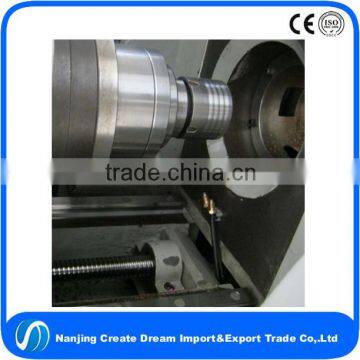

| Main shaft | Through-hole dia. of main shaft | 21 |
| Max machining bar(mm) | 20 | |
| Chuck model of multispindle machines | TSUGAMI S20 | |
| Height from center of main shaft to the floor(mm) | 975 | |
| Unlimited graduation of main shaft | Support | |

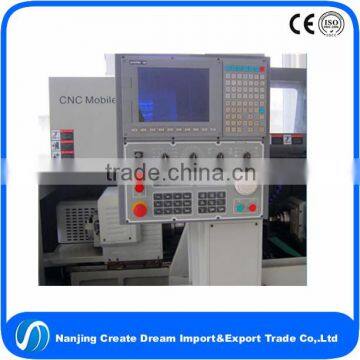

| System | Operating system of multispindle machines | SYNTEC 10B |
| Main shaft motor | 3.0KW | |
| Rotary speed of foundation base(rpm) | 1500 | |
| Max rotary speed of cnc machinery | 8000 | |
| Servo motor power of X/Y/Z/x2/Z2 shaft(KW) | 0.75 | |
| X/Z shaft | Travel of shaft X(mm) | 40 |
| Travel of shaft Z(mm) | 180 | |
| X/Y/Z/x2/Z2 rapid feeding speed(G00) | 24m/min | |
| accuracy | X/Y/Z//x2/Z2 repeated accuracy(mm) | 0.004 |
| X/Y/Z/X2/Z2 positioning accuracy(mm) | 0.005 | |
| Others | O.D.Tool number of multispindle machines | 5 |
| I.D. Tool number of multispindle machines | 4 | |
| end milling tool number | 4 | |
| Sub-spindle End milling tool number | 3 | |
| O.D.Spec.of tool | ER12 | |
| I.D.Spec.of tool of multispindle machines | ER11 | |
| Side milling spec.of tool | ER11*2/ER16*2 | |
| End milling psec,of tool | ER11*3 | |
| Outline dimension(L*W*H) | 1700mm*1210mm*1800mm | |
| Total power(KW) | 6 | |
| Net weight(KG) of multispindle machines | About 1260 |
Nanjing Create Dream Import & Export Trade Co., Ltd. stands for Knowledge, Support, and Integrity. As a family operated company, we pride ourselves in offering the most complete machine tool package to our customers. As you know, that never just involves the machine tool, but also the support, training, and other value adds that are associated with the machine tool purchase.
WHY CHOOSE OUR COMPANY?
1. Our manufacture was established in 1993, having 8 years history of producing Swiss type CNC machines, we focus on producing Swiss type CNC lathes now, much more professional
2. More than 30000 squares meters plant ,Advanced processing equipment and complete test means.
3. 20 offices and service agencies around China, Participate in domestic exhibition dozens of times every year, be widely known in China
4.We are an creativity company:
A.8 items invention, 26 items utility new patents consolidate, state patent office legal protection
B. Processing six angles on the face of medical screws once, and it is our patent product
C. Absolute type operation, machine working when start, save time
D. Developing the bushless type spindle configurationfirst in China mainland
E. Products are updated every half a year.
F. Oil cooling electric spindle, comprehensive cooling during high speed flexible tool arrangement design, option freely
WHY CHOOSE OUR SERVICE GROUP?
1. Free training, provide free programming
2. Non-human factors, one year warranty.
3. Sales staff, 24 hours serves for you
