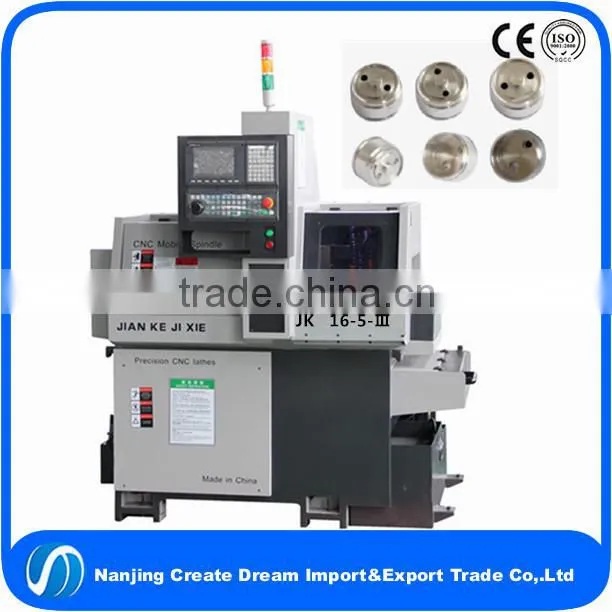

Help CenterTurning and Milling Composite Lathe Making Auto Engine Parts
Related Products
-
China Swiss Type Cnc Lathe Machine Making Electrical Wiring AccessoriesUS$ 55,000 - 66,000MOQ: 1 Set -
Sliding Head 5 Axis Double Shaft Machine for Medical ScrewsUS$ 55,000 - 66,000MOQ: 1 Set
-
High Precision in a Basic 3-axis MachineUS$ 33,334 - 41,666MOQ: 1 Set
-
Cnc Machine Video ZA20-5US$ 55,000 - 66,000MOQ: 1 Set
-
Cnc Machine Operator ZA20-5US$ 55,000 - 66,000MOQ: 1 Set

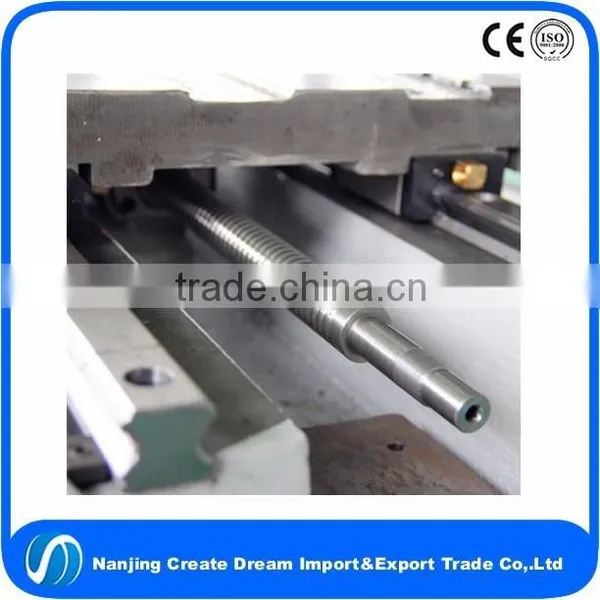

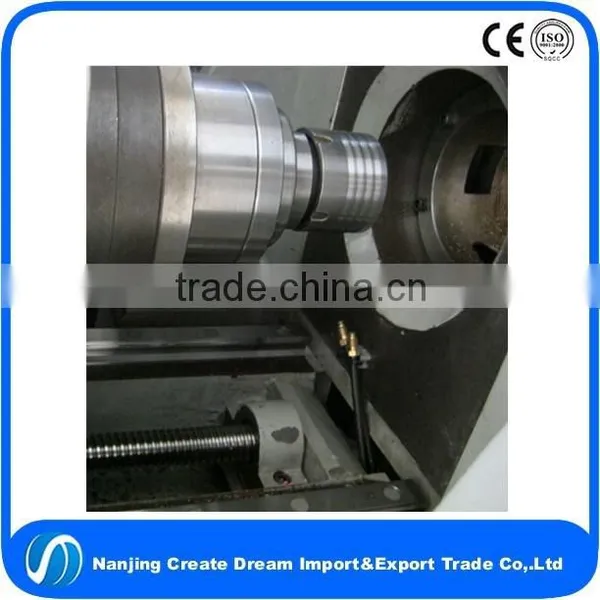

High precision ball screw and linear guide
turning machine X/Y/Z shaft adopts THK ball screw from MPI,the two Motor fixed ends adopts NSK TAC design, thermal displacement of machine combined bearing support, it uses prestreching is reduced to minimum.

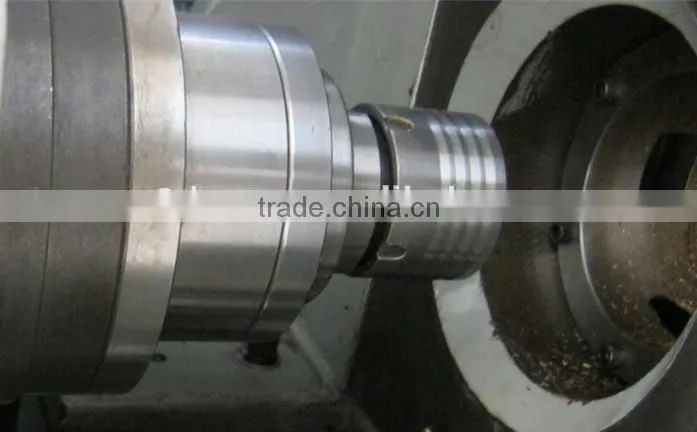

High precision and rigidity internal-mounted electric spindle

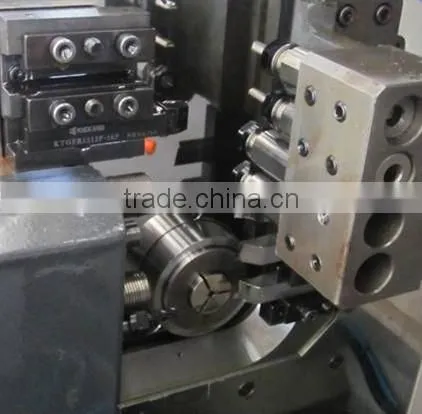

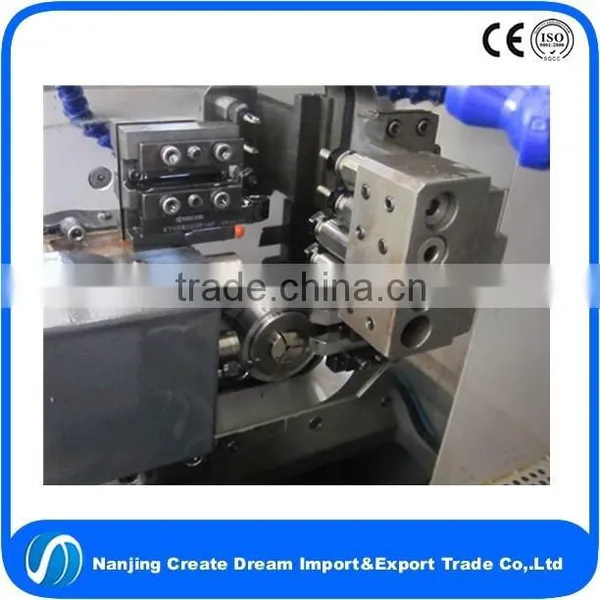

No guide bush design
turning machine adopts no guide bush design. Unique no guide bush design can make the walk schemer endemic, long tail materials are fundamentally solved, general walked the length of the tail material sketchy 120mm-180mm left and right, but without using a guide set design , below and walked the length of the tail materialcan make the tail after feeding control in 10mm sword quite. Because it cannot use guide set of processing, walk schemer due to materials bending appear tool diameter elliptic phenomenon get greatly improved, and make themachine roundness and walk knife machine quite.In processed when the machine farmhand heavily thing also can use a fixed guide covers and activities guided sets.

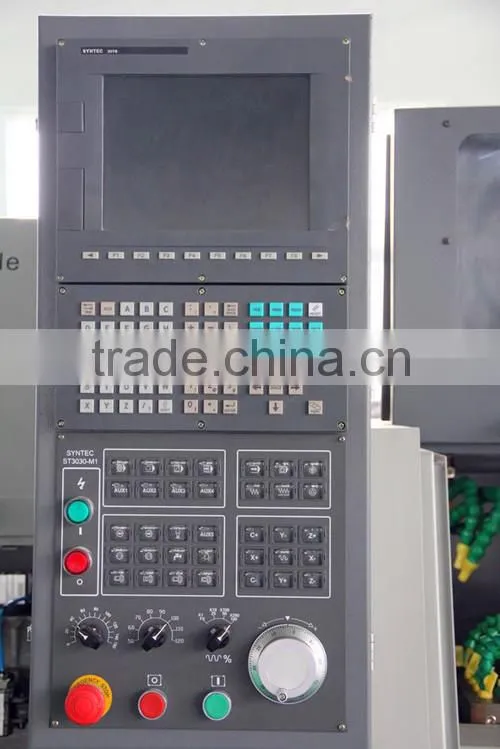

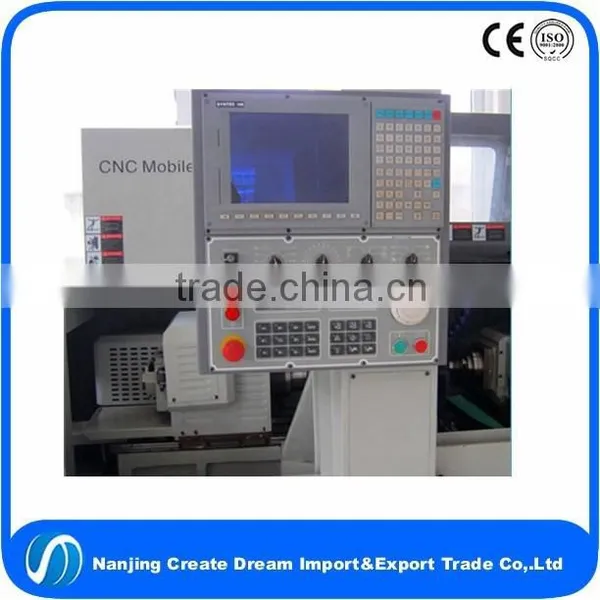

syntec controller
turning machine adopts SYNTEC 10B controller from Taiwan ,with its high stability, high precision and strong operating function to provide essential to guarantee for machining high quality work-pieces, with 16-shaft 4-linkage line, unlimited Indexing main shaft, strong network connections , hand wheel simulation , etc.

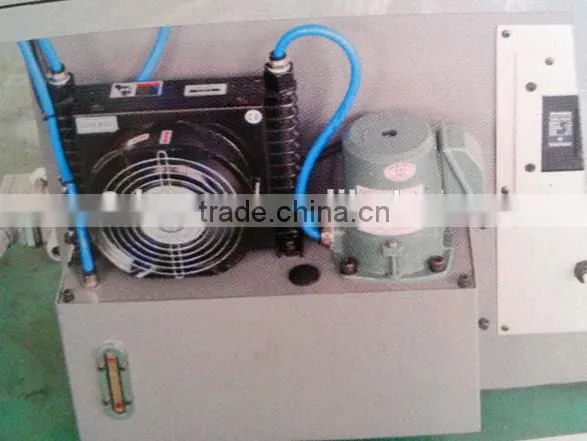

Oil cooling system of main spindle
turning machine adopts high quality motor and cooling oil,extermal connected with strong cooling module and cooling fan to guarantee safty,high efficiency,mute,to promise a steady and perfect working environment for the electric main spindle.

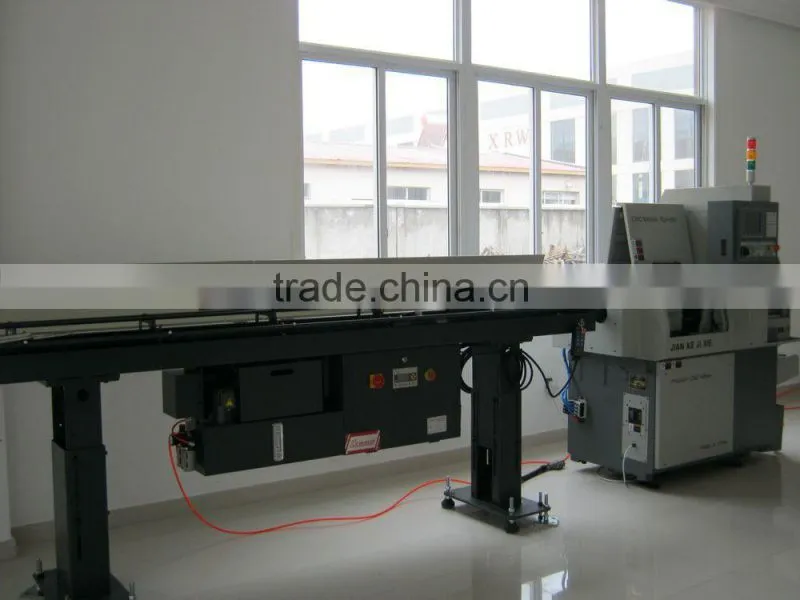

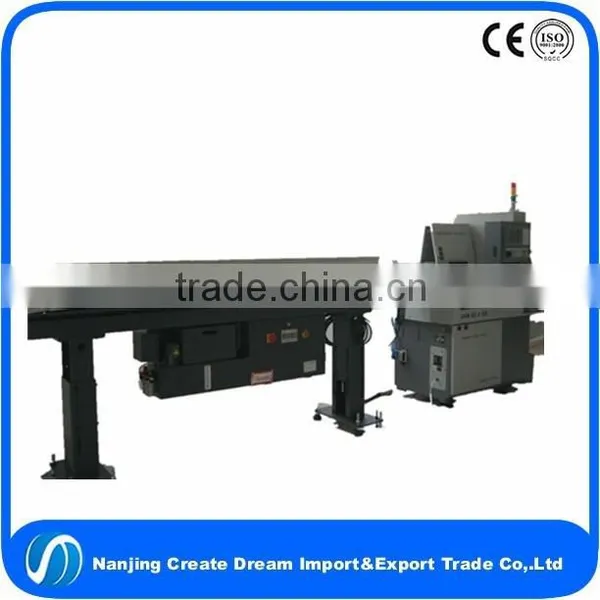

Long work piece rotary feed device
turning machine can reduce the beat of the slender,the improvement of the machining quality,because use PVC engineering plastic seat base,greatly seat base,greatly reducing the surface Brush,can maaximizethe protection of the surface finish.
specifications of turning machine
| Main shaft of turning machine | Through-hole dia. of main shaft | 17 |
| Max machining bar(mm) | 16 | |
| Chuck model of numerical control machine | TSUGAMI S20 | |
| Height from center of main shaft to the floor(mm) | 975 | |
| Unlimited graduation of main shaft | Support | |
| System of turning machine | Operating system | SYNTEC 10B |
| Main shaft motor | 3.0KW | |
| Rotary speed of foundation base(rpm) | 1500 | |
| Max rotary speed | 8000 | |
| Servo motor power of X/Y/Z/x2/Z2 shaft(KW) | 0.75 | |
| X/Z shaft of turning machine | Travel of shaft X(mm) | 40 |
| Travel of shaft Z(mm) | 180 | |
| X/Y/Z/x2/Z2 rapid feeding speed(G00) | 24m/min | |
| accuracy of turning machine | X/Y/Z//x2/Z2 repeated accuracy(mm) | 0.004 |
| X/Y/Z/X2/Z2 positioning accuracy(mm) | 0.005 | |
| Others of turning machine | O.D.Tool number | 5 |
| I.D. Tool number | 5+4 | |
| Side milling tool number | 5 | |
| Sub-spindle End milling tool number | ||
| O.D.Spec.of tool | ER12 | |
| I.D.Spec.of tool | ER11*9 | |
| Side milling spec.of tool | ER11*3/ER16*2 | |
| Sub-spindle End milling psec,of tool | ||
| Outline dimension(L*W*H) | 21100mm*1510mm*1900mm | |
| Total power(KW) | 12 | |
| Net weight(KG) | About 1900 |

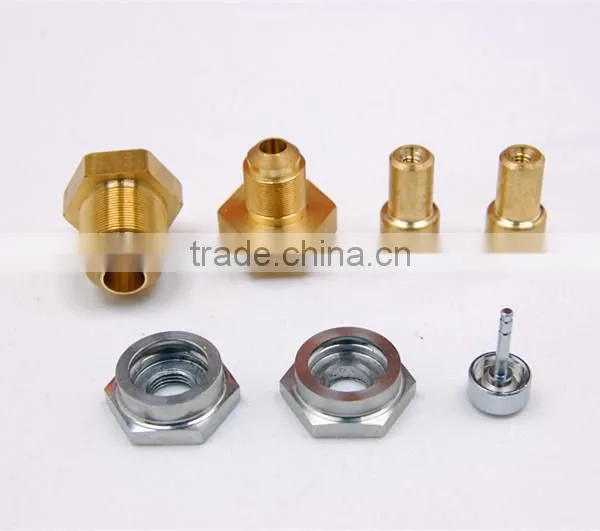

samples of turning machine
Established in 2014, Nanjing Create Dream Import & Export Trade Co., Ltd. is a trader specialized in the research, development and production of CNC lathe, fixings systems and communication equipments .We are located in Nanjing, with convenient transportation access. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communications industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
cnc lathe sales department was established to be responsible for sales of machine cnc machine . We have introduced of Japanese technology and advanced management idea. Newly purchased equipment includes grinding machine, gantry type milling machine, coordinate measuring machine, laser interferometer and precision processing and testing equipment. We employee industry elites to develop the no guide sleeve structure with independent property right. At present, we have developed Swiss type single shaft CNC lathe, Swiss type single shaft dual powder head CNC lathe, double-main-shaft turning lathe & 8-axis machining center, offering a broad selection for customers and meeting different processing requirements. Our China cnc lathe machine was widely applied in various industries which require high precision, multi-batch and complex shape, including aerospace, military industry, auto, motorcycles, communications, refrigeration, optics, appliances, measuring tools, meters, electronics, office equipment, etc. In the future, we will provide more high-performance equipment as well as attentive services to make your business successful!
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us .We are looking forward to forming successful business relationships with new clients around the world in the near future.
