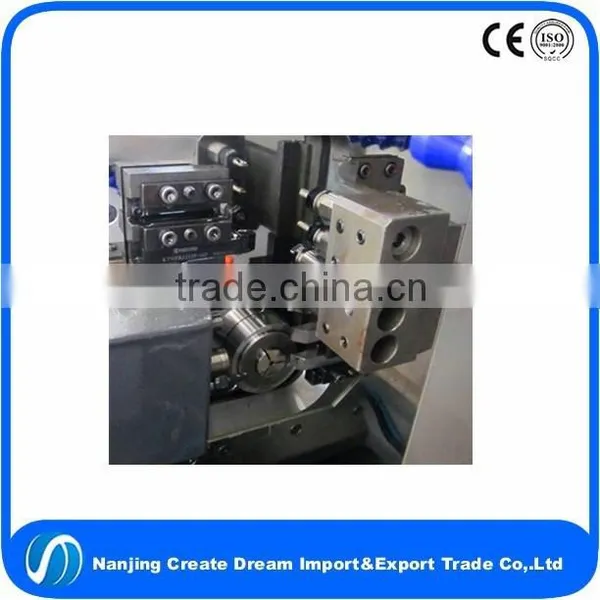

sliding head 5 axis double shaft machine for medical screws
- 15 Set / Sets per Month
- shanghai
- T/T
Product Details
Condition: | New | Type: | Turning Center | CNC or Not: | CNC |
Automatic Grade: | Automatic | Max. Swing Diameter: | 20mm | Place of Origin: | Jiangsu, China |
Brand Name: | jianke | Model Number: | 20-5 | Voltage: | 380V |
Power(W): | 12KW | Dimension(L*W*H): | 2110*1510*1900 | Weight: | 1900kg |
Certification: | iso9001 | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

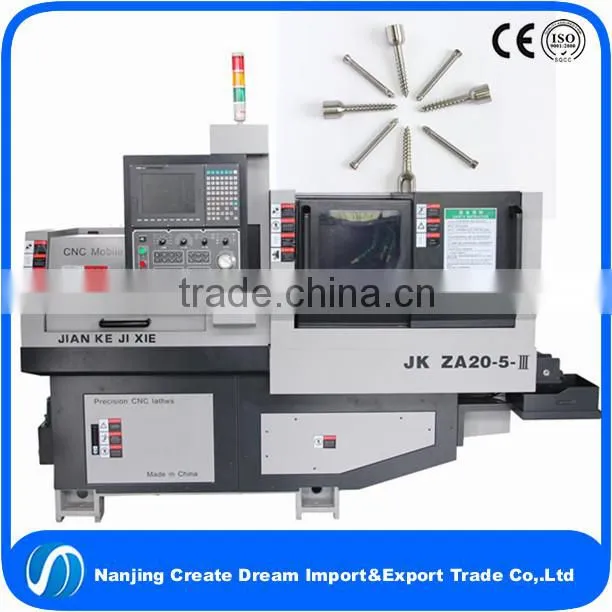

sliding head 5 axis double shaft machine for medical screws
1 .CNC sliding head double-main-shaft lathe
2.Adopt imported Japanese NSK bearing,THK guide roll,high precision and long life
3.Freely change no guide bush and fixed guide bush,save material
4.24 hours uninterrupted electric power,high efficiency
5.8 items invention ,26 items utility new patents consolidate ,state patent office legal protection
6. Oil cooling electric spindle, comprehensive cooling during high speed flexible tool arrangement design, option freely
7. Absolute type operation, machine working when start, save time
8. Flexible tool arrangement design, option freely
9. Sub spindle boring tool holder, easily achieve changing power head tool
10. With elegant appearance, innovative modeling, continuous improving
11. Parts after molding, auxiliary shaft discharge, conveyor belt out automatically
12. CNC sliding head double-main-shaft lathe
13. Driling, milling and turning composite, milling logo, name and brand name clearly and precisely
14. Processing two ending faces of work pieces at one time, two work pieces can be done at the same time, more efficient
specifications of sliding head 5 axis double shaft machine for medical screws
Main shaft of sliding head 5 axis double shaft machine for medical screws | Through-hole dia. of main shaft | 21 |
Max machining bar(mm) | 20 | |
Chuck model of cnc lathe machining | TSUGAMI S20 | |
Height from center of main shaft to the floor(mm) | 975 | |
Unlimited graduation of main shaft | Support | |
System of sliding head 5 axis double shaft machine for medical screws | Operating system | SYNTEC 10B |
Main shaft motor | 3.0KW | |
Rotary speed of foundation base(rpm) | 1500 | |
Max rotary speed | 8000 | |
Servo motor power of X/Y/Z/x2/Z2 shaft(KW) | 0.75 | |
X/Z shaft of sliding head 5 axis double shaft machine for medical screws | Travel of shaft X(mm) | 40 |
Travel of shaft Z(mm) | 180 | |
X/Y/Z/x2/Z2 rapid feeding speed(G00) | 24m/min | |
accuracy of sliding head 5 axis double shaft machine for medical screws | X/Y/Z//x2/Z2 repeated accuracy(mm) | 0.004 |
X/Y/Z/X2/Z2 positioning accuracy(mm) | 0.005 | |
Others of sliding head 5 axis double shaft machine for medical screws | O.D.Tool number | 5 |
I.D. Tool number | 5+4 | |
Side milling tool number | 5 | |
Sub-spindle End milling tool number | ||
O.D.Spec.of tool of cnc lathe machining | ER12 | |
I.D.Spec.of tool of cnc lathe machining | ER11*9 | |
Side milling spec.of tool | ER11*3/ER16*2 | |
Sub-spindle End milling psec,of tool | ||
Outline dimension(L*W*H) | 2110mm*1510mm*1900mm | |
Total power(KW) | 12 | |
Net weight(KG) of cnc lathe machining | About 1900 |

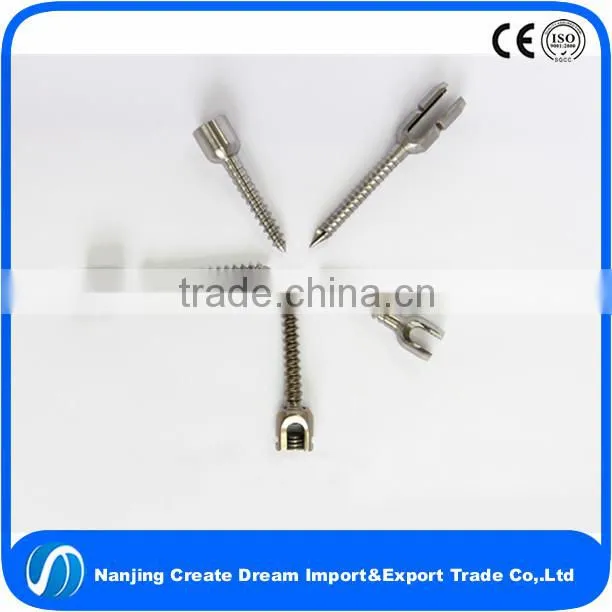

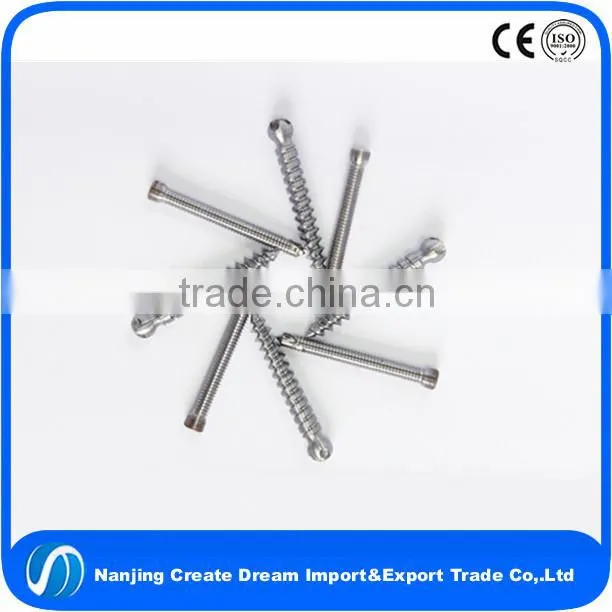

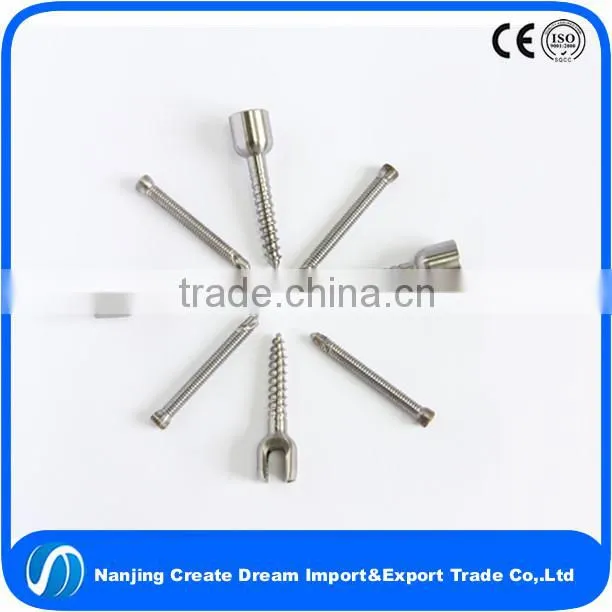

samples of swiss type metal machining for electric parts
Established in 2014, Nanjing Create Dream Import & Export Trade Co., Ltd. is a trader specialized in the research, development and production of CNC lathe, fixings systems and communication equipments .We are located in Nanjing, with convenient transportation access. With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in communications industry and other industries. Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs. All of our products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
CNC machine sales department was established to be responsible for sales of cnc lathe machining . We have introduced of Japanese technology and advanced management idea. Newly purchased equipment includes grinding machine, gantry type milling machine, coordinate measuring machine, laser interferometer and precision processing and testing equipment. We employee industry elites to develop the no guide sleeve structure with independent property right. At present, we have developed Swiss type single shaft CNC lathe, Swiss type single shaft dual powder head CNC lathe, double-main-shaft turning lathe & 8-axis machining center, offering a broad selection for customers and meeting different processing requirements. Our cnc lathe machining was widely applied in various industries which require high precision, multi-batch and complex shape, including aerospace, military industry, auto, motorcycles, communications, refrigeration, optics, appliances, measuring tools, meters, electronics, office equipment, etc. In the future, we will provide more high-performance equipment as well as attentive services to make your business successful!
If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us .We are looking forward to forming successful business relationships with new clients around the world in the near future.
