Help CenterInfrared Lamp
Related Products
Specifications
infrared lamp1, sensor lamp
2, pir sensor
3, infrared lamp outdoor
4, dark infrared lamp
infrared lamp lamp
Working principle

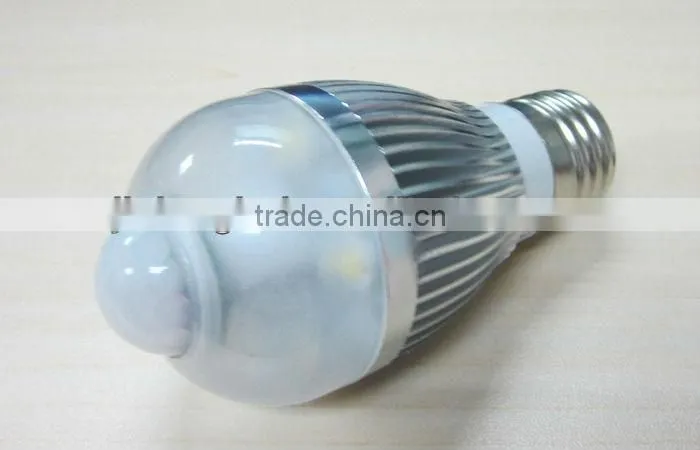

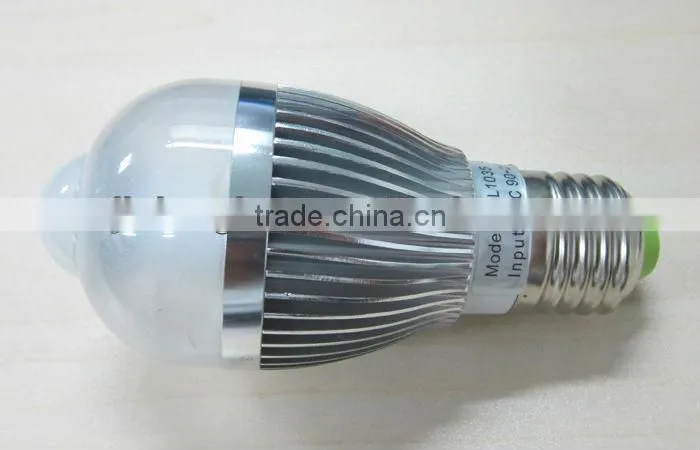

Infrared LED Bulbs have special sensor detecting brightness surrounded and body temperature,it will be bright for about 60 seconds when people come near within 5 meters on condition that the illumination outside is under 10LX,this function closes automatically when the illumination is over 10LUX, totally not affected by noise or surrounding factors.
Features and Functions
1, Power consumption of LED Bulbs is just 20% of the traditional incandescent lamp. The life span of LED Bulbs is over 10 times longer than the fluorescent lamp. Easy to install,use. Safe and stable. Intelligent,energy saving,environmental protection.
2, Die casting aluminum lamp body. To the maximum extent,successfully solving the heat sink trouble by air back-flow with increasing more fins. Cover of LED Bulbs is made of PC and nanometer coolant,light transmittance over 85%,light remitting evenly.
3, Clients can choose power,color temperature &lamp base based on the surroundings accordingly.
4, Widely used in corridor,washing room,storeroom, balcony,hallway,etc.
Technical Data
| Item NO. | BS112-5W | BS112-6W |
| PC cover | ||
| Operation Voltage | 100-240V | |
| Rated Power | 5W (LED) | 6W (LED) |
| Brightness(LM) | 380~430 | 480~530 |
| Color temperature | ||
| PF | 0.85 | |
| CRI | 80 | |
| Life span(H) | 20000 | |
| Sensor distance(M) | diameter 5m~7m | |
| Sensor angle(degree) | 360 | |
| Lighting time | 1min | |
| Operating temperature | -20°~ +45° | |
| Brightness sensitivity(LUX) | 20lux bulb will turn on | |
| Dimension(mm) | 60* 129 | |
Spectrum & Distribution Curve(3000-3500K)
