Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > POE 3 Megapixel WDR IP Dome Camera

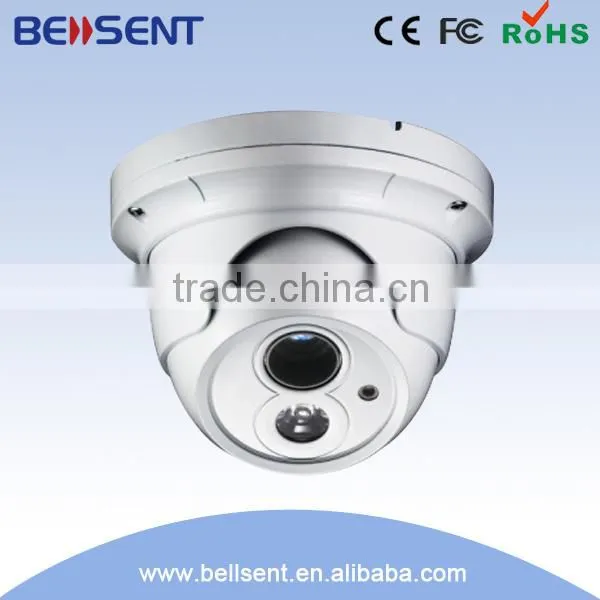

POE 3 Megapixel WDR IP Dome Camera

Name: POE 3 Megapixel WDR IP Dome Camera
Brand: Bellsent
SKU: 100919443
Availability: InStock

POE 3 Megapixel WDR IP Dome Camera thumbnail-1

POE 3 Megapixel WDR IP Dome Camera photo-1

Negotiable MOQ: 1 Piece (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Bellsent

Model Number:

BE-MPC2230IR

Contact Supplier Request Quote Chat Now

Shenzhen Bellsent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Bellsent

Model Number BE-MPC2230IR

Type Digital Camera

Style Dome Camera

Sensor Other, CMOS, Megapixel CMOS sensor, BT656 format interface

Technology Infrared

Special Features Waterproof / Weatherproof

Specifications

H.264/ MPEG4/ MJPEG
Megapixel HD CMOS
3rd generation IR night vision
remote control by phone
Support PoE and Onvif

Features

High profile H.264 coding algorithm, three streams H.264/ MPEG-4/MJPEG

Megapixel high definition CMOS, achieves 720p/1080p

Intelligent IR-Cut and the 3rd generation infrared night vision technology, IR distance 20m.

remote view, record and control by 10 kinds of mobile phone;

High effective audio coding engine support two-ways voice intercom and broadcast;

Support hardware motion detection digital input/ output and external alarm sensor, event notification by email, FTP upload;

Support Onvif and PSIA international norm, provide a convenient software platform access and integration capabilities.

Support multiple password protection, IP address filter, HTTPS encryption or 802.1x authentification;

Support PoE (IEEE 802.3af)

With the aluminum-alloy metal housing, good heat reduction ensures IP66 waterproof standard.

Support network remote upgrade, easy maintenance

Specifications
Video & Audio
Video compression	H.264/ MPEG4/ MJPEG
Video Bitrate	32k~4Mbps(H.264) 32k~8Mbps(MPEG-4)
Image size & Frame rate	720p(1280x 720)/60fps (2048x 1536) 12.5fps 1080P(1920x 1080) 25fps QUXGA(800x 600)/120fps
Sensor	Megapixel CMOS sensor BT656 format interface
Min illumination (Lux)	0.05Lux @(IR ON)
Electronic Shutter	1/25~1/10,000 sec
Lens	CS/M12/M14 fixed lens(4/6/8mm)
Day/nigiht	intelligent IR CUT filters
Image Setting	Saturation, brightness, contrast can be adjusted by client software or IE interface

Audio Compression	G.711
Audio Bitrate	64Kbps
Audio Input	1ch Mic input, full directional, frequency response 50~16000Hz,SNR>60dB
Audio Output	liner output (liner level, resistance 600Ω)
Network
Network protocol	TCP/IP, UDP, RTP/RTCP, RTSP, HTTP, SMTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, UPNP(SNMP,HTTPS,SIP optional)
Network port	10/100Mbps auto adaptive Ethernet port
Network real time transmission	Support
Static IP	Support
Dynamic IP Address	Support
Webpage setup parameter, realtime browse	Support
DDNS	Support
Auto connection after network interrupt	Support
Recording
SD card storage	Support max 32GB
Pre-recording	Support
Recording time, timing recording, trigger recording	Support
Playback	Video and audio record synchronous playback, fast, backward, pause
Alarm
Photoelectric isolation trigger output	1ch (add by custom) 12VDC, low level effective
Alarm output	1ch (add by custom), current,high level effective
Alarm output and input	On/off
Tigger alarm output, support time setup for alarm output	Support
Alarm linkage E-mail alert	Support
Alarm linkage FTP upload and screenshot	Support
Alarm Log	Support
Continuous alarm time setting	Support
Alarm Sensibility	Support
Motion detection	Support
Manual time setup	Support
Time synchronization with computer and server	Support
Software online upgrade	Support
Event Log	Support
Factory reset by one button	Support
working Environment
