Home > Security & Protection > Surveillance, Control & Protection > CCTV Camera > 5 Megapixel PoE IP Dome Camera

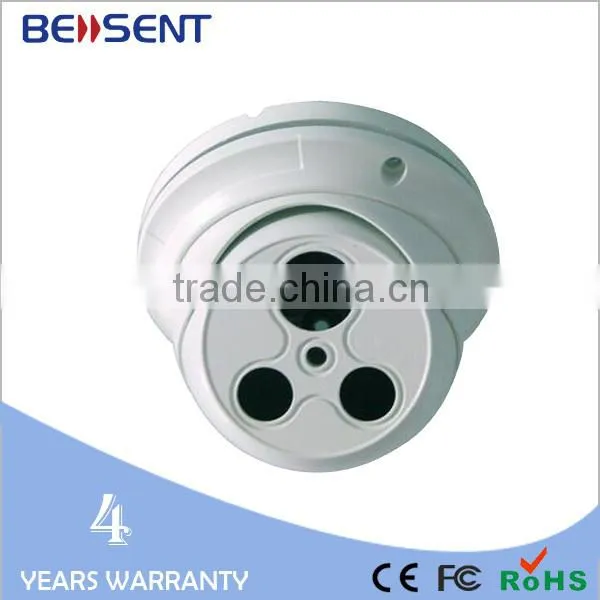

5 Megapixel PoE IP Dome Camera

Name: 5 Megapixel PoE IP Dome Camera
Brand: Bellsent
SKU: 100919485

5 Megapixel PoE IP Dome Camera thumbnail-1

US$ 100 - 200 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Guangdong, China

Brand Name:

Bellsent

Model Number:

BE-MPC2350IR

Contact Supplier Request Quote Chat Now

Shenzhen Bellsent Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Guangdong, China

Brand Name Bellsent

Model Number BE-MPC2350IR

Type Digital Camera

Style Box Camera

Sensor CMOS

Technology NetWork

Special Features Other, Waterproof IP66

Specifications

-12V/2A or PoE
-1080P or 720p
-infrared day night
-5 Megapixels IP camera
-32GB SD card storage

BE-MPC2350IR is an innovative high-definition network camera, coupled with 5 megapixles CMOS sensor, high-performance multimedia processor, intelligent infrared array LED

Features:

-Based on the high profile H.264 coding algorithm, support three streams H.264/ MPEG-4/MJPEG at the same time

-Ultra low light megapixel high definition CMOS, achieves 720p/1080p

-Intelligent IR-Cut, 3^rd generation infrared night vision technology ensure full day monitoring

-Support remote viewing, recording and control by 10 kinds of mobile phone;

-High effective audio coding engine support two-ways voice intercom and broadcast;

-Support hardware motion detection digital input/ output and external alarm sensor, event notification by email, FTP upload;

-Support Onvif and PSIA international norm, provide a convenient software platform access and integration capabilities.

-Support multiple password protection, IP address filter, HTTPS encryption or 802.1x authentification;

-Support PoE (IEEE 802.3af)

- IP66 waterproof standard

- Support network remote upgrade, easy maintenance

Specifications:

Specifications
Video &Audio
Video compression	H.264/ MPEG4/ MJPEG, multiple streams
Video Bitrate	32k~4Mbps(H.264) 32k~8Mbps(MPEG-4)
Image size & Frame rate	720p(1280×720)/60fps (2048×1536) 12.5fps 1080P(1920×1080) 25fps QUXGA(800×600)/120fps
Image Sensor	Megapixel CMOS sensor, BT656 format interface
Min illumination (Lux)	0.05Lux@(IR ON)
Electronic Shutter	1/25~1/10,000 sec
Lens	CS/M12/M14 fixed lens (4/6/8mm)
Day/nigiht	intelligent IR CUT filters
Image setup	Saturation, brightness, contrast can be adjusted by client software or IE interface
Audio compression	G.711
Audio Bitrate	64Kbps
Audio Input	1ch Mic input, full directional, frequency response 50~16000Hz,SNR>60dB
Audio Output	liner output (liner level, resistance 600Ω)
Network
Network protocol	TCP/IP, UDP, RTP/RTCP, RTSP, HTTP, SMTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE,UPNP(SNMP,HTTPS,SIP optional)
Network port	10/100Mbps auto adaptive Ethernet port
Network real time transmission	Support
Static IP	Support
Dynamic IP address	Support
Webpage setup parameter, realtime browse	Support
DDNS	Support
Auto connection after network interrupt	Support
Recording
SD card storage	Support max 32GB
Pre-recording	Support
Recording time, timing recording, trigger recording	Support
Playback	Video and audio record synchronous playback, fast, backward, pause
Alarm
Photoelectric isolation trigger output	1ch (add by custom) 12VDC, low level effective
Photoelectric isolation trigger output	1ch (add by custom), current, high level effective
Alarm output and input	On/off
Tigger alarm output, support time setup for alarm output	Support
Alarm linkage E-mail alert	Support
Alarm linkage FTP upload and screenshot	Support
Alarm Log	Support
Continuous alarm time setting	Support
Alarm Sensibility	Support
Motion detection	Support
Manual time setup	Support
Time synchronization with computer and server	Support
Software online upgrade	Support
Event Log	Support
Factory reset by one button	Support
Working Environment
Working temperature/ humidity	-10°C ~ 60°C humidity: max 90% RH (non condensation)
Power Voltage	12V+/-10%/2A, IEEE 802.3af (optional)
Infrared standard	3^rd generation array LED, distance can be 20m
Power Consumption	7W
Dimension	134.2mm(Φ)*94.2mm(H)
