Specifications
1ch video analytics server,regional entance detection,
tripwire crossing detection,
fence trespassing detection.

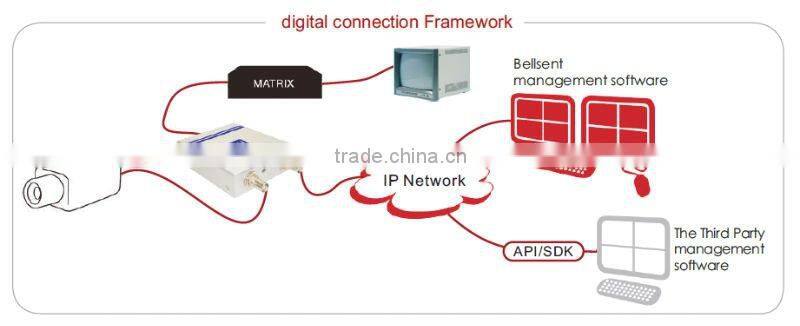

The BE-IVS 1 is an video analytics server,support intrusion detection.It can connect any CCTV surveillance camera and automatically detect intruders, burglars, and other threats,

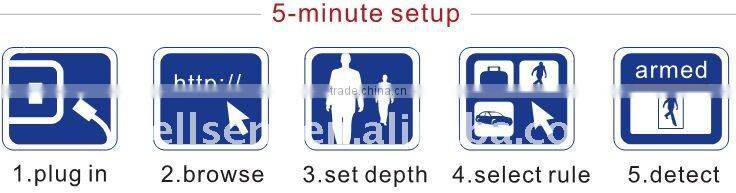

1.Easy to install, sets up in minutes.
2.Single channel video encoder, embedded with Bellsent's DSP-based field-proven analytics,
3.Converts any analog CCTV surveillance camera (B/W, color, thermal, and infrared) to networked MPEG-4 CIF-quality video, streaming at full frame rate.
4.Detection rate 99%,false alarm rate is less 1/day.
5.Detection types:Regional Entrance Detection,Tripwire Crossing Detection;Fence Trespassing Detection;Anomaly Detection.
full Specifications:
Channels | |
Number of Intelligent Video Analysis Channels |
1 |
Analog Video Input | |
TV Standard |
Composite 1Vp-p – NTSC or PAL |
Physical Connector |
1x BNC 75Ω |
Analog Video Output | |
TV Standard |
Composite 1Vp-p – NTSC or PAL |
Physical Connector |
1x BNC 75Ω |
Digital Video Output | |
IP Video Streaming |
MPEG-4 SP, M-JPEG |
Max Resolution per Channel |
CIF |
Frame Rate |
Up to Full Frame Rate |
Bit Rate |
CBR (128Kbps – 4Mbps), VBR |
Network | |
Ethernet (IEEE 802.3/802.3U) |
1x Ethernet RJ-45 Interface |
Services and Protocols |
TCP/IP, UDP/IP, HTTP, SMTP, DHCP, DNS, SNTP |
Video Streaming |
RTP/RTSP |
Alarms/Commands |
TCP/IP |
I/O Interface | |
IN - Alarm Input |
1 x Alarm inputs (from Dry Contacts) |
OUT - Relay Output |
1x Relay Output (rated load 1A@30VDC) |
Power Source | |
Voltage |
12VDC |
Power over Ethernet (PoE) |
Supported (IEEE 802.3af) |
Power Consumption |
5W |
Physical Dimensions | |
Dimensions (mm) |
88 x 26 x 130 mm (WxHxD) |
Dimensions (inches) |
3 7/16" x1" x 5 3/32" (WxHxD) |
Mounting |
Camera Housing/Shelf |
Environmental Specifications | |
Operating Temperature |
0° to 50° C |
Operating Humidity |
5% to 95% (Non-Condensing) |
Certifications | |
Safety |
CE, TUV |
