Outdoor High Speed Ptz Network Camera With Intelligent Video Analysis

• Full D1 resolution
• High speed Pan/Tilt (up to 360°/second)
• Outdoor cover with sunshade Included
• Power source 12 VDC, optional 24 VAC
• 360 degree continuous PAN maximum with 90± degree (range 180°) tilt camera system
• Rugged outdoor dome camera weather resistant to IP66 standards (NEMA 4 equivalent) that completely protects against the ingress of dust and water jets Operation temperatures -20 to 50 C
• Built-in intelligent video analytics
• Auto ICR cutter
• Image stabilization while zooming
• Focusing system: Auto (sensitivity: normal, low), one-push AF, manual, infinity, interval AF, zoom trigger AF
• Flicker cancel: Auto
• Back-light compensation : On/Off
• AE control : auto, manual, priority mode, bright, EV compensation, back-light compensation
• Gain: Auto/Manual (-3 to 28dB, 2dB steps)
• White balance: Auto, ATW, Indoor, Outdoor, one-push, Manual
• Minimum illumination: 1.0lux (F1.6~3.8) (color mode) ~ 0.001 lux (B/W mode)
• Provides two-way audio capabilities
• Hybrid support for both analog and IP network streaming architectures – includes audio, video and detection OSD
• Two separate, independent and configurable IP video streams

Detection Types:

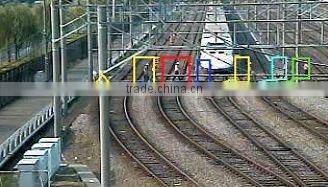

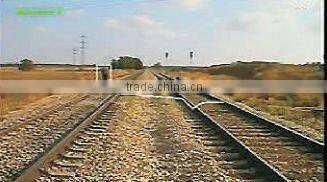

(1) Intrusion detections:

-Regional entrance

-Tripwire

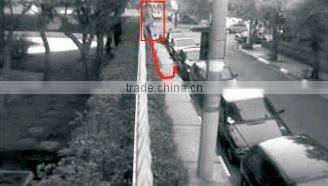

-Fence Trespassing

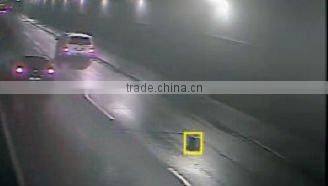

(2) unattended baggage detection

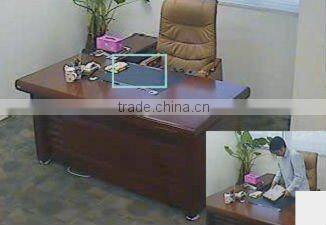

(3)object removal detection

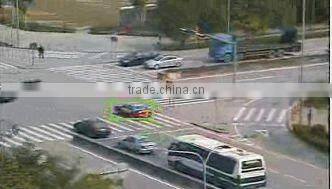

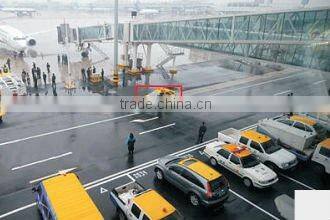

(4)overtime stopped vehicle detection

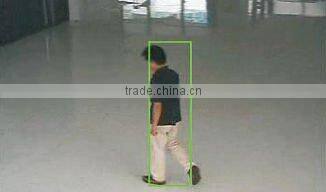

(5)loitering detection

(6)autonomous PTZ tracking detection

(7)camera anomaly detection
