Indoor Mini High Speed Dome Camera
- Shenzhen
- Credit Card
You May Like
-
700TVL IR Waterproof Camera
-
600TVL Indoor High Speed Dome Camera With Alarm, 1/4"960H CCD XDI-IIL Image Processor
-
500TVL1/3"SONY CCD Infrared Elevator Dome Camera
-
700TVL 1/3" SONY SUPER HAD II CCD IR Waterproof Camera
-
Waterproof Array IR Low Speed PTZ Dome Camera
-
IR Waterproof Camera 1/3"SONY SUPER HAD II CCD 600/700TVL
Product Details
| Place of Origin | Guangdong, China | Brand Name | BELLSENT | |
| Model Number | BE-SP3110PHC | Type | Analog Camera | |
| Style | Dome Camera | Sensor | CCD | |
| Technology | Pan / Tilt / Zoom |
Product Description
Specifications
4 inches mini appearancemenu password protection,dome information inquiry
Power cut memory
Samsung 10*10 times movement
Features |
l4 inches mini appearance design
lOSD Chinese and English menu with menu password protection and dome information inquiry function
lIntegrated PELCO-D/P etc. protocol, Hard and soft address Settings
lDirection indication, temperature indication (Celsius and Fahrenheit display synchronously ) and information display functions
lPower cut memory function can automatic resume the running status before the power cut
lBuilt-in Samsung 10*10 times camera mechanism
Specifications | |
Image Sensor | 1/4" Super HAD Color CCD |
Effective Pixels | 752(H)×582(V) |
Scanning System | 2:1interlaced scanning |
Horizontal Resolution | Color:500 lines B / W: 650 lines |
SNR | >50db |
Electronics Shutter | Auto / manual / flicker filter |
Backlight Compensation | Auto |
Synchronization System | Internal/external synchronization |
Video Output | 1.0Vp-p, 75Ω, BNC Connector |
Communication Mode | RS485 , PELCO-D/P |
Baud Rate | 2400bps/4800bps/9600bps/19200bps |
Preset | Max 200, title can be configured |
PTZ Control | pan rotation 360°, maximum rotation speed 220 °/ sec;
tilt 180° auto flip;
4 preset cruising scanning lines(24 presets each line; 4 pattern learning paths, record progress indicator display (can continuously record 100 different actions); 4 Automatic scanning ( line scanning between two points) with left and right limit, Scanning speed can be set. |
Working Temperature | -10°C~50°C |
Power Supply | DC12V/2A (±10%), ≤12W |
Working Humidity
| ≤90%, Non-Condensing |
Weight | About 1.7KG |
Packing size | L29Omm*W190mm*H220mm |

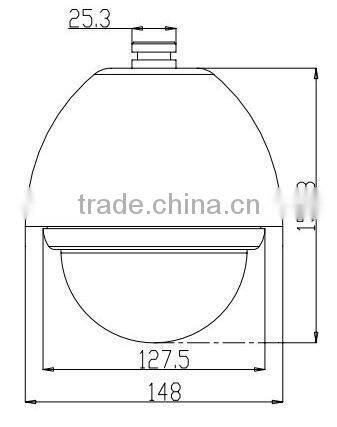

Dimension |
