waste drinking bottles used hdpe ldpe recycling machine Quality Choice

FOB Price

USD $30,000 - $100,000 / Set

1 Set(Min.Order)

Supply Ability 50 Set / Sets per Month
Port Qingdao
Payment Terms:T/T Credit Card

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Condition:	New	Application:	Plastic Recycling	Automatic Grade:	Automatic
Production Capacity:	300-6000KG/H	Place of Origin:	Shandong, China	Brand Name:	Bitrue
Model Number:	used hdpe ldpe recycling machine	Voltage:	380V 50HZ	Power(W):	1700KG
Dimension(LWH):	Customized	Weight:	Customized	Certification:	CE ISO
Warranty:	1 Year	After-sales Service Provided:	Engineers available to service machinery overseas

Product Description

waste drinking bottles used hdpe ldpe recycling machine

Feature of used hdpe ldpe recycling machine:

1.Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.

2.Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.

3.The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.

4. recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.

5. recycling machine output we can supply is from 300kg/h to 2000kg/h.

6.We can also produce the plastic pipe extrusion line,plastic profile extrusion line,wood plast composite extruion line,plastic recycling productio line.

Advantages of used hdpe ldpe recycling machine:

1. High strength national standard hard teeth gearbox.

2. Adopts inverter speed control, energy saving

3. Both screws, barrels adopt 38CrMoAlA alloy material, long life.

4. Intelligent automatic digital temperature controllers.

5. Automatic filter changing system, easy and fast to change the filters after using.

6. Speed adjustable pelletizing machine

7. For better machine performance, we also have other parts for option like hydraulic filter changer, blowing dryer, water ring cutting system, etc.

Technical parameters:

Item	Description

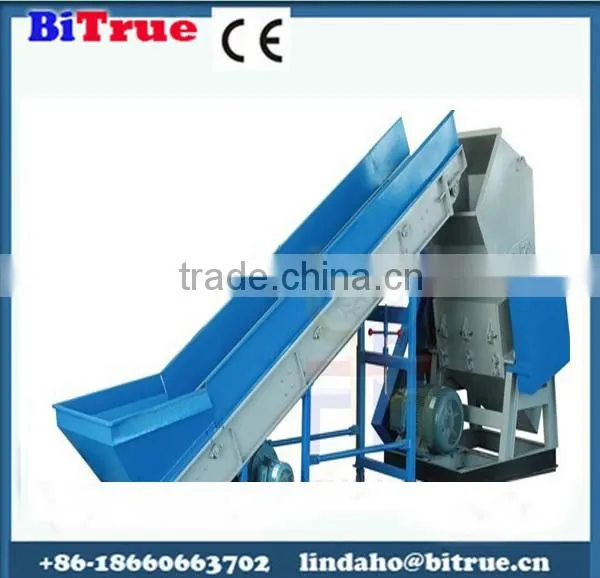

Conveyor belt	Used to convey the pet bottles into the label removing machine 3kw 5m*0.6m 1000kg/h Adjustable height Machine quality: carbon steel 300kg
Label removing machine	Used to remove the labels of the pet bottles 18.5kw+3kw 5m1.2m1.5m 2000kg/h Screw length:498cm Blade Quantity: alloy cutter head Machine quality: carbon steel Rotating speed:600r/min 1200kg
Sorting flat	Used to manually pick the bottles of different color and size 3kw 6m long 1000kg/h 350kg
Conveyor belt	Used to convey the label removed bottles to the crusher 3kw 8m*0.8m Height can be adjusted to 2.8m 1000kg/h 450kg
Crusher	Crush the pet bottles into flakes/ little flakes 75kw 2.8m2.2m2.8m 1200kg 3000kg/h Fixed blades:6pic Rotated blades:10pic 14 16 , at your request Mesh diameter:1.4cm 1.6cm 1.8cm Blade quality: carbon steel Spindle Speed:628r/min Machine quality: carbon steel The larger the mesh hole, the less capacity, and the size of the chips depend on the mesh hole.
rinsing and separating tank	Used to separate the impurities from the crushed pet flakes, the pet flakes will sank down and the impurities ,rings and caps of the machine will float 4kw2 6m1.5m*1.3m 1000kg/h 400kg
Automatic lifting dehydrator	Use to lift away the crushed caps ,rings and impurities. And has an extra function of dewatering. Carbon steel 4kw 200kg 300kg/h
Friction machine	Used to remove the dirt sand of the flakes through friction,thus reach a result of cleaning 7.5kw. 3m long diameter:0.4m 3000kg/h 350kg
Screw feeding machine	Used to convey the crushed pet flakes into the hot washer 4kw 4.5m long Diameter:0.4m 3000kg/h 150Kg
Boiler	Used to heat the hot washer This boiler can be heated by wood
Hot washer	Can be heated by coal, diesel. Natural gas and various fo fuel. And you put water with some liquid medicine in it. The water can be heated to 90 degrees. Pet flakes will be boiled and stired in the hot washer, remove some chemical stains of the stains, then further processing Diameter:2.2m 2.5m heigh 11 kw*2 Two hot washer needed, Carbon steel
Screw lifting machine	Send the boiled flakes out of the hot washer 4kw 4.5m long Diameter:0.4m 3000kg/h Carbon steel
Friction machine	Remove the glue of the flakes through friction 22kw 3.5m long, diameter:0.7m 3000kg/h Carbon steel
Rinsing and separating tank	The more the tank, the cleaner the flakes, send the flakes to the dehydrator 8kw 7m1.5m1.3m 3000kg/h Carbon steel
Horizontal dehydrator	Used to dehydrate the cleaned flakes, moisture content :less than 3%, Carbon steel and stainless screen 37kw 4.2m1m1.7m Mesh size:5mm Carbon steel
Control cabinet	Control the whole line Carbon steel

Packaging & Shipping

Contact Us

Weifang Bitrue I/E Co., Ltd.: Contact nameLinda Ho; Phone86-536-8595850; AddressNo.14526 Jiankang str. Weifang,Shandong
