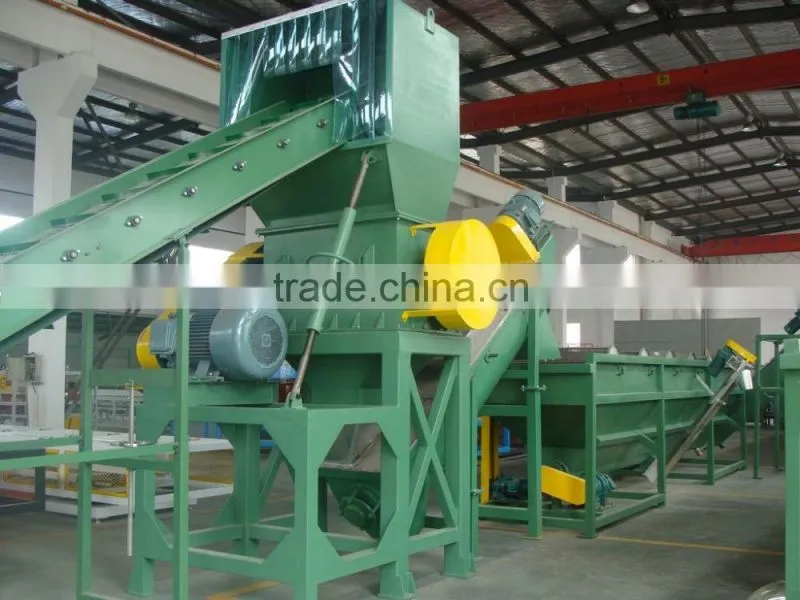

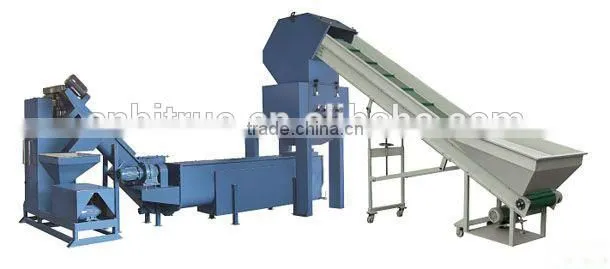

large capacity plastic bumper polyester recycling machine
Descriptions of polyester recycling machine:
1.This plastic recycling is researched, design and manufactured for recycled waste plastic. such as PP,PE,PET,PVC,ABS etc.
2.This plastic recycling takes the advantages of simple structure, easy operation, high capacity, low energy consumption, safety, reliability, etc.
3.This plastic recycling is mainly used for PE/PP washing / PE film washing/ PP woven bags washing / PE PP flakes washing :
4.This plastic recycling line is composed of garbage separation (automatic & manual), bottle & flake crushing, cold & hot washing & cleaning, scrap dewatering & drying and packing, etc.
5. It is special for washing recycled PE/PP, such as the mineral films, woven bags, flakes, etc.. We can help to attach equipment at the end of the washing line so that the completely dry flakes can be collected and packed directly after being washed.
6.The clean flakes can be used to produce granules.
7.The whole line can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
8.The output we can supply is from 100kg/h to 2000kg/h.
9.We can also supply single/double shaft shredder to equip on the whole line.
Feature of polyester recycling machine:
1.Plastic recycling washing machine is applied in PET waste bottle or sheet recycling field.
2.Through crushing, washing and dry process, the waste bottle or sheet will become to be bottle flakes. The flakes are widely used in plastic industry, like sheet, and profile production.
3.The clean flakes can be used to produce the polyester staple fiber, PET strap band, granules, PET transparent film and sheets, etc. The top class flakes can be used to blow bottles again.
4. recycling machine can be designed on the basis of how dirty the flakes are, and make sure of the quality of the final products are very clean.
5. recycling machine output we can supply is from 300kg/h to 2000kg/h.
6.We can also produce the plastic pipe extrusion line,plastic profile extrusion line,wood plast composite extruion line,plastic recycling productio line.
Advantages of polyester recycling machine:
1. High strength national standard hard teeth gearbox.
2. Adopts inverter speed control, energy saving
3. Both screws, barrels adopt 38CrMoAlA alloy material, long life.
4. Intelligent automatic digital temperature controllers.
5. Automatic filter changing system, easy and fast to change the filters after using.
6. Speed adjustable pelletizing machine
7. For better machine performance, we also have other parts for option like hydraulic filter changer, blowing dryer, water ring cutting system, etc.
application:

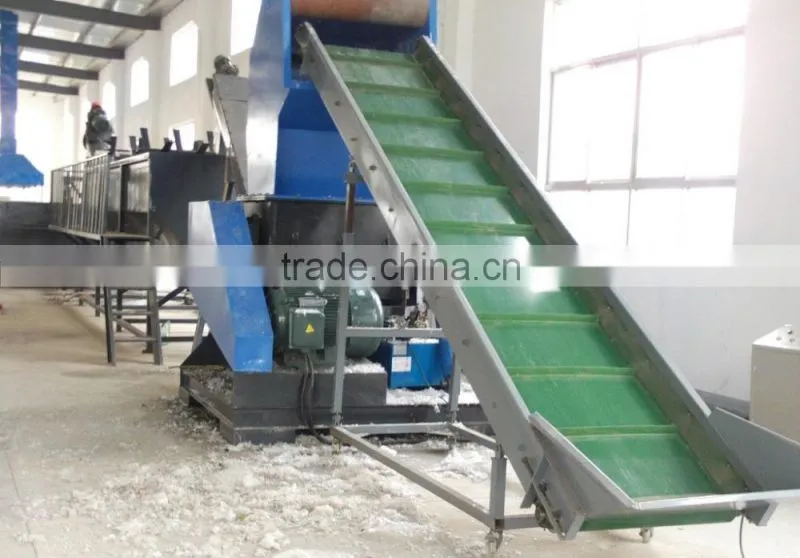

- Screw feeding conveyor : Convey the waste PET PP to the crusher
- Crusher: Crush the waste PET PP.
- Flotation rinsing unit: Separate the bottles caps and impurity from the crushed PET PP flakes.
- Screw feeding conveyor: Convey the waste PET PP to the hot washer.
- Hot washing tank ( 2pcs): wash the PET PP flakes.
- Screw feeding conveyor(2pcs): Abstract the PET PP flakes from the hot washer.
- High speed Scrubbing washing unit: remove the impurity and the rest dirty in the surface of the PET PP flakes.
- Floating tank: Separate the caps and impurity from the PET PP flakes again.
- Electric heating drying unit:dry the PET PP flakes.

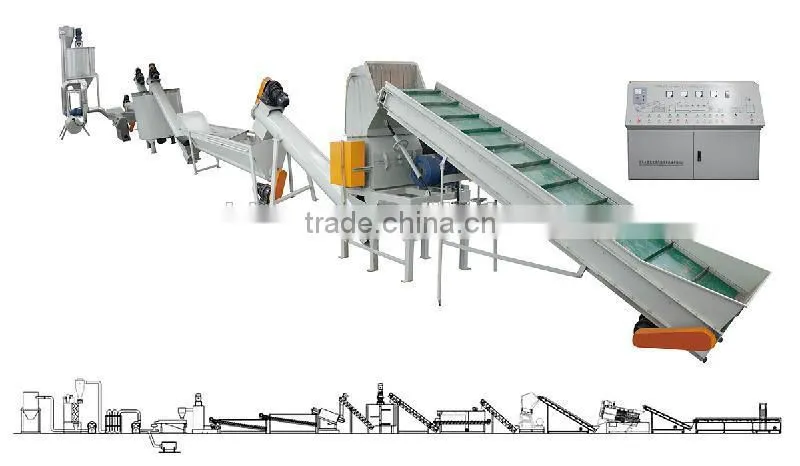

- Pet pp washing recycling line (crush+ wash+ dry)
Work Processing of polyester recycling machine:

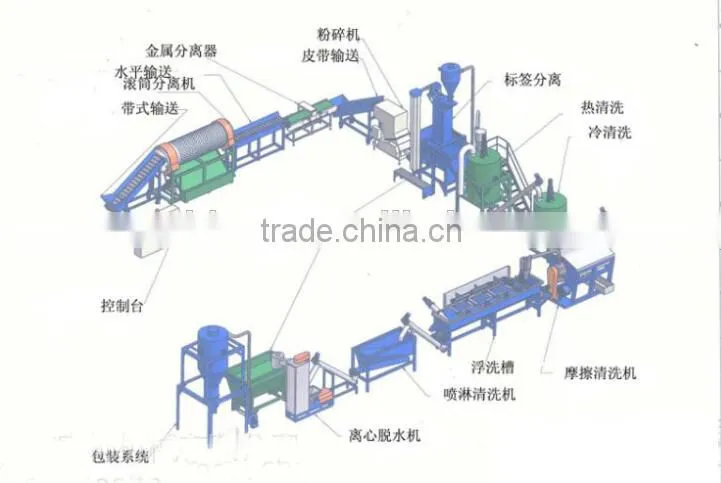

Conveying PET bottle→lable remover→ manual sorting table → wet crusher→screw loader →Hot washer→screw loader→high speed friction washer→screw loader→floating washer→screw loader→spray washer → dewater machine → pipe line dryer → label seperator → blower → hopper
