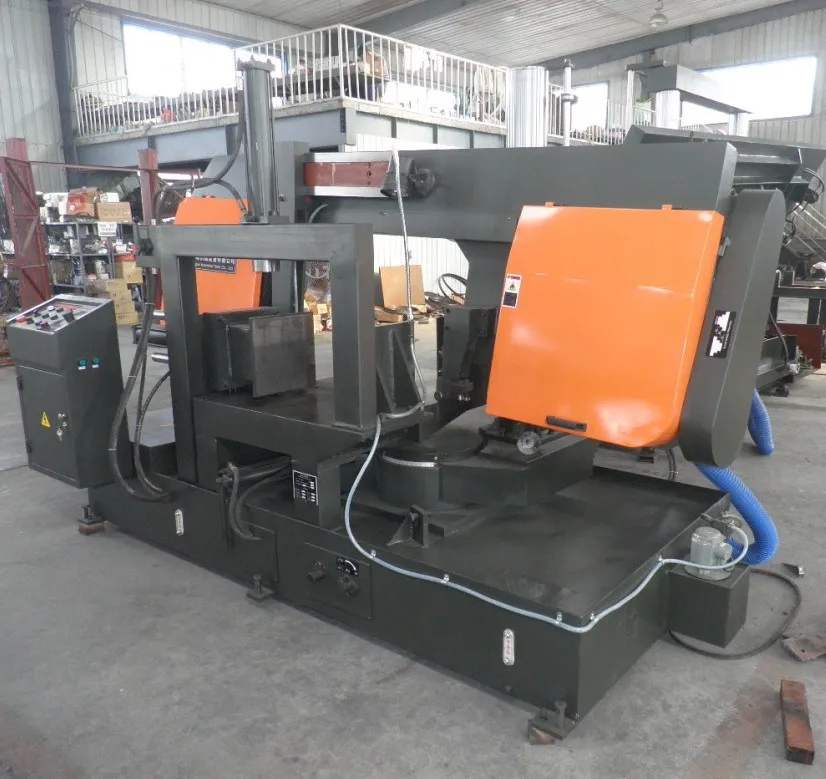

G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel

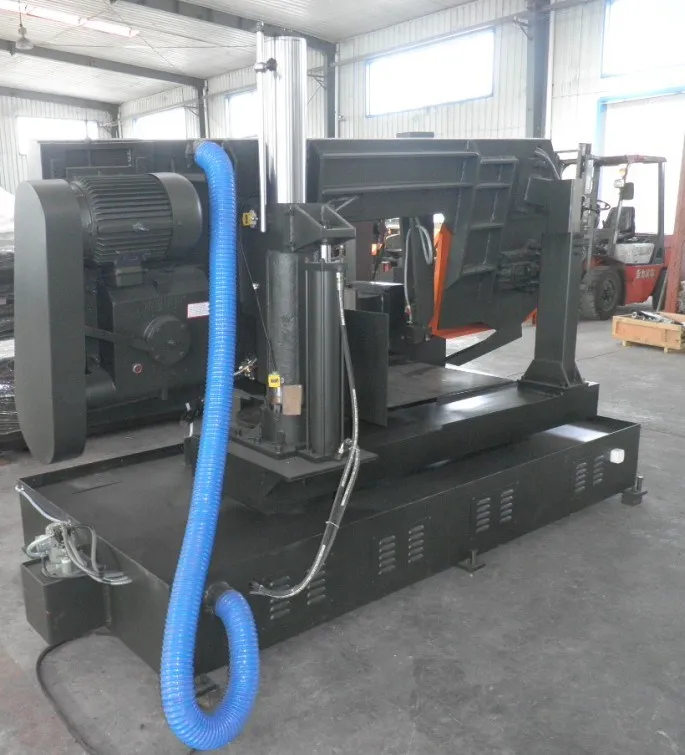

G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel photo-1

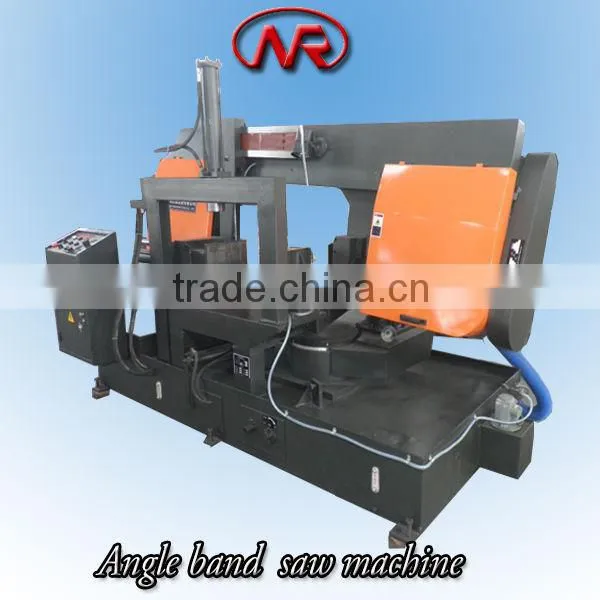

G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel photo-2

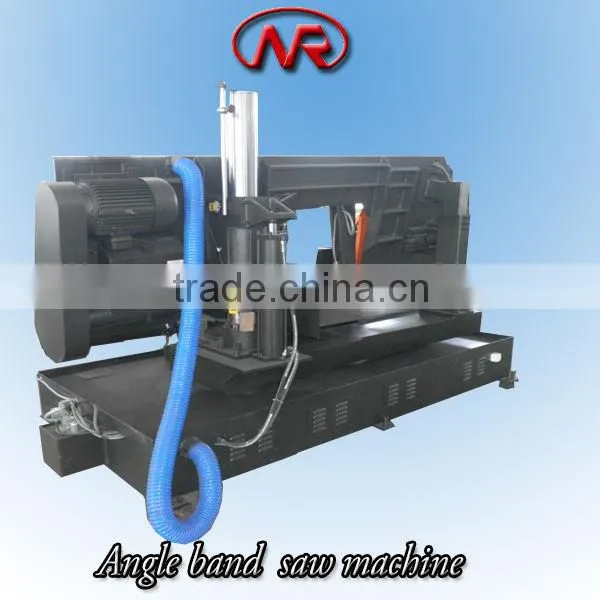

G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel photo-3

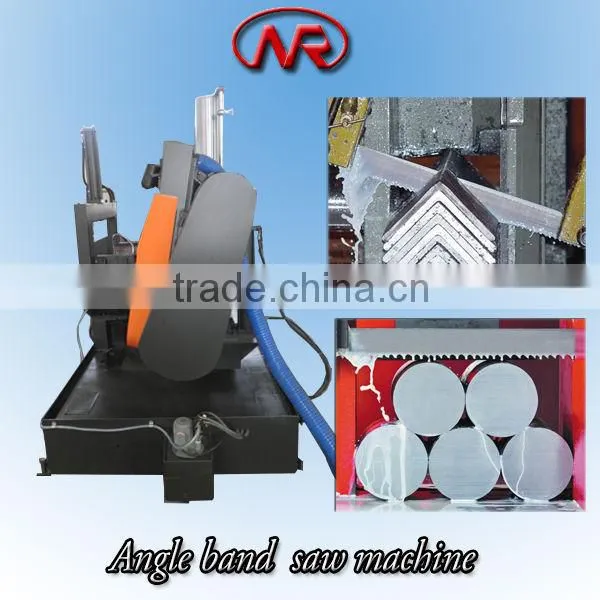

G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel photo-4

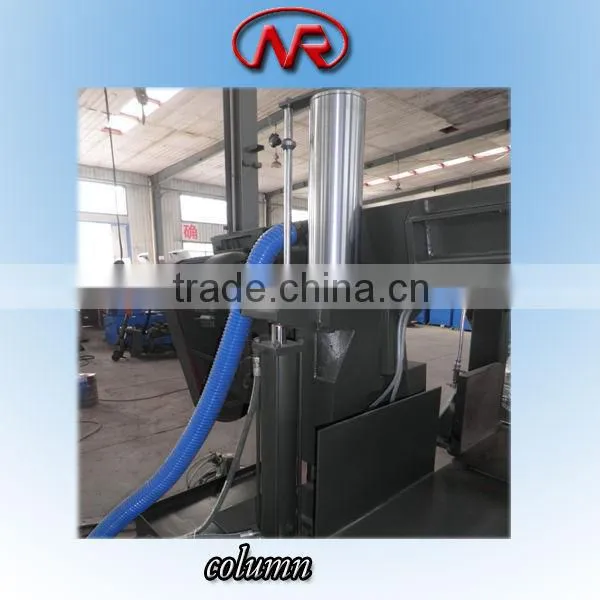

G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel photo-5
G500 Angle Series Machine Band Saw Cutting 45 Degree Band Saw For Steel photo-6
US$ 1 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Shandong, China
Brand Name:
NR Band Saw Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
qingdao
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Place of Origin Shandong, China
Brand Name NR Band Saw Machine
Model Number G-500
Voltage 380
Rated Power 5.5KW
Dimension(L*W*H) 2600*1600*1650
Weight 2200KG
Certification CE ISO
Warranty One Year
After-sales Service Provided Engineers available to service machinery overseas
Product Description
                                                           SPECIFICATIONS FOR cutting angle BAND SAW





Engine

main power rate
Kw/H.P
5.5/7.4
hydraulic power rate
Kw/H.P
1.5/2
coolant pump rate
Kw/H.P
0.12/0.16





Main performance parameters

cutting capacity 0
mm
round 400 rectangle 700W*500H
cuting capacity -45
mm
round 400 rectangle 500W*500H
cutting angle
degree
0  ~  -45
clamp open&close
mm
580
blade speed
40/60/80,inverter
blade size
mm
4800*34*1.1

Main Features

1)Bi-direction angle swivel -45...0...+45..with csale indicator.

2)Manual angle swivel.

3) Semi-automic cut cycle , no miter cuutting , straight cutting only.

4) Blade cutting feed rate se t& controllde by speed -adjusting valve on the control pannel.

5) Build-in coolant system ,vibration flood coolant system to both saw guides.

6)Hydraulically controlled single vise clamping system

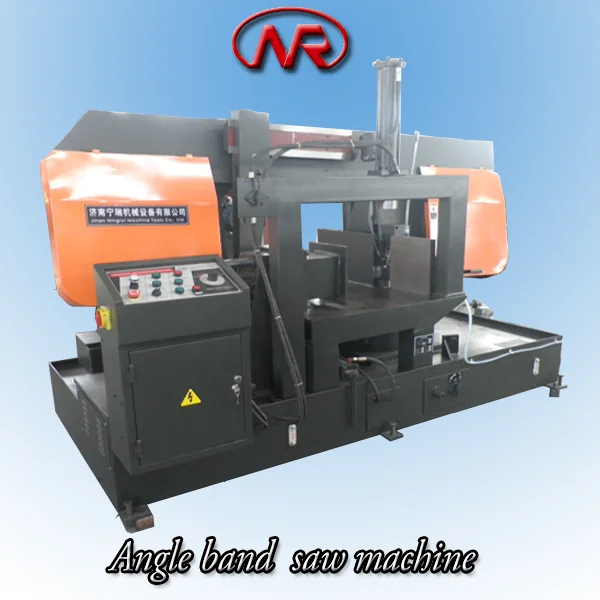

Detailed Images

Machine Parts

Name;G-500

Brand:  NR

Original: China

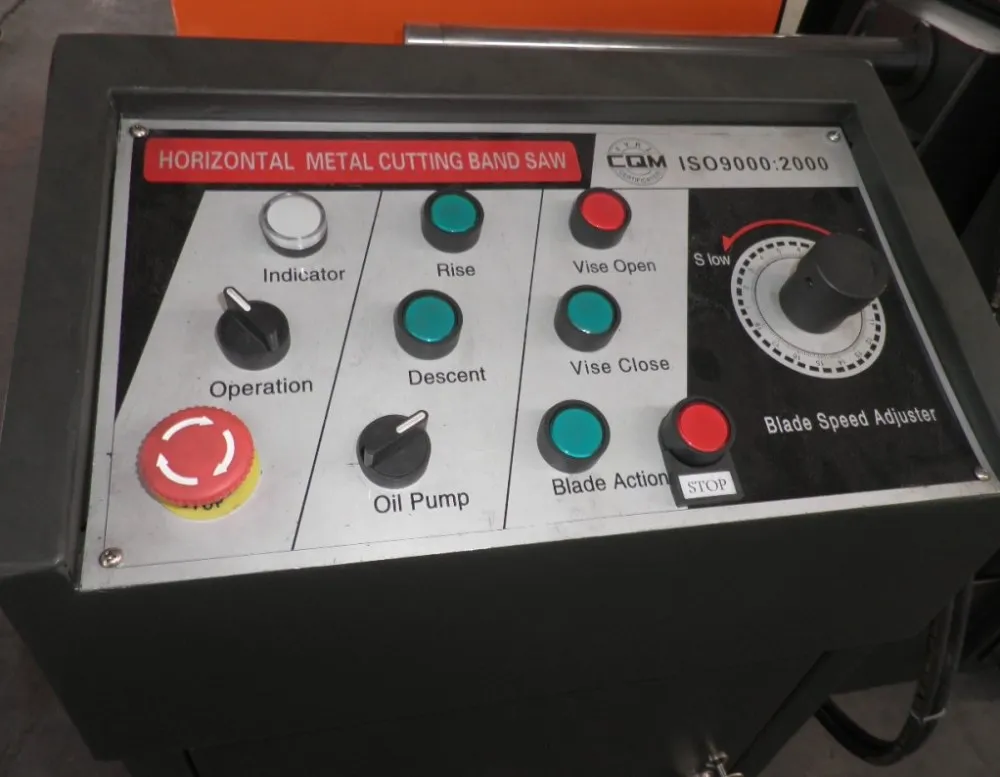

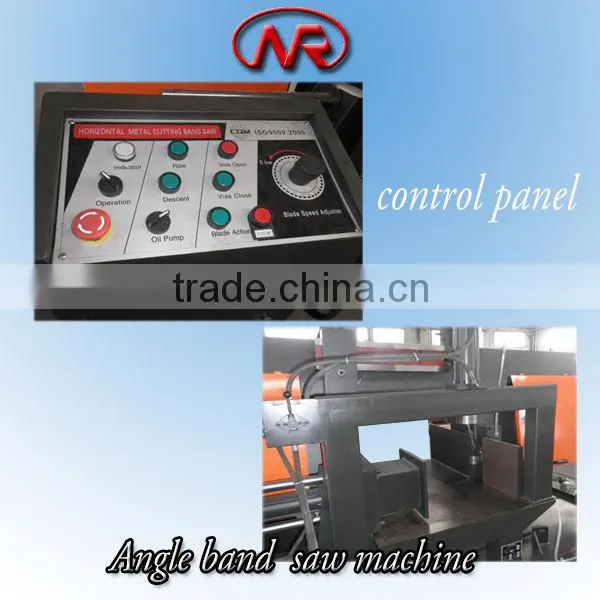

Blade cutting feed rate set &controlled by

speed -adjusting valve on the control pannel.





Product Application

Mainly used to cutting various metal, like steel, iron,copper, aluminum,etc. Also can cut wood, meat,stone and other materials by changing to special saw blade . Band saws are a cost effective way to cut different material in many different shapes.

Certifications
Packing & Delivery
Packaging
Size
2600*1600*1650mm
Weight

2200KG




Packaging Details
steel/plywood box suitable for the long distance inland and ocean freight transporation.

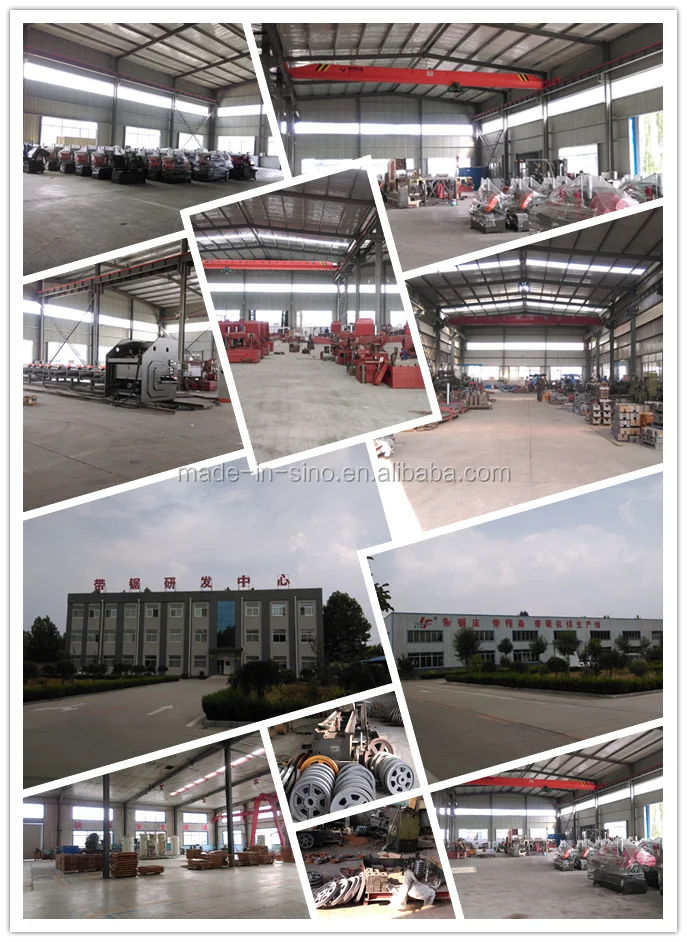

Company information



Jinan Sino Machine Tools Co., Ltd is manufacturer for Metal Cutting Band Saw,Busbar Machine and Aerial Working Equipments. Since it is set up, we’ve experienced a quick, healthy & continuous development. For business convenience ,in 2009 we were born into 3 sister companies (joint-stock cooperated):


-Jinan NingRui Machine Tools Co., Ltd

-Jinan Sino Lift Machinery Co., Ltd
-Jinan Sino Trade Co., Ltd


With these three branches, not only in China but also in the world we offer a full range of products for diverse series:
Band saw: semi automatic series, fully automatic series, miter angle cutting series, etc.
Band saw blades: Lepp and Belige band saw blades
Aerial working equipment: mobile scissor lift, static cargo lift, self-propelled scissor lift, aluminum alloy mast lift, container yard ramp , etc.
Busbar machine: CNC busbar proessing machine. busbar punching machine .busbar shearing machine.and busbar bending machine.
The engineering team has average 15 years of experiences, they give the machines a robust and attractive design and assure that we offer the product with the best quality. In our group, you can always get a superior experience of the quality and the service.



Now you can order freely!
We undestand buyers might be worried about ordering products from China.
Now our company have joined Alibaba Trade Assurance . By placing order through Alibaba, if the suppiler
doesn't meet your contract requirements for on-time shipment or Pre-shipment product quality, may refund the payment as stated in your contract.
Now our Trade assurance Limit is up to 99000USD. You can check this information from http://made-in-sino.en..
And if you worry about the machine quality, you can ask Alibaba to find a trusted third party like TUV,SGS, etc. to inspect the quality for you. This way protects the buyer's interests and lowers your risk.
! !!!!!!!!! Contact me as below guide, we are glad to give you best price !!!! !!!!
