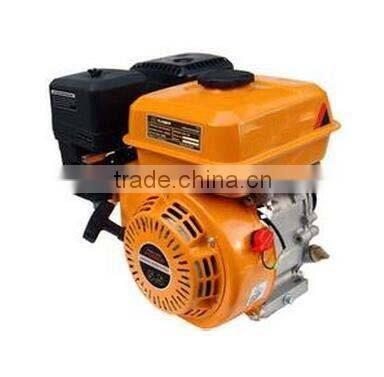

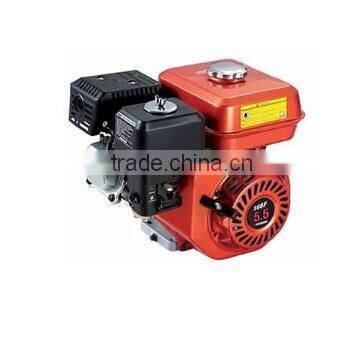

High quality diesel engine sale
diesel engine description
Engine is a kind of can take other forms of energy into mechanical energy of the machine, including such as internal combustion Engine (gasoline Engine, etc.), external combustion (Stirling Engine, Engine, etc.), motor, etc. Such as internal combustion engine is usually to convert chemical energy into mechanical energy. Applies to the power generator engine, can also refer to include the power unit of the whole machine (such as gasoline engine, aircraft engine).
1. Portable compact open structure
2. Economical, reliable and durable
3. Long run time - up to 13.5 hours
4. Oil alert to shut down engine automatically when low oil is detected
| Model | S170F(E) |
| Type | Single cylinder, vertical, 4-stroke, air cooled |
| Bore*stroke (mm) | 70*55 |
| Dislacement (L) | 0.211 |
| Combustion system | direct injection |
| Rated output KW (HP) / rpm | 2.5 (3.4) / 3000 2.98 (4.0) / 3600 |
| Max output KW (HP) / rpm | 2.8 (3.8) / 3000 3.36 (4.5) / 3600 |
| Direction of rotation | Counterclockwise, facing PTOshaft |
| Fuel | 0# (Summer) / -10# (Winter) |
| Fuel tank capacity (L) | 2.5 |
| Lubricating oil capacity (L) | 0.75 |
| Lubricating system | Pressure splashed |
| Starting system | Manual / Electric start |
| Packing size (L*W*H) mm | 415*385*470 |
| Net weight (KG) | 26 |
Economic
This type is the larger type of this series.High Compression ratio,high efficiency.Low fuel
consumption rate till 283g/kw.h.The muffler system greatly lowers exhaust noise.With the addition of
advanced design air induction system,intake noise is reduced to a low level.
Advanced
Unique gear drive is adopted in the engine,which can reduce noise and vibration of the engine.It can bear many hard working conditions.The fuel system assures high efficiency operation:Precision machined and precisely timed injection pump and direct-injection design leads to lower fuel consumption and reduced tailpipe emissions.
Reasonable
Light weight and compact design,suit for wide application scope,such as agricultural equipment,
garden machinery,engineering machines... .
Main features: single cylinder,4 stroke,vertical,air cooled.Equip with muffler,reduce a lot of noise from exhaust noise.The design of cylinder block,engine cover and valve train can reduce noise level.
Others
The engine can start by recoil or electric ,easy and fast.
All the engines achieve CE, ISO90001 and many domestic standards.
diesel engine advantage
1.Compact in structure ,nice in appearance ,lighter in weight ,smaller in size
2.Adopt special small size direct injection combustion system .
3.lower fuel consumption,higher output.
4.Low noise, low vibration,smooth running ,reliable performance.
Packaging and shipping
Packaging:
1. Plastic Foam
2. Wooden Case
Shipping
1. Plastic for full container load
2. Wooden Case for Less container load
our services
1. Warranty:
Our all products with 1 year warranty.
2. OEM Acceptable:
We accept your brand and customize packing carton available
In follow orders, we can provide spare parts charge lower price.
3. Samples:
Sample is available for checking our quality.
4. Delivery time:
Either sample order or batch order.
