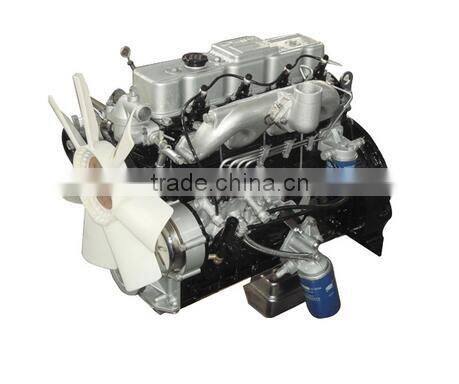

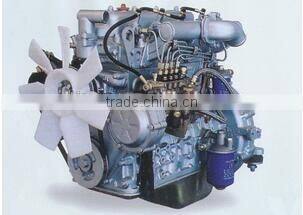

surplus engine
surplus engine description
Engine is a kind of can take other forms of energy into mechanical energy of the machine, including such as internal combustion Engine (gasoline Engine, etc.), external combustion (Stirling Engine, Engine, etc.), motor, etc. Such as internal combustion engine is usually to convert chemical energy into mechanical energy. Applies to the power generator engine, can also refer to include the power unit of the whole machine (such as gasoline engine, aircraft engine).
| ITEM | BT-4 | BT-4T | BT-6 | BT-6T |
| Cylinder number | 4 | 4 | 6 | 6 |
| Cylinder arrangement | In line | in line | In line | in line |
| Induction system | Naturally aspirated | Turbocharged | Naturally aspirated | Turbocharged |
| Bore*stroke (mm) | 100*127 | 100*127 | 100*127 | 100*127 |
| Displacement (L) | 3.99 | 3.99 | 5.99 | 5.99 |
| Compression ration | 16.5 | 17.5 | 16.5 | 17.5 |
| Firing order | 1.3,4,2 | 1.3,4,2 | 1.5,3,6,2,4, | 1.5,3,6,2,4 |
| Rated power/speed(kw/) | 58/2200 | 74/2300 | 88/2400 | 114/2300 |
| Maximal speed | 260/(1400-1600) | 336/(1400-1600) | 410/(1400-1600) | 568/(1400-1600) |
| Min. fuel consumption | ≤225 | ≤230 | ≤220 | ≤215 |
| Average sound dB(A) | 96 | 96 | 98.7 | 98.7 |
| Emission | Tier1 | Tier2 | Tier1 | Tier1 |
| Weight (kg) | 273 | 279 | 410 | 419 |
| Overall Dimension (mm) | 711*610*767 | 711*614*767 | 945*610*780 | 945*677*780 |
Energy efficiency and Economy
Through careful management of the combustion process, involving precise control of air movement and injection spray Volvo Penta has been able to achieve higher levels of efficiency than ever before. This has resulted in improved fuel economy and reduced exhaust emission levels that comply with current requirements and which will enable the engines to satisfy future legislation. Volvo Penta engines offer the highest kWh/Liter fuel, resulting in superior economy and performance.
Durability & low noise
Designed for easiest, fastest and most economical installation. Well-balanced to produce smooth and vibration-free operation with low noise level. To maintain a controlled working temperature in cylinders and combustion chambers, the engine is equipped with piston cooling. The engine is also fitted with replaceable cylinder liners and valve seats/guides to ensure maximum durability and service life of the engine.
Low exhaust emission
The state of the art, high-tech injection and highly efficient charge air system with low internal losses contributes to excellent combustion and low fuel consumption. The engine is EPA/CARB Tier 3 & EU Stage 3A emission certified. These regulations are met by using V-ACT™ (Volvo Advanced Combustion technology). V-ACT includes a flexible high pressure Common-rail fuel injection system, an air management system including an internal exhaust gas recirculation device and an enhanced electronic controller.
With large low-speed torque low fuel consumption, small vibration and low noise. The series diesel engine consistent with direct injection combustion chamber, easy start, and good economy, with compact structure and double hydraulic-driven diaphragm pump output, main components for construction machinery tailor-made so that easy to install layout. It has the feature of large reserve of torque, small vibration, low transfer rate and so on.
• Low Fuel Consumption
• Minor inconvenience
• Long-life
• No overheating
• Fast switching
• High reliability
• Reduced maintenance costs
surplus engine application field
forklifts, excavators, slide machine, aerial work platform, loader, road roller, bulldozer, grader, milling planer, drag pump, crane and large road construction machinery and other fields.
surplus engine application field feature
- Perfect Economy
- High Reliability, Durability and Safety
- Low Noise, Low Emission and Good Environmental Protection
- Compact Size, Light Weight and Easy for Maintenance
other type we can supply
Packaging and shipping
Packaging:
1. Plastic Foam
2. Wooden Case
Shipping
1. Plastic for full container load
2. Wooden Case for Less container load
our services
Warranty Period: 12 monthes or 1500 working hours from commissioning date
Parts: Replacement Parts replacement under warranty will be sent to buyers without charges;
Duty Problems :caused by customer's incorrect operation will be covered by the user
Maintanence: Part use for overhual and ordinary maintanence will be offered by us in factory price
Service: Skillful engineers of us are available dispatched to customers place for training and service
