Help CenterNR803E-3-S CNC Copper Busbar Bending Cutting CNC Hole Punching Machine
Related Products
-
NR503E-3 Hydraulic Multifunction Busbar Bending Cutting Metal Strip Bending MachineUS$ 7,200 - 8,600MOQ: 1 Set -
Bus Bar Bender Machine NR303C-1US$ 1 - 9,999MOQ: 1 Set
-
Busbar Fabrication Machine for Bending Punching Cutting NR303D-1US$ 1 - 9,999MOQ: 1 Set
-
Multi-function Hydraulic Busbar Bending Machine NR803E-2US$ 1 - 9,999MOQ: 1 Set
-
Muti-function Busbar Cut Bend Punch Equipment Hydraulic Busbar Cutting MachineUS$ 1 - 9,999MOQ: 1 Set
* Main Features :
1.Function : Cutting, Punching (various round holes and rectangular holes), horizontal bending, Vertical bending , Embossing, Pressing Cable joint, Twisting, reverse flattening etc for Copper or Aluminium bus bars.
2. Adopting cutting structure of double upright column ( Patent No.: ZL201120268021) for cutting unit. Cutting mouth is neat and no burr,cutting no waste materials.
3.The puching unit change die conveniently, operation is easy .
4.The shearing adopts punching shear . Verticality of transverse planecan be ensured .
5. Adopting PLC controlled,bending angle can be NC,and with storage function( Controlled by SIEMENS PLC, bending precision at ±1 degree and repeat degree at ±0.3 degree.)
* Detailed Parameters :
Function |
Item |
Modeal |
|
|
NR803E-3-S |
Punching |
Max. Punching Force (KN) |
800 |
|
Punching Diameter Range (MM) |
4.3-36 |
|
Max. Processing Size(MM) |
20*260 |
Shearing/Cutting |
Max. Processing Size(MM) |
20*260 |
Honrizental Bending |
Max. Bending Force (KN) |
800 |
|
Max. Processing Size(MM) |
20*260 |
Vertical Bending |
Max. Width (MM) |
120 (10mm THK) |
|
Max. Angle (Degree) |
90° |
Out Dimension |
mm |
2150*1750*1500 |
Weight |
kg |
1970kg |
CNC bending angle |
NO |
|
Three station work at the same time |
YES |
|
Table Size (MM) |
One layer |
1770*1600 |
|
Two layer |
1120*450 |

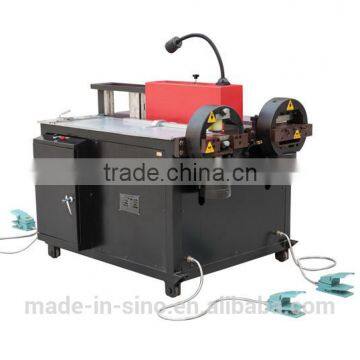

* Photo Show :
* Package & Shipping :
1.Interior Package
2.Plastic Film Exterior Package
3.Wooden Case& negotiable
Jinan Sino Machine Tools Co, Ltd . is a technology company, specializing in the developing, production, selling of electrical & CNC metal plate machines. We have much advanced management experience, strong technology and large selling networks.
the company is located spring city Jinan, the products are high performance based on the powerful technology research and development capacity and product's prices are very economic . We provides various Busbar Processing machines with punching, bending , cutting function and Busbar Punching.
* Certification :
* Our service :
1.Excellent and professional service:
Our company is specialized in the production of machinery and equipment manufacturers set up factories in 1998,have many years of production metal band sawing machine experience, own the development, design and manufacturing ability.
2.Quality control:
The company has products by the Jinan Municipal Bureau of testing , in line with the state standards for production , quality by to be rated. The compny has passed ISO9001:2008 quality systerm certification, and obtain import and export licese. All over the country with offices and aftersales service stations, to provide users with timely and thoughtful service.
3.Comprehensive service:
Delivery will be ready within 30 days after receiving your down payment .
We have a good engineer team who can design kinds of products according to customer requirements .
We have been in this field for 20 years, covering ovearseas market of 30 different countries .
* FAQ
* What is your payment terms ?
30% TT as deposit, balance be paid when goods are ready for loading before shipment.
*What is your Min Order Quantity(MOQ)?
1 set is ok. Our customers can be end users, retailers and wholesalers.
*Is you dies produce by your own factory or buying from others?
We have our own workshop for producing dies.
*Besides this machine, do you have any other options for me?
We have dozens of options for you.
*Are all the Labels and instuctions of the machine in English?
Yes. the labels on the machine and the manuel books are all made in english version.
* Welcome To Contact Us
