Bus Bar Bender Machine NR303C-1
US$ 1 - 9,999
/ Set
1 Set(Min. Order)
- Qingdao port
- T/T Money Gram
You May Like
-
Busbar Fabrication Machine for Bending Punching Cutting NR303D-1
-
Multi-function Hydraulic Busbar Bending Machine NR803E-2
-
Muti-function Busbar Cut Bend Punch Equipment Hydraulic Busbar Cutting Machine
-
Portable Busbar Punching Machine Busbar Punching Bending Cutting Machine for Electrical Panels Manufacturing
-
NR803E-3-S CNC Copper Busbar Bending Cutting CNC Aluminium Foil Punching Machine
-
Hydraulic Sheet Metal Bending Machine Busbar Hole Punching Machine Bending Hole Punching Machine
Product Details
| Condition | New | Place of Origin | Shandong, China | |
| Brand Name | NR | Model Number | NR303C-1 | |
| Machine Type | Other, shearing punching bending | Raw Material | Other, Copper Aluminum Brass | |
| Material / Metal Processed | Other, Copper Aluminum Brass | Power | Hydraulic | |
| Automation | Automatic | Extra Services | Other, shearing punching bending | |
| Certification | ISO 9001:2000 | After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

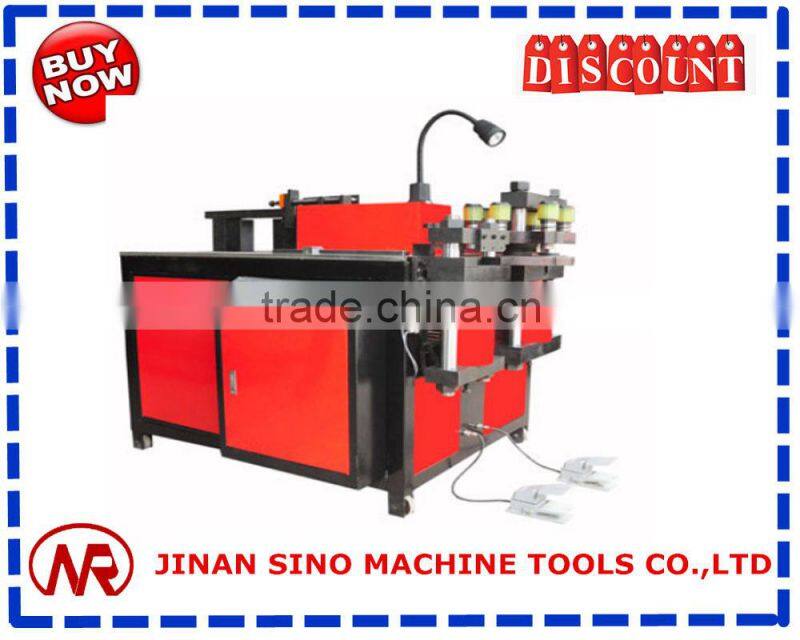

Busbar Bus Bar Bender Machine NR303C-1
Product Description
* Main Features :
Function : Cutting, Punching (various round holes and rectangular holes), horizontal bending, Vertical bending , Embossing, Pressing Cable joint, Twisting, reverse flattening etc for Copper or Aluminium bus bars.

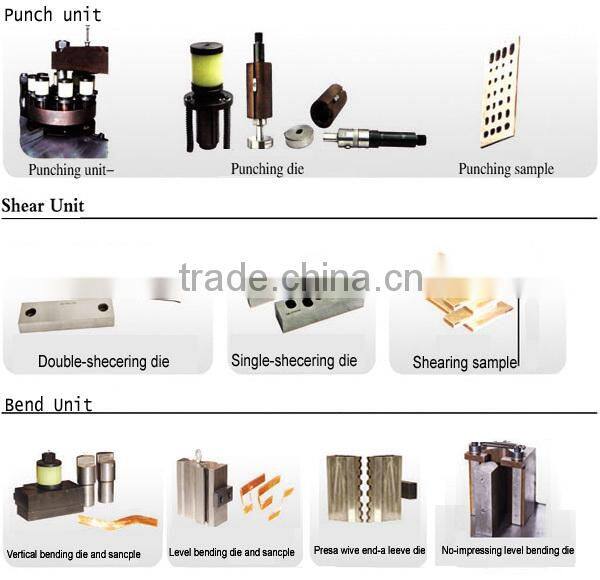

- The punching unit uses ductile iron to process the turret typed integral rotary table, which is capable of storing six diestation . The mold mounting hole is processed with the CNC machining center which offers higher precision , this improves the concentricity and extend the service life of the mold ,and also the mold do not need to change frequently when using.
- The shearing unit adopts double columnshearing structure, guarantees the notch smooth, no waste materials and long term use without deformation.
- Adopting closed bending unit, much more enhanced than the opening bending
- The bending unit can do U-type bend
- The hydraulic oil tank uses 3mm steel plate with phosphating process, so the hydraulic oil will not degenerate after long usage.
- The hydraulic oil tube adopts the International A-type connection, so it is very durable and also easy to repair.
- With foot caster wheels, easy to move
Model | NR303C-1 |
Output force | 300KN |
Max size for shearing | 12x160mm |
Punching size | Φ4.3 - 32mm |
Max.Horizontal bending size | 12x160mm |
Max. Vertical bending size | 12x120mm |
Working table size | 1400x1000mm |
Machine size | 1500x1150x1170mm |
Machine weight | 1270Kg |
Packaging & Shipping

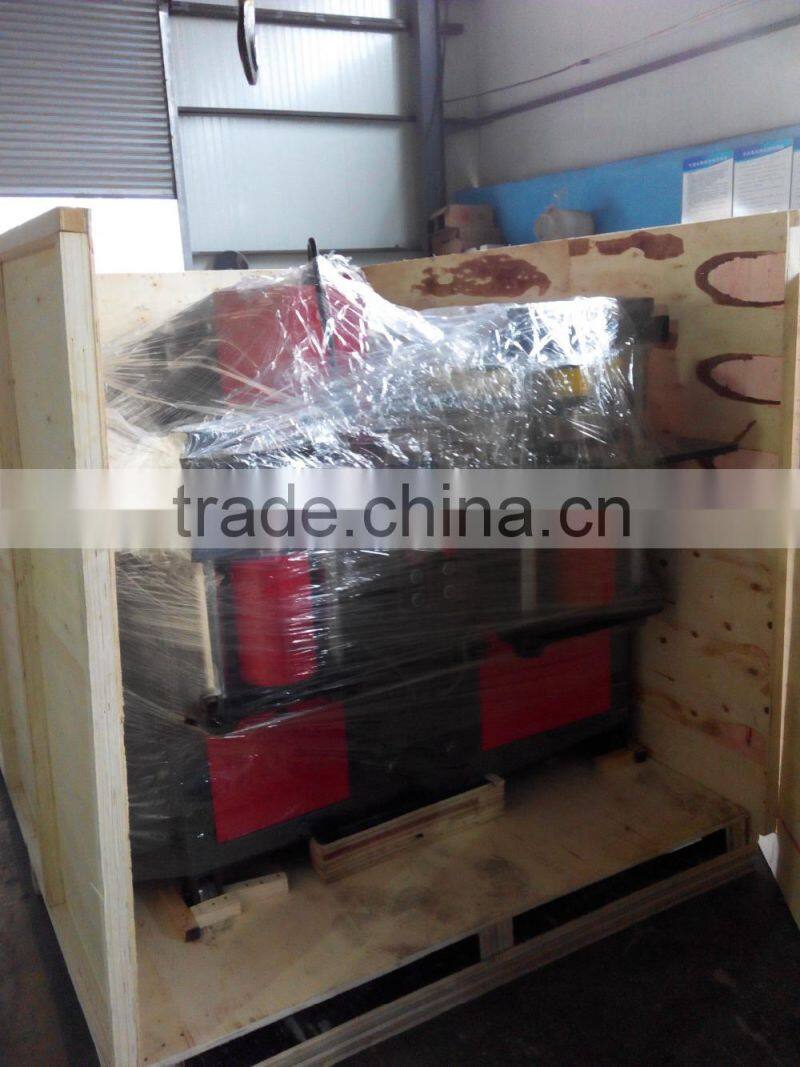

High quality plywood package can give the best protection to bandsaw machine during the long tranpotation.
Certifications
Company Information

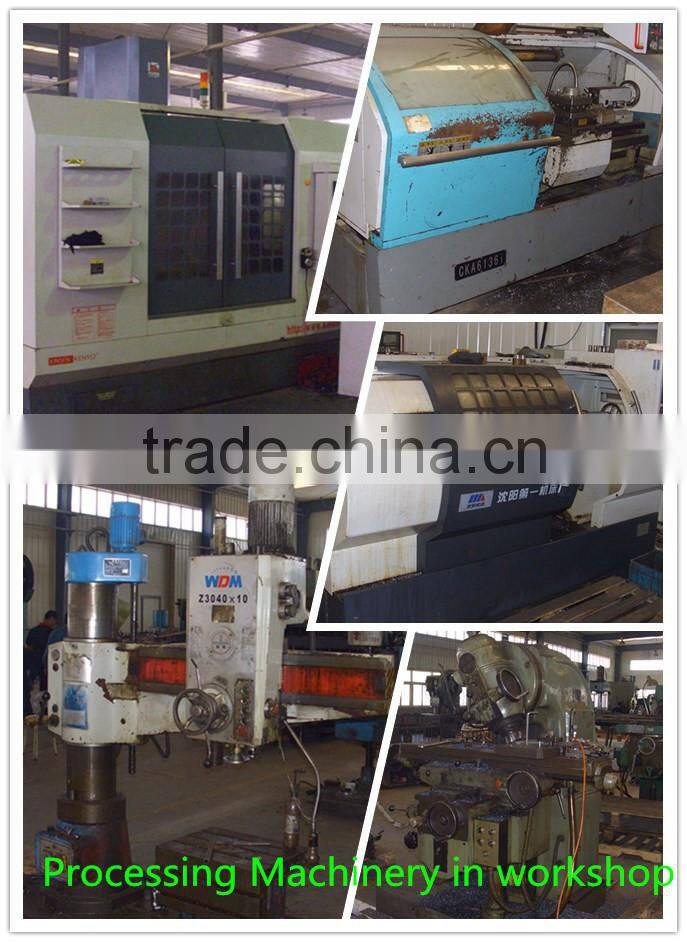

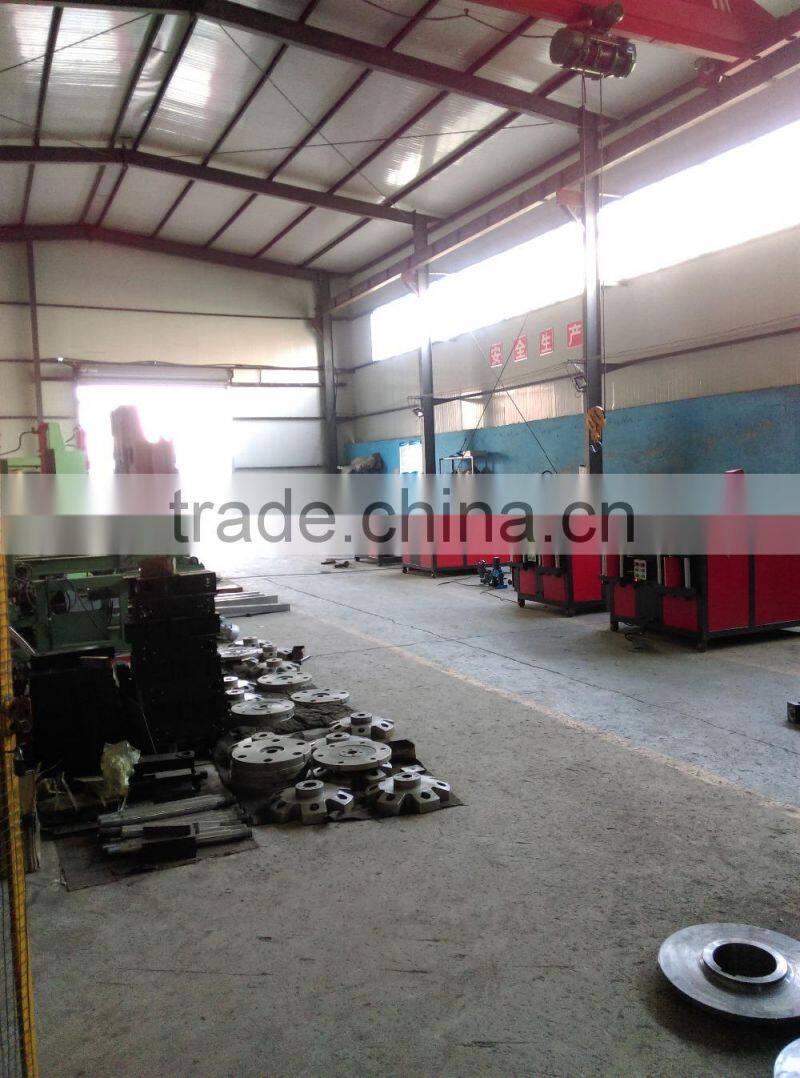

Jinan Sino Machine Tools Co, Ltd . is a technology company, specializing in the developing, production, selling of electrical & CNC metal plate machines.
Our company is located spring city Jinan, the products are high performance based on the powerful technology research and development capacity and product's prices are very economic . We provides various Busbar Processing machines with punching, bending , cutting function and Busbar Punching.
* Certification :
Contact
Guarantee
- One year guarantee from the delivery date of band saw machine under the normal and proper operation of one shift per day.
- We'll be responsible for the maintence and repair of the damaged parts during warranty period. The transpotation costs of the damaged replacement parts will be borne by the buyer.
- All the damage caused by man-made mistake or the improper operation is not included.
- Wearing parts( band saw blades) not included.
