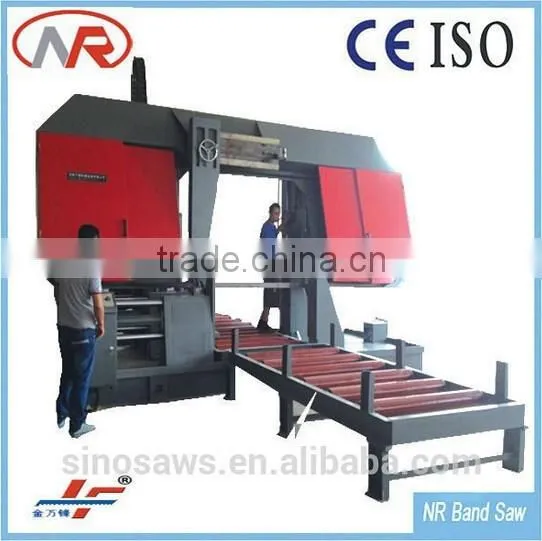

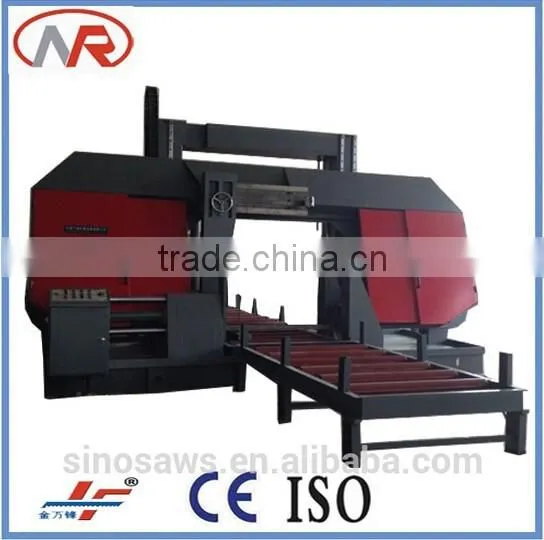

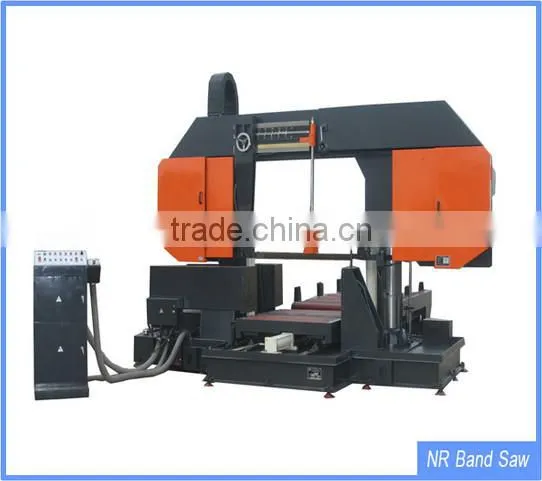

GZ42100 Double Column Hydraulic Horizontal Band saw machine wood splitter
Main features:
1.With hydraulic system to control the cutting speed ,variable speed
2.Useful guide system ,to keep the blade can be use with long time
3.Double column structure ,steady operations
4.Steady cutting ,high accuracy
5.Hydraulic claming, semi-automatic control,sawing high efficiency
Capacity Round: |
1000mm |
Capacity Rectangular: |
1000 X 1000 mm |
Blade Size (Length/Width/Thickness): |
10000×67×1.6 mm |
Power supply: |
380V,50Hz |
Main Motor Rate: |
11KW |
Oil Pump motor rate: |
2.2KW |
Coolant Pump rate: |
0.2KW |
Blade speed(m/min): |
15-70,Inverter |
Dimensions: |
4570X2180X3250MM |
Net Weight: |
13 tons |
| 2 Rigid & Chrome column for Stable & accurate cutting |
| Quick and Easy Blade Speed Change |
| Automatic cut cycle, no miter cutting,straight cutting only |

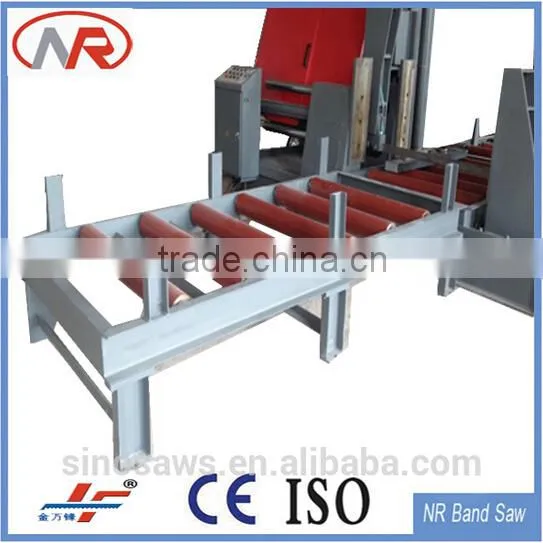

| Automatic step by step material feed |
| Hydraulically controlled dual vise clamping system -2 step |
| Cutting feed rate set & controlled by frequency inverter |
| Bi-Metal Blade for better cutting,low cost and high efficiecy |
| Carbide Guides with Roller Backups |
| Auxiliary lifting cylinders |
| Manually controlled Blade Tension |
| Manual control on saw blade up, saw blade down, saw blade action |
| Built-In Coolant System, Vibration flood coolant system to both saw guides |
We are the professional metal band sawing machine manufacturer from china.we began our business in the year of 1998.Unitll now we have 2 brands-NR&JF,we have many years experience in manufacturing metal band sawing machine,all our products have been CE&ISO certificated.we have the strong capacity in R&D,Design and manufacturing.our main products include two-column band sawing machine,angle band sawing machine,NC band sawing machine,Vertical band sawing machine and spectral grinding machine,etc.with advanced technology and competitive prices,our products sell well in china as well in the world .
1. 24 hours service on Internet and Telephone, free instructions and problem solving
2. Free training to make sure a master of the operating of cnc router for the person who come to our factory
