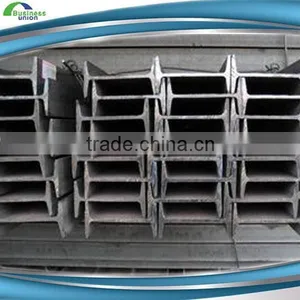

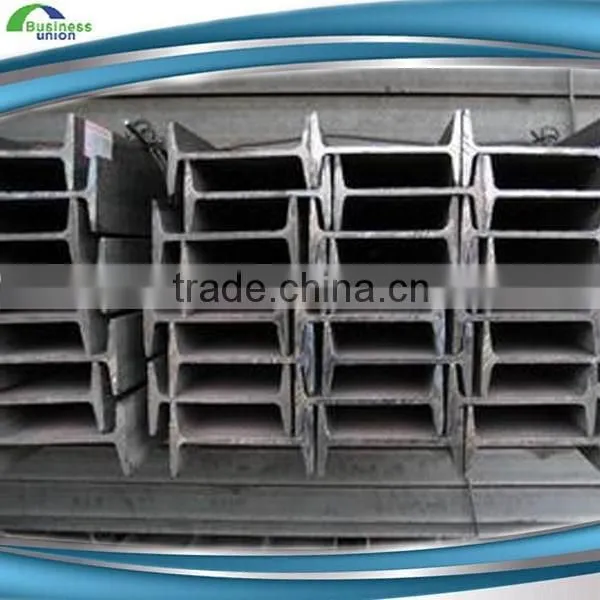

DIN IPE AAAA Steel Beam 100 /120/140/200 Steel Structure Warehouse/Plants
US$ 450 - 800
MOQ: 10 Metric Tons
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Grade:
Other, Q195-Q35B
Technique:
Hot Rolled
Payment & Shipping
Payment Methods:
Port of Shipment:
TIANJIN SHANGHAI
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Structural Steel Beam I Beam / I-beam / I Beam Steel/steel U BeamUS$ 450 - 600MOQ: 10 Metric Tons -
I Beam / I-beam / I Beam SteelUS$ 450 - 600MOQ: 10 Metric Tons
-
A36, Q235,SS400,S235JR, IPE, IPEAA Q345ipe 550 L 13.10 Ipe 550 L 12.50 IPE500 L Metal Supply Section Beam PriceUS$ 450 - 600MOQ: 10 Metric Tons
-
A36, Q235,SS400,S235JR, IPE, IPEAA Q345 Steel I Beam Price Iron Size Metal Structural Metal Supply Section Beam PriceUS$ 450 - 600MOQ: 10 Metric Tons
-
A36, Q235,SS400,S235JR, IPE, IPEAA Q345 Steel I Beam Price Iron Size Metal Structural Steel Profile I Shape Section Beam PriceUS$ 450 - 600MOQ: 10 Metric Tons
Place of Origin
Zhejiang, China
Grade
Other, Q195-Q35B
Technique
Hot Rolled
Thickness
4.5-11m
Application
construction
Length
6-9-12m
Standard
EN
Flange Width
80-500mm
Flange Thickness
2-18mm
Web Width
customized
Web Thickness
customized
Brand Name
Business Union
Model Number
H-2
Feature:
STEEL I BEAM---
| Size | H(mm) |
Tolerance (mm) |
B(mm) |
Tolerance (mm) |
Thickness (mm) |
Tolerance (mm) |
Weight (kg/m) |
| 8# | 80 | ±2.0 | 50 | ±2.0 | 4.5 | ±0.5 | 7.520 |
| 10# | 100 | ±2.0 | 68 | ±2.0 | 4.5 | ±0.5 | 11.261 |
| 12# | 120 | ±2.0 | 74 | ±2.0 | 5.0 | ±0.5 | 13.987 |
| 14# | 140 | ±2.0 | 80 | ±2.0 | 5.5 | ±0.5 | 16.890 |
| 16# | 160 | ±2.0 | 88 | ±2.5 | 6.0 | ±0.5 | 20.513 |
| 18# | 180 | ±2.0 | 94 | ±2.5 | 6.5 | ±0.5 | 24.143 |
| 20A | 200 | ±3.0 | 100 | ±3.0 | 7.0 | ±0.7 | 27.929 |
| 20B | 200 | ±3.0 | 102 | ±3.0 | 9.0 | ±0.7 | 31.069 |
| 22A | 220 | ±3.0 | 110 | ±3.0 | 7.5 | ±0.7 | 33.070 |
| 22B | 220 | ±3.0 | 112 | ±3.0 | 9.5 | ±0.7 | 36.524 |
| 25A | 250 | ±3.0 | 116 | ±3.0 | 8.0 | ±0.7 | 38.050 |
| 25B | 250 | ±3.0 | 118 | ±3.0 | 10.0 | ±0.7 | 42.030 |
| 28A | 280 | ±3.0 | 122 | ±3.0 | 8.5 | ±0.7 | 43.492 |
| 28B | 280 | ±3.0 | 124 | ±3.0 | 10.5 | ±0.7 | 47.888 |
| 30A | 300 | ±3.0 | 126 | ±3.0 | 9.0 | ±0.7 | 48.084 |
| 30B | 300 | ±3.0 | 128 | ±3.0 | 11 | ±0.7 | 52.794 |
IPE BEAMS---
| Size |
Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPE100 | 100x55 | 4.1 | 5.7 | 8.1 |
| IPE120 | 120x64 | 4.4 | 6.3 | 10.4 |
| IPE140 | 140x73 | 4.7 | 6.9 | 12.9 |
| IPE160 | 160x82 | 5.0 | 7.4 | 15.8 |
| IPE180 | 180x91 | 5.5 | 8.0 | 18.8 |
| IPE200 | 200x100 | 5.6 | 8.5 | 22.4 |
| IPE220 | 220x110 | 5.9 | 9.2 | 36.2 |
| IPE240 | 240x120 | 6.2 | 9.8 | 30.7 |
| IPE270 | 270x135 | 6.6 | 10.2 | 36.1 |
IPE AA BEAMS---
| Size |
Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPEAA80 | 80x46 | 3.2 | 4.2 | 4.95 |
| IPEAA100 | 100x55 | 3.6 | 4.5 | 6.72 |
| IPEAA120 | 120x64 | 3.6 | 4.8 | 8.36 |
| IPEAA140 | 140x73 | 3.8 | 5.2 | 10.05 |
| IPEAA160 | 160x82 | 4.0 | 5.6 | 12.31 |
IPE AAAA BEAMS--
| Size |
Depth xFlange width (mm) |
Web Thickenss (mm) |
Flange Thickness (mm) |
Weight (kg/m) |
| IPE AAAA 100 | 95.00x55.00 | 2.90 | 3.20 | 5.20 |
| IPE AAAA 120 | 113.80x 64.00 | 2.90 | 3.30 | 5.80 |
| IPE AAAA 140 | 134.00 x73.00 | 3.20 | 4.20 | 8.28 |
| IPE AAAA 160 | 165.00x 82.00 | 3.70 | 5.30 | 11.70 |
| IPE AAAA 180 | 172.00x 91.00 | 3.75 | 4.70 | 12.55 |
| IPE AAAA 200 | 213.00x 110.00 | 3.75 | 6.30 | 15.50 |
| IPE AAAA 220 | 213.00x 110.00 | 4.00 | 6.30 | 19.75 |
| IPE AAAA 240 | 235.10x 119.50 | 4.00 | 6.90 | 22.85 |
