Color NBR FKM Cassette Seals /combi Seal

Color NBR FKM Cassette Seals /combi Seal thumbnail-1
Color NBR FKM Cassette Seals /combi Seal photo-1
US$ 0.02 - 1 MOQ: 50 Pieces
Key Specifications
Get Latest Price
Standard or Nonstandard:
Standard
Style:
Other, Oil Seal, Oil Seal
Material:
Other, Rubber, NBR Viton, Silicone, ACM,PTFE,HNBR,EPDM,HN-R
Contact Supplier Request Quote Chat Now
Xingtai Huimen Seals Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin Or customer request
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Standard or Nonstandard Standard
Style Other, Oil Seal, Oil Seal
Material Other, Rubber, NBR Viton, Silicone, ACM,PTFE,HNBR,EPDM,HN-R
Place of Origin Hebei, China
Brand Name CFY
Model Number oil seal

Cassette Seals

Color NBR FKM Cassette Seals /combi seal

Product description

  • Design: special types, on enquir
  • Outer casing: elastomer /sheet metal
  • Spring-loaded sealing lip
  • Additional dust lips
  • High resistance to dirt ingress
  • Robust solution.

Product advantages

  • Lengthening of maintenance interval for individual units
  • Shaft must not be hardened or ground
  • Old solution can usually be replaced by Cassette Seal without change to housing
  • The shaft must not be machined on maintenance or seal replacement.

Application

These examples of use provide general information on the primary applications for Cassette Seals and their performance in relation to dirt from the outside. Cassette Seals(types 1, 2 or 3) must be selected taking into account the application conditions(shaft speed, oil temperature, etc.).

  • Agricultural machinery (tractors) - Axles: pinions
  • Construction machinery (road rollers, excavators, fork-lift trucks, mixers)
    - Axles: pinions
    -Power take-off drives
  • Commercial vehicles (lorries, busses, trailers, special vehicles)
    -Axles: hubs
    -Axles: propeller shafts*
    -Axles: pinions.

Material

Acrylonitrile-butadiene rubber

Code NBR 80°
Colour Black

Fluoro elastomer

Code FKM 80°
Colour Red brown
Metal insert SAE1008~1010
Spring SUS

Operating conditions

Materials combination NBR 80° FKM 80°
T <80°C <100°C
v to 7 m/s to 9 m/s
P max. 0,05Mpa/0,5 bar max. 0,05Mpa/0,5 bar

Fitting & installation

Shaft

Tolerance ISO h8
Runout IT 8
Roughness Rz=10...16μm

Careful fitting according to DIN 3760 is a prerequisite for the correct function of the seal → Technical Manual.
Further information on enquiry.

Range of dimensions for shafts-ΦD1

Cassette Seal type 1 55 ... 133.35mm

Article list

Color NBR FKM Cassette Seals /combi seal

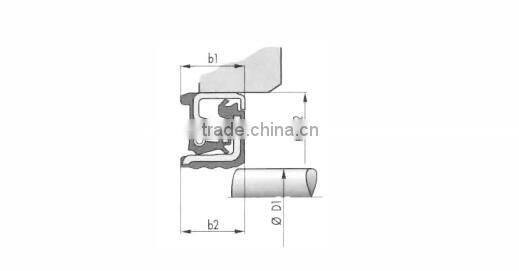

D1 D2 b1 b2 Material
55 80 12.5 14 FKM 80°
95 130 16 - FKM 80°







  Hot sale Oil Seal  Factory:

 Color NBR FKM Cassette Seals /combi seal



Warehouse:




Color NBR FKM Cassette Seals /combi seal

Shipping:

Color NBR FKM Cassette Seals /combi seal


Welcome to contact us for more information about rubber oil seals
