Br-Solar has professional techniques and first-class sales team working for the whole world solar street lighting solutions, providing advanced designs according to scientific data of different cities of countries. We runs on passion and commitment for a cleaner energy future within the renewable energy sector.

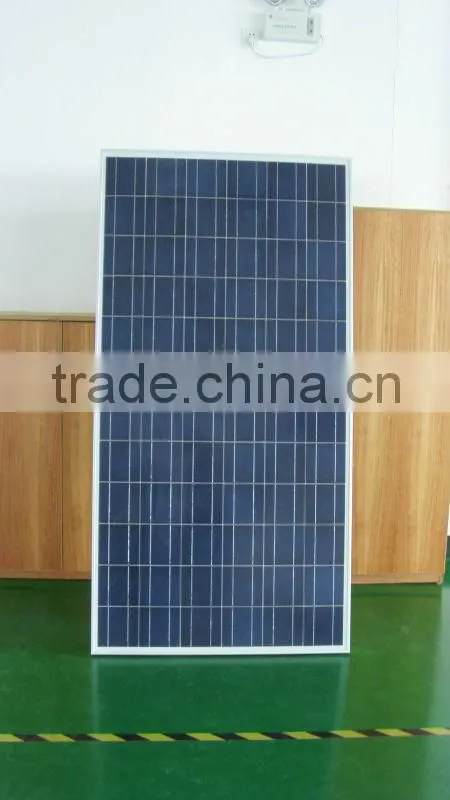

250W Poly flexible Solar panels / PV Modules for high Solar Modules
Technical Specification:
Specification for 280W Solar Modules | |
Product Name: |
280Watts Solar Panel |
Model Number: |
BR-P280W |
Place of Origin: |
China |
Solar cell spec: |
156*156 Poly crystalline silicon solar cells |
Specifications: |
PV module with 280W maximum power |
Max. system voltage: |
1000V DC |
Power tolerance: |
0%-3% |
Surface max. load capacity: |
70m/S(200KG/sq.m) |
Weight: |
22.5KG |
Dimensions: |
1950mm*990mm*50mm |
Electrical characteristics: | |
Vmp(V): |
35.2V |
Imp(A): |
7.95A |
Voc(V): |
44.8V |
Isc(A): |
8.33A |
Cell efficiency(%): |
≥16.4% |
Module efficiency(%): |
≥14.4% |
FF(%): |
70-72% |
Conditions (STD): | |
Bypass Diodes |
3pcs 15A |
Irradiance: |
1000W/M2 |
Temperature: |
25°C |
Absolute maximum rating: | |
Operating temperature: |
-40°C to +80°C |
Storage temperature: |
-40°C to +80°C |
Packing: |
2 PCS/CTN |
Payment: |
30% TT in advance, 70% before shipment or against copy of B/L. |
Junction box |
TUV Certified,MC4 Connector, Water-proof. |
Glass |
High-Transmission,Low iron tempered glass. |
Limited Warranty |
Warranty: 5 years. |

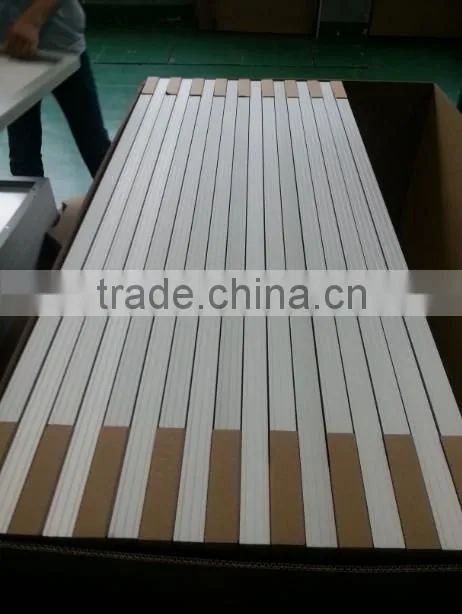

Solar PV Module Panel Pack: carton and pallet packing;
WILL BE APPLIED IN
SOLAR STREET LIGHTS,
SOLAR GARDEN/ LANDSCAP/ LAWN LIGHTS,

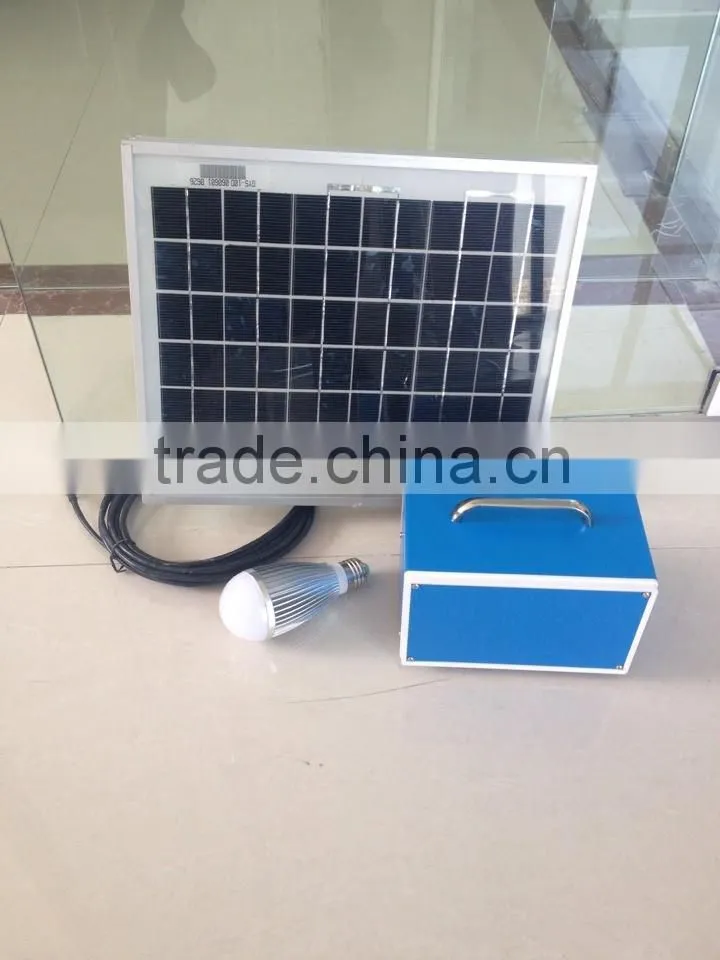

SOLAR HOME SYSTEM,
SOLAR WATER PUMP,
SOLAR SMALL APPLICATIONS,ETC
CERTIFICATRES
OUR SERVICES
What we offer
Quality solar systems are offered at competitive pricing
Excellent sales and customer service skills
We are not a pushy sales team , we believe in honesty and integrity & doing RIGHT by our customers
Before and after sales service
Warranty
BRIGHT SOLAR Guarantees the purchaser for the period of FIVE (5) years for the the solar panels.
Installation
Bright offers detailed instructions and videos for installation. Besides, We could provide onsite installation training for 7 to 15 days accordingly.
4. Applications
5. SOME OF OUR PROJECTS
THANKS FOR CHOOSING YANGZHOU BRIGHT SOLAR SOLUTIONS CO., LTD, ANY REQURIE ARE WELCOME :-)
