Home > Products > Solar Panel---Mono Type > Hot Selling Solar Cell Panel From China Factory Quality Choice
Hot Selling Solar Cell Panel From China Factory Quality Choice
- 5000 Piece / Pieces per Month
- For Shanghai
- T/T L/C D/P D/A Credit Card PayPal
- Economic price 100w 200w 300w 400watt ABS Housing Solar Cell All In One Integrated Solar Street Light
- Wall Mounted Lifepo4 51.2v 100ah 200ah Lfp battery for Solar System
- 10kwh 20kwh Home Solar Lithium 48v 200ah LiFePO4 Battery
- Residential 5kw Complete Solar Panel Kit For Home Solar Power System With Lithium Or Lead Acid Battery
- Home Hybrid Solar 10KW 40KW 50KW Whole Set Kit Solar Energy System Home Hybrid Solar Power System
- TENTEK TON-5150S stackable solid-state Lithium battery
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | BR | Model Number: | BR-M130 |
Specification: | Normal | Application: | Industrial | Output Voltage (V): | 24V |
Load Power (W): | 130W | Solar Power (W): | 130W | Work Time (h): | 12 |
Product Description

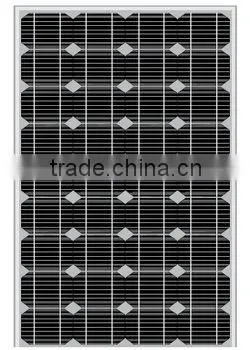

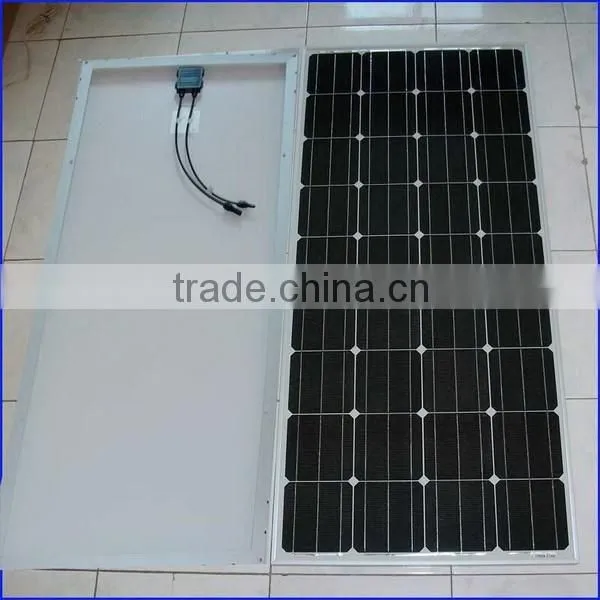

Hot Selling Solar Cell Panel From China Factory
Product Name: | 130Watts Mono Solar Panel | ||
Model Number: | BR-M130W 1480*620*35mm | ||
Standard: | TUV,IEC61215,CE & EN | ||
Place of Origin: | China | ||
Solar cell spec: | 156*156 Monocrystalline silicon solar cells | ||
Specifications: | PV module with 130W maximum power | ||
Max. system voltage: | 1000V DC | ||
Power tolerance: | 0%-3% | ||
Surface max. Load capacity: | 70m/S(200KG/sq.m) | ||
Weight: | 12KG | ||
Dimensions: | 1480*620*35mm | ||
Electrical characteristics: | Photo | ||
Open circuit voltage(V): | 21.6V | ||
Short circuit current(A): | 8.02A | ||
Max. power voltage(V): | 17.2V | ||
Max. power current(A): | 7.56A | ||
Cell efficiency(%): | ≥17.0% | ||
Module efficiency(%): | ≥12.9% | ||
FF(%): | 70-72% | ||
Conditions (STD): | |||
Irradiance: | 1000W/M2 | ||
Temperature: | 44°C | ||
Absolute maximum rating: | |||
Operating temperature: | -40°C to +80°C | ||
Storage temperature: | -40°C to +80°C | ||
Packing: | 2 PCS/CTN | ||
Junction box | TUV Certified,MC4 Connector,Water-proof. | ||
Glass | High-Transmission,Low iron tempered glass. | ||
Limited Warranty | Workmanship for 5 years,90% of minimum power output over 12 years,80% over 20 years. High reliability with guaranteed +3% power output tolerance, (Lifespan:20-25 Years) | ||
Price validity | 30days after quoting |
Working flow
1.Q:How many Model Number about your Solar Panels?
A: BR-M80W (6*12=72Cells)
2.Q:How Many Years Of your Warranty and the life Span and Efficiency ?
A: We can Provide more than 5 years warranty and the Life span 20-25years.90% minimum power output over ten years,80% over 25 years
3.Q:What’s the main difference between mono and polycrystalline solar panel?
A: production process and cost. Polysilicon technology is more mature since it is an early technology compared with Monosilicon.
4.Q:How Many certificates you get for Solar Panels and which area can be used?
A: We are a CE,IEC,TUV,RoHS,ISO SONCAP,SASO etc certificated supplier and the panel can be used in solar street lightinging or solar system etc.
Our Competitive Produvts:
1 Solar Street Lights & LED Street Lighting 15W—120W;
2. Solar Garden Lights & Solar Landscape Lights 5W—30W;
3. Solar Battery: 4.5Ah—250Ah/12V, 200Ah—3000Ah/2V;
4. Solar Panels & Solar Modules 5W—300W Poly & Mono ;
5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating;
6. Solar Home Lighting System/Kits : 5W—5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power;
Satisfy our experienced service, price quality, from your inquiry today!
