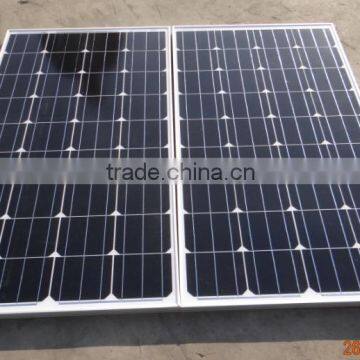

Sunpower 190W Mono Solar Panel Price List China Supplier

Specification for 190W Mono Solar Modules

Product Name:

190Watts Solar Panel

Model Number:

BR-P190W

Place of Origin:

China

Solar cell spec:

156*156 Monocrystalline silicon solar cells 72(6*12)pcs in serices

Specifications:

PV module with 190W maximum power

Max. system voltage:

1000V DC

Power tolerance:

0%-3%

Surface max. load capacity:

70m/S(200KG/sq.m)

Weight:

13.5KG

Dimensions:

1580mm*808mm*35mm

Electrical characteristics:

Vmp(V):

35.8V

Imp(A):

5.31A

Voc(V):

43.6V

Isc(A):

5.66A

Cell efficiency(%):

≥16.4%

Module efficiency(%):

≥14.4%

FF(%):

70-72%

Conditions (STD):

Bypass Diodes

3pcs 15A

Irradiance:

1000W/M2

Temperature:

25°C

Absolute maximum rating:

Operating temperature:

-40°C to +80°C

Storage temperature:

-40°C to +80°C

Packing:

2 PCS/CTN

Payment:

30% TT in advance, 70% before shipment or against copy of B/L.

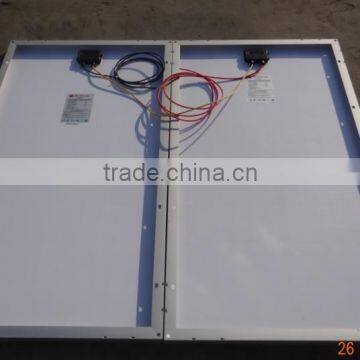

Junction box

TUV Certified,MC4 Connector, Water-proof.

Glass

High-Transmission,Low iron tempered glass.

Limited Warranty

Warranty: 5 years.
90% of minimum power output over 10 years,80% over 25 years.
High reliability with guaranteed +3% power output tolerance,
(Lifespan:20-25 Years)
