40W professional manufacuturer USB Function home application solar energy home system

FOB Price

USD $170 - $180 / Piece

1000 Pieces(Min.Order)

Supply Ability 6000 Piece / Pieces per Month
Port SHANGHAI
Payment Terms:T/T Credit Card PayPal

Request Sample Customized Request Download Product Catalog

Contact Now

Get lowest price Inquiry Basket

Product Details

Place of Origin:	Jiangsu, China	Brand Name:	BR SOALR	Model Number:	BR300W-18AH
Specification:	Normal	Application:	Home	Output Voltage (V):	DC12V/220V
Load Power (W):	0.2KWH/Day	Solar Power (W):	30W	Work Time (h):	8-10h

Product Description

40W professional manufacuturer USB Function home application solar energy home system

Advantage

BR Solar Advantage:

9 years solar designing and exporting experience
Successfully appiled in more than 50 countries
IS09001, CE, RoHS, IEC, FCC, SONCAP, SASO, PVOC, CCPIT, CCC
15 working days delivery time
OEM/ODM avaliable

Product Overview

Model	BR300W-18AH Generate 0.2KWH/Day
Output Voltage(V)	DC12V4 Output Terminals and 220V2 Output Terminals
Solar Panel:1PC	Lifespan:20-25 Years	Tech Specification
	Power	40W
	VOC	21.5V
	ISC	2.57A
	IMP	2.33A
	VMP	17.2V
Solar Battery:1PC	Lifespan:5-8 Years	Tech Specification
	Capacity(AH)	12V 18AH
	Type	Maintenance-free, deep cycle, Lead Acid Battery
	Floating Charge Voltage	13.8V
	Cut-off Voltage	14.4V
	Installation	Buit-in
Integrated Inverter &Controller:1PC	Lifespan:5-8 Years Controller 5-8 Years Inverter	Tech Specification
*Size 290200208mm*	Controller	12V 10A
	Inverter Rated Power(W)	300w
	Input Power(V)	12V
	Output Power	220V
	Frequency(Hz)	50Hz
	Wave Form	Pure Sine Wave
	Low Voltage Protection(V)	DC 10.2V
	Over Voltage Protection(V)	DC 15V
	Protection Function	Overload,Short-circuit Protection
Fittings	Lifespan:5-8 Years	Tech Specification
	Cable for solar panel	1PC 5M---2*1.5MM2
	LED Lamp (E27)	4PC 3W/12V,Plastic
	Cable for LED Bulb	4PC 7M---2*0.3MM2
	USB Cable	1PC 10 in 1, All Connection
	Reference: DC Using 20 Hrs AC Using 3 Hrs Including Electrical Fan and Notebook

About Solar Panel for Home

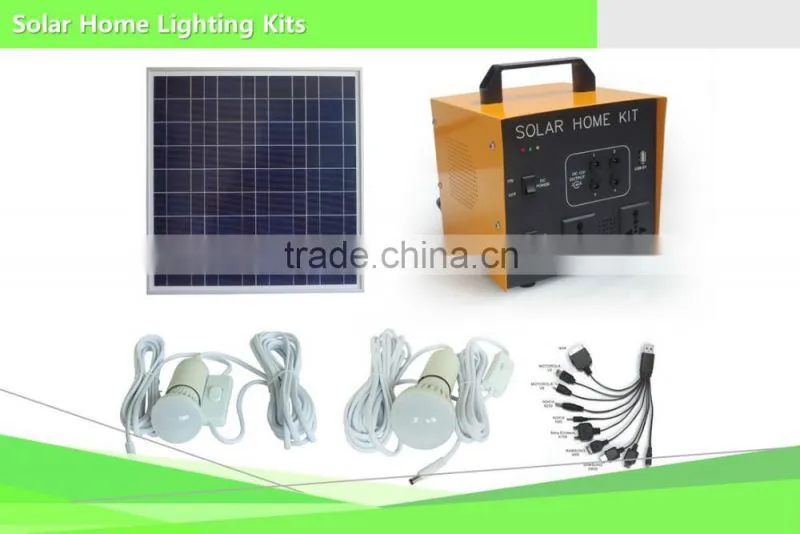

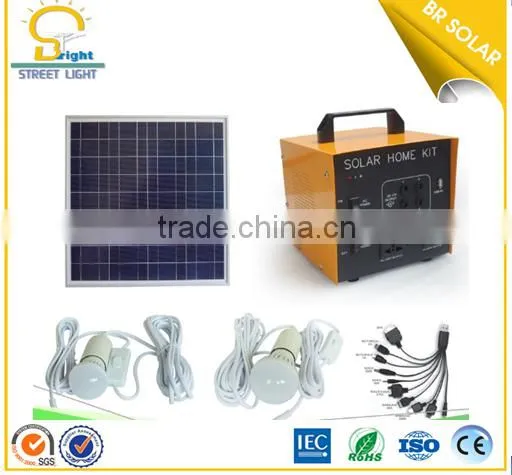

The components of the solar lighting system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery and inverter.

Benefits of solar lighting system

Economical:30%-50% power savings on electricity bills
Non-pulluting: 1kwp solar installation reduces ton of CO2(carton dioxide) per annum.
NO Maintenance: Once installed, it lasts for long time and requires little attention

About US

Yangzhou Bright Solar Solution Co., Ltd

Established in 1997, an ISO9001:2000, CE&EN, Rohs, IEC, Sonacp, PVOC&COC,

SASO, FCC, CCPIT, CCC, TUV approved manufacturer and exporter for solar

street lights, LED street light, solar battery & UPS battery, solar panels, solar

controllers, solar home lighting kits.

Our Competitive products:

Solar street lights & Solar LED street lighting 15w-120w
Solar garden lights & Solar landscape lights 5w-30w
Solar battery 3w-310w
Solar controllers 5A-60A
Solar home lighting system 5w-5000w
Inverter 300w-10000w
High post lamps 15m-30m

After Sale Service

Warranty:

BR SOLAR guarantees the purchaser for a period of two years from the date of B/L

Detailed Rules of Maintain:

Under normal circumstances, any quality problems caused by BR SOLAR, our group is to provide maintenance services free of charge

Product Maintenance days:

BR SOLAR promises to respond with customer’s questions within 24 working-hours
BR SOLAR promises to give technical support if customers need when doing installation
For the problems need our technical people go site, we will function within 30 working days.
