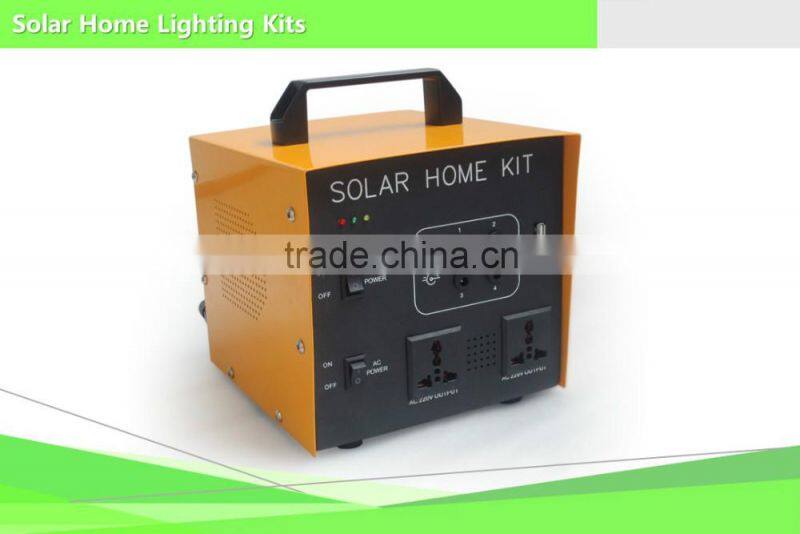

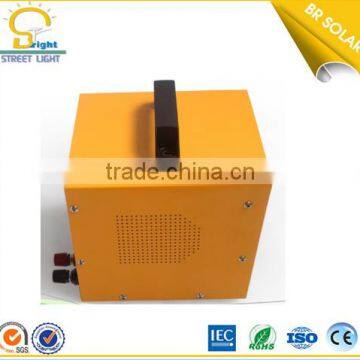

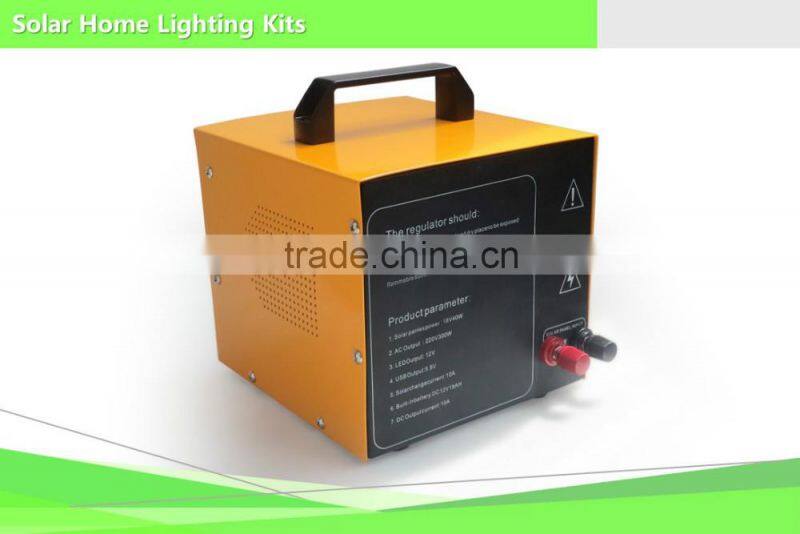

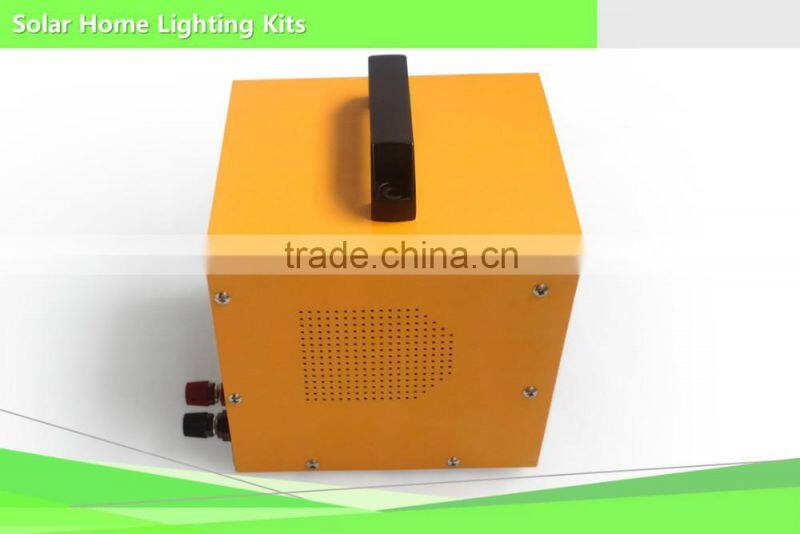

USB Function Bright solar Poly Crystalline Silicon Long Life Home Solar Kit
BR Solar Advantage:
- 9 years solar designing and exporting experience
- Successfully appiled in more than 50 countries
- IS09001, CE, RoHS, IEC, FCC, SONCAP, SASO, PVOC, CCPIT, CCC
- 15 working days delivery time
- OEM/ODM avaliable
Model | BR300W-18AH Generate 0.2KWH/Day | |
Output Voltage(V) | DC12V*4 Output Terminals and 220V*2 Output Terminals | |
Solar Panel:1PC | Lifespan:20-25 Years | Tech Specification |
Power | 40W | |
VOC | 21.5V | |
ISC | 2.57A | |
IMP | 2.33A | |
VMP | 17.2V | |
Solar Battery:1PC | Lifespan:5-8 Years | Tech Specification |
Capacity(AH) | 12V 18AH | |
Type | Maintenance-free, deep cycle, Lead Acid Battery | |
Floating Charge Voltage | 13.8V | |
Cut-off Voltage | 14.4V | |
Installation | Buit-in | |
Integrated Inverter &Controller:1PC | Lifespan:5-8 Years Controller 5-8 Years Inverter | Tech Specification |
Size 290*200*208mm | Controller | 12V 10A |
Inverter Rated Power(W) | 300w | |
Input Power(V) | 12V | |
Output Power | 220V | |
Frequency(Hz) | 50Hz | |
Wave Form | Pure Sine Wave | |
Low Voltage Protection(V) | DC 10.2V | |
Over Voltage Protection(V) | DC 15V | |
Protection Function | Overload,Short-circuit Protection | |
Fittings
| Lifespan:5-8 Years | Tech Specification |
Cable for solar panel | 1PC 5M---2*1.5MM2 | |
LED Lamp (E27) | 4PC 3W/12V,Plastic | |
Cable for LED Bulb | 4PC 7M---2*0.3MM2 | |
USB Cable | 1PC 10 in 1, All Connection | |
Reference: DC Using 20 Hrs AC Using 3 Hrs Including Electrical Fan and Notebook
| ||
About Solar Panel for Home

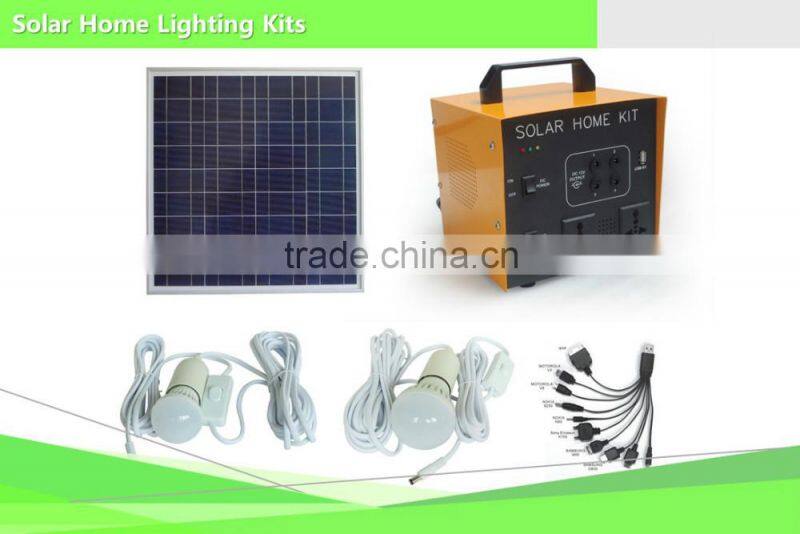

The components of the solar lighting system includes solar panel, lighting bulbs, integration controlling box inside with charge controller, solar battery and inverter.
Benefits of solar lighting system
- Economical:30%-50% power savings on electricity bills
- Non-pulluting: 1kwp solar installation reduces ton of CO2(carton dioxide) per annum.
- NO Maintenance: Once installed, it lasts for long time and requires little attention
Yangzhou Bright Solar Solution Co., Ltd
Established in 1997, an ISO9001:2000, CE&EN, Rohs, IEC, Sonacp, PVOC&COC,
SASO, FCC, CCPIT, CCC, TUV approved manufacturer and exporter for solar
street lights, LED street light, solar battery & UPS battery, solar panels, solar
controllers, solar home lighting kits.
Our Competitive products:
- Solar street lights & Solar LED street lighting 15w-120w
- Solar garden lights & Solar landscape lights 5w-30w
- Solar battery 3w-310w
- Solar controllers 5A-60A
- Solar home lighting system 5w-5000w
- Inverter 300w-10000w
- High post lamps 15m-30m
Warranty:
BR SOLAR guarantees the purchaser for a period of two years from the date of B/L
Detailed Rules of Maintain:
Under normal circumstances, any quality problems caused by BR SOLAR, our group is to provide maintenance services free of charge
Product Maintenance days:
- BR SOLAR promises to respond with customer’s questions within 24 working-hours
- BR SOLAR promises to give technical support if customers need when doing installation
- For the problems need our technical people go site, we will function within 30 working days.
