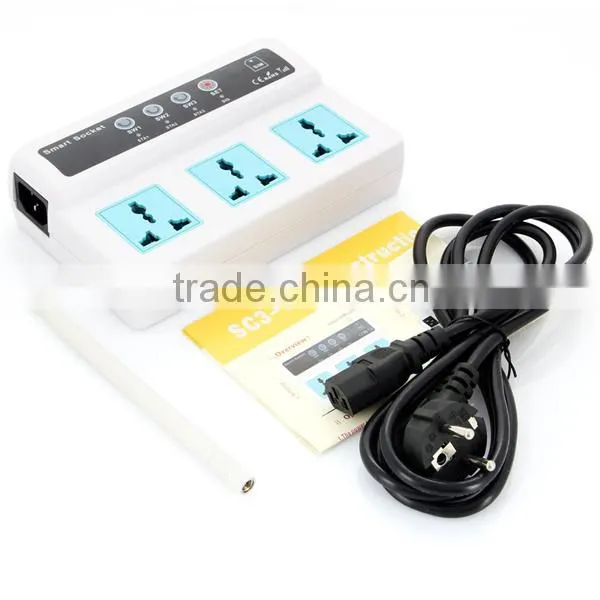

2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously

2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously thumbnail-1
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously thumbnail-2
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously thumbnail-3
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously thumbnail-4
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously thumbnail-5
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously thumbnail-6
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously photo-1
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously photo-2
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously photo-3
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously photo-4
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously photo-5
2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously photo-6
US$ 30 - 40 MOQ: 50 Units
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
GSM POWER SOCKET
Model Number:
GSM03
Contact Supplier Request Quote Chat Now
Shenzhen Bangdao Electronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name GSM POWER SOCKET
Model Number GSM03
Operating Temperature -10 ~ 50 centigrade degree
Max. Current 10A
Max. Voltage 245V

2200W Universal Smart Home Extension Socket Support ONE SIM Remote Controlled THREE GSM Power Sockets Simultaneously



Specifications:

Rated current: 10A

Rated voltage: 90V-245V

Rated frequency: 50HZ-60HZ

Rated Power: 2200W

Using the temperature range: -10C-55C

Voltage range: 90V-245V AC





Features:

-Brand new and high quality

-You can control the GSM switch through rings or short messages

-It can control water heaters, electric motors, electric doors, lights, rice cookers and other appliances

-Whether you're on the road or in the office, easy and low-cost to control remote appliances

-Wireless remote water pump

-Control the rice cooker in the office

-Wireless control lights, fans

-Wireless control power, audio and other equipment

-Feeding the family pet via the GSM switch

-Other household or industrial control applications



Instructions:

  1. 1. The power card plug in interfac
  2. 2. Insert SIM Card: Installed your SIM card before power on, non-installed SIM card after power on! A short initialization time (30 seconds) after power on, related operations after initialization. GSM switch is disconnected by default
  3. 3. Turn on the juice Waiting for SIM card to connect the GSM network (according to local operators and signal level, usually about 1 minute to get into the network), and observe the SIG lights on the panel (the start is 1 second flash), when flash becomes 4 seconds, the proof has entered the GSM network, Then you can set and control the associated operation
  4. 4. Set Password: Must set up the user password first, GSM switch initial password is: 000000. Set Password contents 0-9Arabic numberals (Not letters or symbols, otherwise it will prompt an error), Set Password contents format: "SN +six old password + NEW + six new password. " For example, customers want set their passwords to: "123456", then he should edit the message content: "SN0000NEW123456" issued to GSM switch, if you set successfully, you will receive the message: "NEW SN SETOK NEW SN IS 123456 (New password). The password with the power-down
  5. 5. Set master number can set up 10 groups, There are two ways to set the master number: one is through SMS, The other one is through the Set button.  Such as the user's password is 123456, trying to set 13788889999 to master number, and then edit the message content: "SN123456SET13788889999" issued to GSM switch, if successfully, you will receive a message: "13788889999SETOK". Only the master number can control the outlet by dialing, when the master number dial number of GSM swithch, the switch status will change, and then hang up automatically after one second, does not produce any cost. Master numbers with a power-down memory function
  6. 6. Socket control: SMS/Dial/Button
