Specifications
1.simple structure2.Heating up fast
3.Energy Saving
4.Meet Rohs
Introduction:
It is a high temperature (1650deg C) co-sintered ceramic heater that is made by printing a metal resistor on a sheet of alumina ceramic.
Advantages:
1. simple structure
2. Heating up fast. within 10 seconds, can reach to 100°C-230°C;30s can 500°C-700°C
3. High thermal efficiency, energy saving with no pollution. Meet Rohs requirement.
4. Even heating ,no flame ,and use safely
5. Longlife
Main materials:
1. ceramic substrate: ≥95% Alumina ceramics
2. wire: φ0.5mm diameter nickel wire
3. Sleeve: Teflon
4. heating material: tungsten(W)
Main features
1.Electrical Property
1Insulation Resistance: R≥5*108 Ω
2Withstand Voltage: 1500VAC,1 minute ;1800VAC,1 minute
3750VAC, 1 minute,4000VAC,0.1 minute
3Max Voltage: 230VAC/120VAC
2.Physical properties
1Density: ≥3.6g/cm3
2.Bending Strength: ≥ 270MPa
3Compression Strength: 2700MPa
4Tensile Force: 180°C direction from leads: ≥5kgf
90°C direction from leads: ≥3.5kgf
Temperature Property
1.Working Temperature:100°C-230°C
2.Max Temperature: 500°C-700°C
3.Heating Rate: within 30sec., can reach to working temperature; within 90 sec. can reach to max temperature.

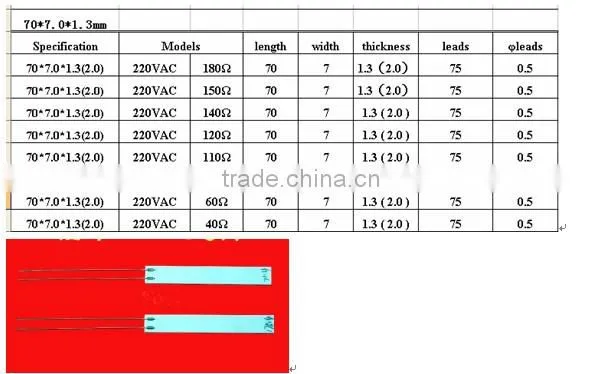

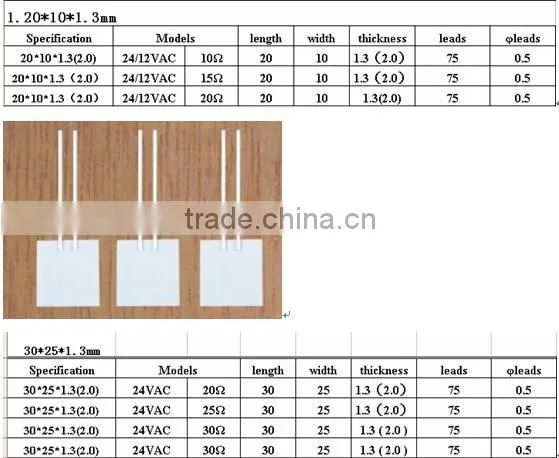

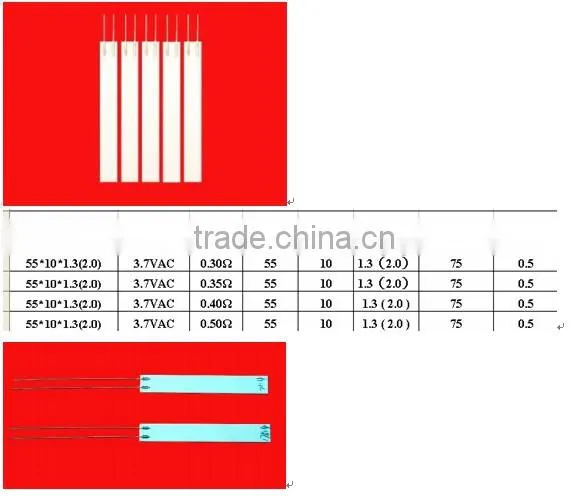

Heater Models
