Hot Sale Energy-efficient Biomass Pellet Burner

Specifications

1.Biomass Pellet Burner
2. High temp. and power
3.Fast heating up
4.Long life
5.Meet Rohs

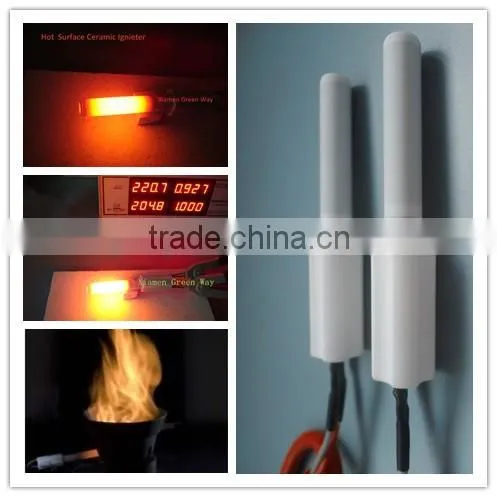

HIGHLY DURABLE AND ENERGY-EFFICIENT XIAMEN GREEN WAY’S IGNITER

----ceramic hot surface igniters for the sake of environment.



Xiamen Green Way  is your best choice for high level quality and best price ceramic igniter for biomass burnerswith the advantages of long service time, fast heating rate, energy-efficient and eco-friendly.





Characteristic

1.High temperature-resistance ceramic heating element which can reach a permanent working temperature above 750°C



2.Energy saving, super fast heating-up



3.Air can through and around inside and outside of the heater.

Heat can be transfered from both inside and ouside of the heating element.



4.Electrically oxidation and corrosion-resistant



5.High load-bearing capacity(thermal shock resistance, cycles)



5.Customization the igniters according to customers’ specific requirement.





Application

One special application area for Green Way’s high temperature ceramic igniters is in heating systems that use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass in a very short time while retaining very low emission values. This can be perfectly achieved by Green Way’s hot surface ceramic igniters.



Ceramic hot surface igniters for pellet boilers need only approx. 1/10 of the energy of that needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means minimal emissions!



Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.







Mass customization is available.



1	Part No.	G901-4
2	Usage	ignition
3	Working Voltage	230VAC
4	Power	150-200(W)
5	Dimension of product	Standard Dimension
6	Cable	500 mm long silicone cable
7	Advantages	(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket   (2)Air can flow through and around inside and outside of heater   (3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C   (4)Lifetime up to 100,000 heating cycles, depending on operating conditions   (5)Oxidation and corrosion-resistant   (6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!   (7)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible.
