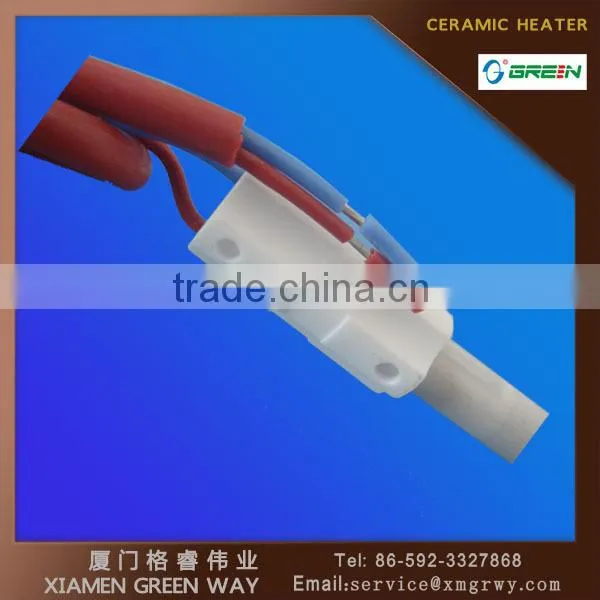

Help CenterChina Wholesale Good Quality Cheap Price Wood Pellet Heater Manufacturer
Related Products
-
Hot Surface Biomass Burner With Ceramic IgniterUS$ 8 - 18MOQ: 100 Sets -
230V High Quality Igniter Wood Pellet FireplaceNegotiableMOQ: 100 Pieces
-
230V Hot Sale Wood Pellet Boiler Igniter Seller ChinaNegotiableMOQ: 100 Sets
-
230V 60ohm High Quanlity China Ceramic Igniter for Biomass BurnersNegotiableMOQ: 100 Sets
-
230V Hot Sale Biomass Pellet Igniter for FireplaceNegotiableMOQ: 100 Pieces
Specifications
1.Wood pellet heater2. Own factory
3.Heating up 800C in 20s
4.Long life
5.Meet Rohs
Xiamen Green Way is your best choice for high level quality and best price wood pellet heater
for pellet burner with the advantages of long service time, fast heating rate, energy-efficient
and eco-friendly.
Characteristic
1.High temperature-resistance wood pellet heater which can reach a permanent working temperature
above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application
One special application area for Green Way’s high temperature wood pellet heater is in heating systems
that use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass
in a very short time while retaining very low emission values. This can be perfectly achieved by Green Way’s hot surface ceramic heater igniter.
Ceramic heater hot surfacewood pellet heater for pellet burner need only approx. 1/10 of the
energy of that needed by hot air fans and ignition blowers. Their ignition capacity lies between
120 and 200 Watt. Depending on the positioning of the ignition element in the boiler, the ignition
time of approx. 60 seconds is extremely short. This also means minimal emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
Mass customization is available.
1 |
Part No. |
G78105-61 |
2 |
Usage |
wood pellet heater |
3 |
Working Voltage |
230VAC |
4 |
Power |
(150 -250) W |
5 |
Dimension of product |
Standard Dimension |
6 |
Cable |
0.5m OR accordingly |
7 |
Advantages |
(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket (2)Air can flow through and around inside and outside of heater (3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C (4)Lifetime up to 100,000 heating cycles, depending on operating conditions (5)Oxidation and corrosion-resistant (6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
|
