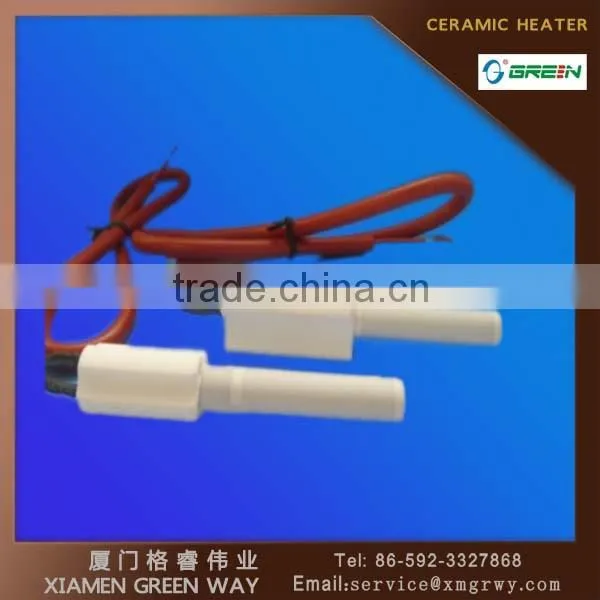

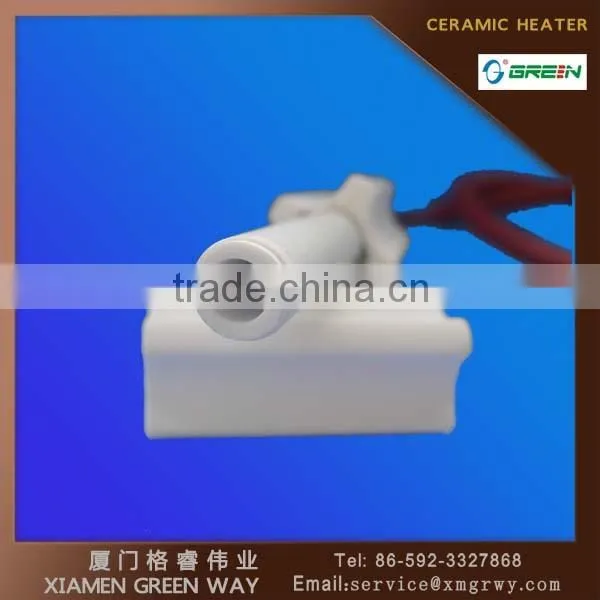

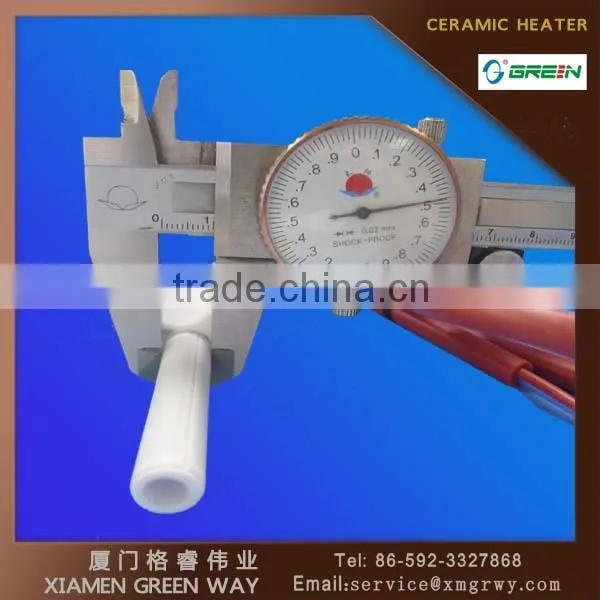

Help CenterBigger Holder 25mm OD Pellet Igniter for Wood Heating Boilers
Related Products
-
Eco-Friendly Wood Chips Igniter for Wood Pellet BoilersNegotiableMOQ: 100 Pieces -
230V 80ohm Furnace Igniter for Biomass IgnitionUS$ 8 - 18MOQ: 100 Sets
-
220V 170W High Temperature Ceramic Igniters for Biomass BurnerNegotiableMOQ: 100 Pieces
-
230V 80ohm Ceramic Igniter for Pellet StoveNegotiableMOQ: 100 Sets
-
Hot Temperature Biomass Boiler Burner IgniterUS$ 8 - 18MOQ: 100 Sets
Specifications
1.Igniter for wood pellet boilers2. High temp. and power
3.Fast heating up
4.Own factory
5.Meet Rohs
Xiamen Green Way is your best choice for high level quality and best price ceramic igniter for
biomass burnerswith the advantages of long service time, fast heating rate, energy-efficient and eco-friendly.
Characteristic
1.High temperature-resistance ceramic heating element which can reach a permanent working temperature above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application
One special application area for Green Way’s high temperature ceramic igniters is in heating
systems that use solid fuels such as wood pellets as energy source. The challenge here is to
ignite the biomass in a very short time while retaining very low emission values. This can be
perfectly achieved by Green Way’s hot surface ceramic igniters.
Ceramic hot surface igniters for pellet boilers need only approx. 1/10 of the energy of that needed
by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending
on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is
extremely short. This also means minimal emissions!
Mass customization is available.
1 |
Part No. |
G90105-6 |
2 |
Usage |
wood pellet boilers igniter |
3 |
Working Voltage |
230VAC |
4 |
Power |
150 -200(W) |
5 |
Dimension of product |
Standard Dimension |
6 |
Cable |
500 mm long silicone cable |
7 |
Advantages |
(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
(2)Air can flow through and around inside and outside of heater
(3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
(4)Lifetime up to 100,000 heating cycles, depending on operating conditions
(5)Oxidation and corrosion-resistant
(6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
|
