Specifications
1.Igniter for wood pellet boilers2. High temp. and power
3.Fast heating up
4.Long life
5.Meet Rohs
Xiamen Green Way is your best choice for high level quality and best price ceramic igniter for
biomass burnerswith the advantages of long service time, fast heating rate, energy-efficient
and eco-friendly.
Characteristic
1.High temperature-resistance ceramic heating element which can reach a permanent working
temperature above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application
One special application area for Green Way’s high temperature ceramic igniters is in heating systems that
use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass in a very
short time while retaining very low emission values. This can be perfectly achieved by Green Way’s hot surface
ceramic igniters.
Ceramic hot surface igniters for pellet boilers need only approx. 1/10 of the energy of that needed
by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending
on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is
extremely short. This also means minimal emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
Mass customization is available.
1 |
Part No. |
G90105-5 |
2 |
Usage |
wood pellet boilers igniter |
3 |
Working Voltage |
230VAC |
4 |
Power |
150 -200(W) |
5 |

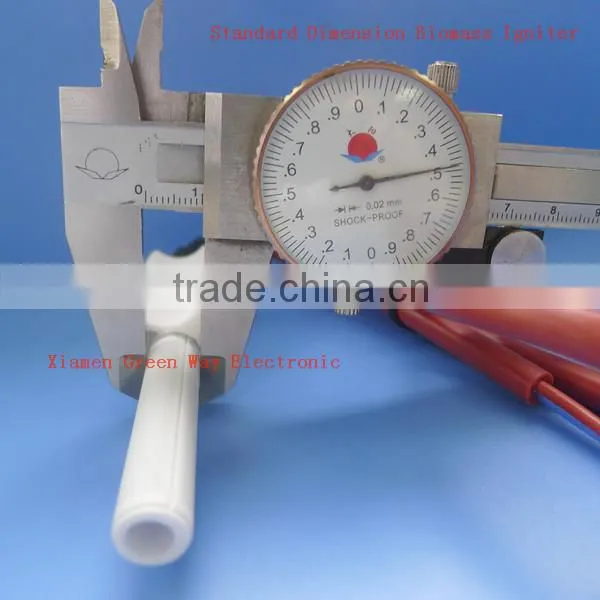

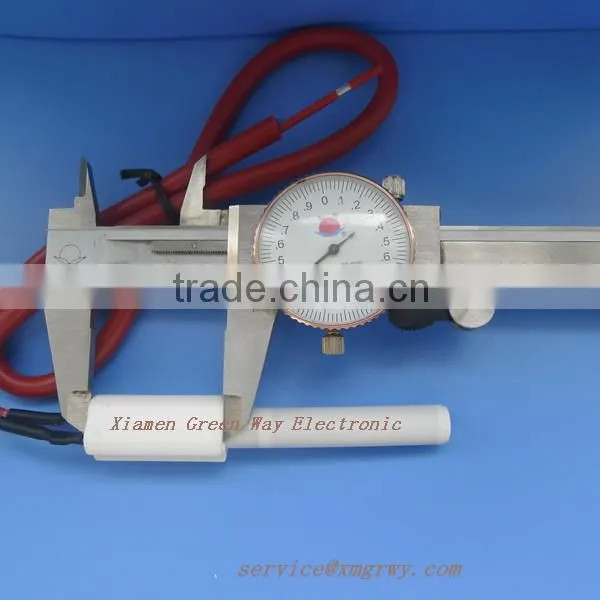

Dimension of product |
Standard Dimension |
6 |

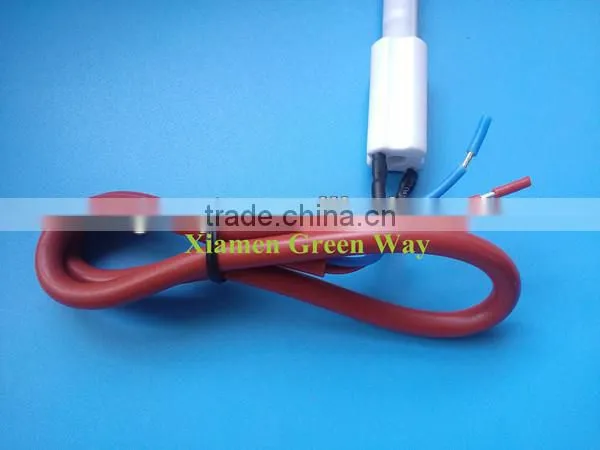

Cable |
500 mm long silicone cable |
7 |
Advantages |
(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
(2)Air can flow through and around inside and outside of heater
(3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
(4)Lifetime up to 100,000 heating cycles, depending on operating conditions
(5)Oxidation and corrosion-resistant
(6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
(7)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible. |
