Help Center230V Hottest Sale Ceramic Lighter for Wood Chip Stove
Related Products
-
230V Hot Sale Ceramic Igniter for Wood Pellet StoveNegotiableMOQ: 10 Pieces -
230V Hot Sale Ceramic Igniter for Biomass BoilerNegotiableMOQ: 100 Pieces
-
230V Hottest Sale Pellet Igniter for Wood Pellet BurnersNegotiableMOQ: 100 Pieces
-
230V 150W Ceramic Igniter for Pellet StoveNegotiableMOQ: 100 Sets
-
230V150W Ceramic Igniter for Pellet StoveNegotiableMOQ: 100 Sets
Specifications

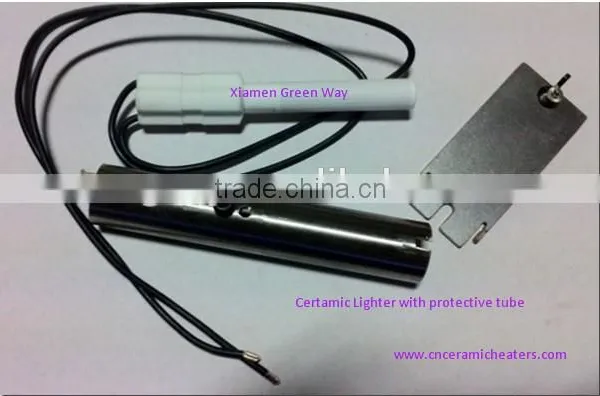

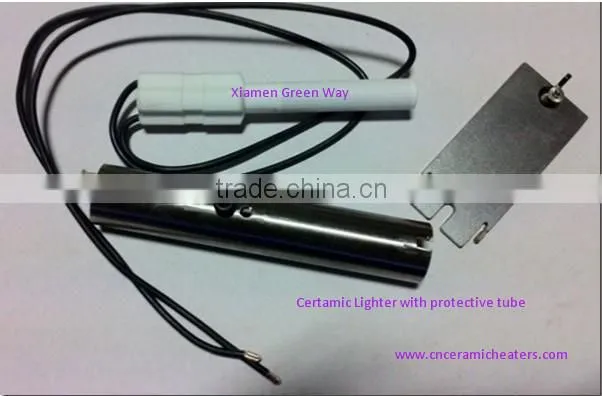

1.Ceramic Lighter for wood chip stove2.Hot heater surfase
3.Fast heating up
4.Long life
5.Meet Rohs
Ceramic Lighter for Wood Chip Stove— for the sake of environment.
Xiamen Green Way is a professional manufacturer of wood Chip Stove Ceramic Lighter with the advantages of long service time,
fast heating rate, energy-efficient and eco-friendly.
Characteristic
1.High temperature-resistance ceramic lighter which can reach a permanent working temperature above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
4.Heat can be transfered from both inside and ouside of the heating element.
5.Electrically oxidation and corrosion-resistant
6.High load-bearing capacity(thermal shock resistance, cycles)
7.Customization the igniters according to customers’ specific requirement.
Application
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
Ceramic hot surface igniters for pellet boilers need only approx. 1/10 of the energy of that needed by hot air fans
and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending on the positioning of the
ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short. This also means minimal
emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
Mass customization is available.
1 |
Part No. |
G78105-22 |
2 |
Usage |
ceramic lighter for wood chip stove |
3 |
Working Voltage |
230VAC |
4 |
Power |
150--250(W) |
5 |
Dimension |
94mm long ,17.5mm diameter |
6 |
Cable |
0.5m long silicone cable |
7 |
Advantages |
(1)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket (2)Air can flow through and around inside and outside of heater (3)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C (4)Lifetime up to 100,000 heating cycles, depending on operating conditions (5)Oxidation and corrosion-resistant (6)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower! (7)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible. |
