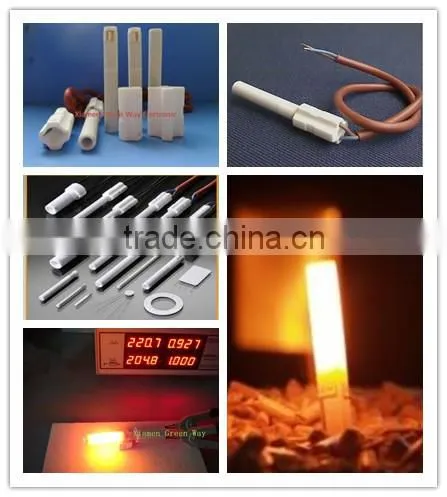

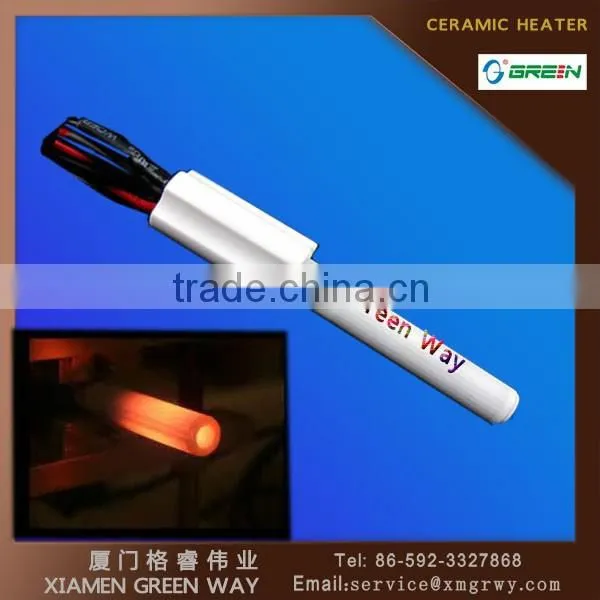

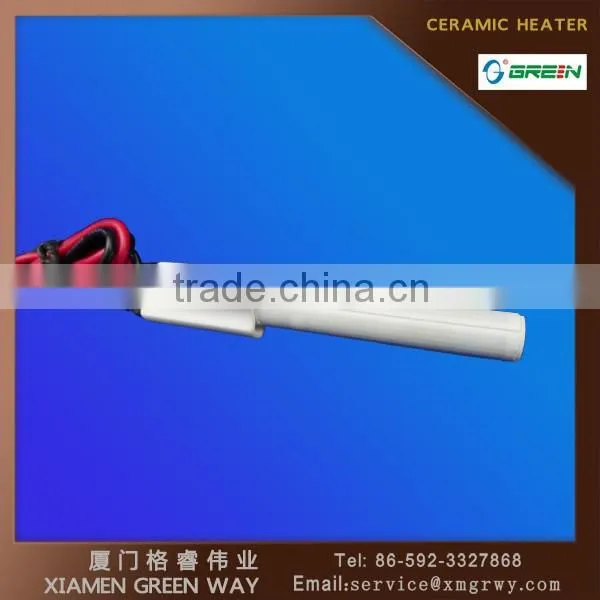

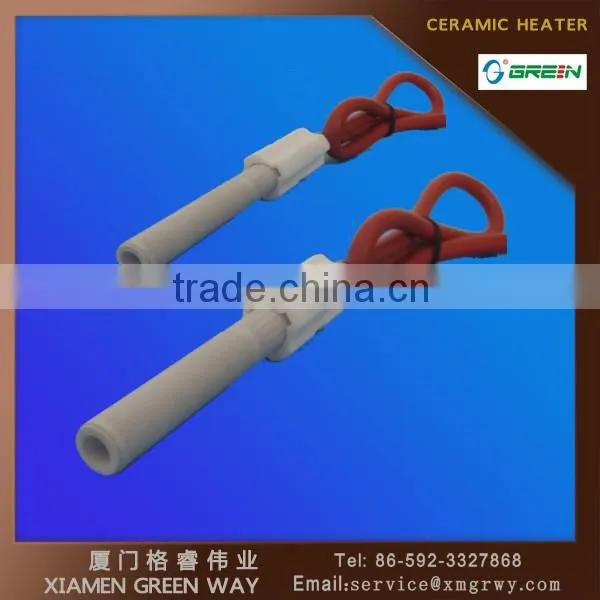

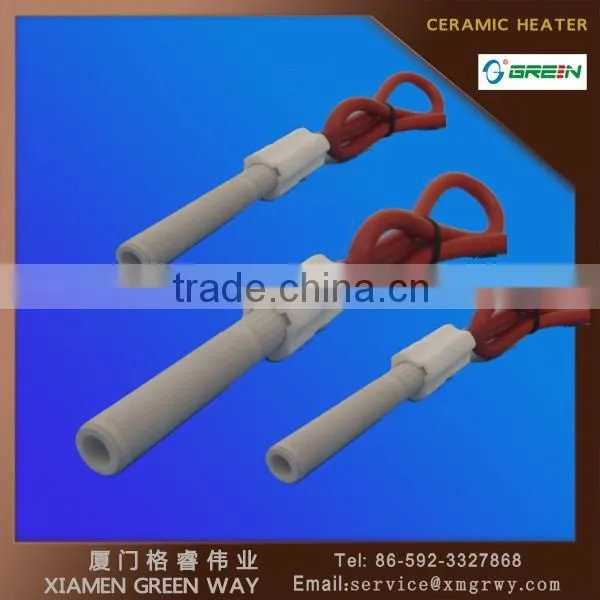

Help Center230V MCH Ceramic Wood Heater for Pellet Burners
Related Products
-
230V Hot Surface Long Life Ceramic Resistor for Pellet BoilerUS$ 8 - 18MOQ: 100 Sets -
Hot Sale 230V 170W Wood Pellet Heater for Biomass BoilerNegotiableMOQ: 100 Sets
-
230V Hottest Sale Ceramic Lighter for Wood Chip StoveUS$ 5 - 30MOQ: 10 Pieces
-
230V Hot Sale Ceramic Igniter for Wood Pellet StoveNegotiableMOQ: 10 Pieces
-
230V Hot Sale Ceramic Igniter for Biomass BoilerNegotiableMOQ: 100 Pieces

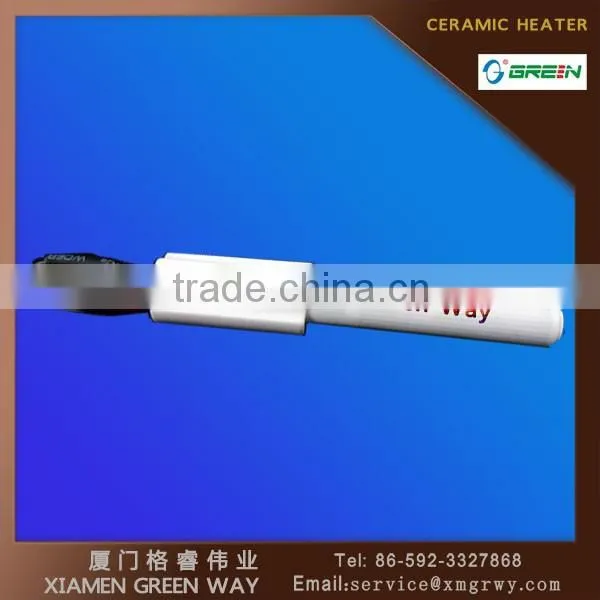

Xiamen Green Way is your best choice for high level quality and best price 230V MCH ceramic wood heater for
biomass burners with the advantages of long service time, fast heating rate, energy-efficient and eco-friendly.
Characteristic
1.High temperature-resistance mch ceramic wood heater which can reach a permanent working temperature
above 750°C
2.Energy saving, super fast heating-up
3.Air can through and around inside and outside of the heater.
Heat can be transfered from both inside and ouside of the heating element.
4.Electrically oxidation and corrosion-resistant
5.High load-bearing capacity(thermal shock resistance, cycles)
5.Customization the igniters according to customers’ specific requirement.
Application
One special application area for Green Way’s high temperature ceramic wood heater is in heating systems that
use solid fuels such as wood pellets as energy source. The challenge here is to ignite the biomass in a very
short time while retaining very low emission values. This can be perfectly achieved by Green Way’s hot surface
ceramic igniters.
Ceramic hot surface MCH ceramic wood heater for pellet boilers need only approx. 1/10 of the energy of that
needed by hot air fans and ignition blowers. Their ignition capacity lies between 120 and 200 Watt. Depending
on the positioning of the ignition element in the boiler, the ignition time of approx. 60 seconds is extremely short.
This also means minimal emissions!
Igniting wood chips, firewood, coal bricks or other biomass (such as corn, etc.) is possible.
1 |
Part No. |
G78105/170W |
2 |
Usage |
MCH wood heater for Pellet burner/Biomass Boiler lighter |
3 |
Working Voltage |
230VAC |
4 |
Power |
170(W) |
5 |
Dimension |

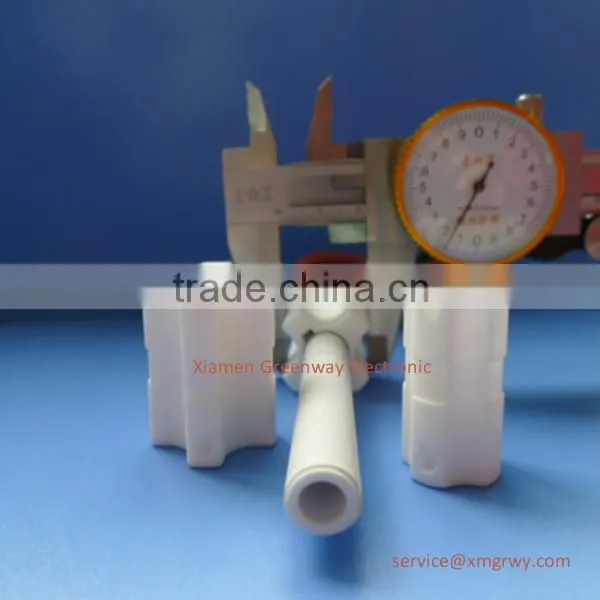

L=94mm; D=17.5mm (standard igniter) |
6 |
Silicon Cable |
0.5m long or Accordingly |
7 |
Advantages |
(1)Ready assembled, easy-to-install systems.

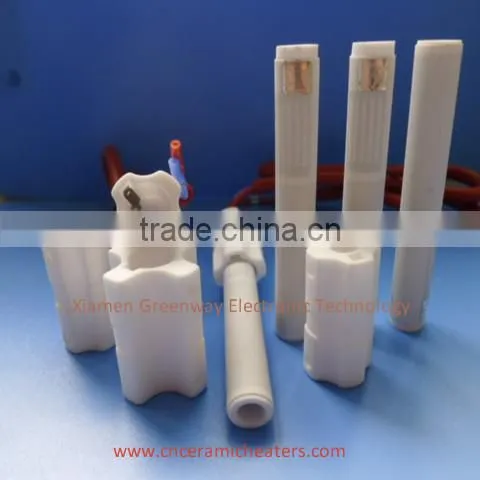

(2)Ready to fit solution: High temperature heating element in temperature-resistant ceramic socket
(3)Space-saving, noiseless and impervious to overheating.
(4)Element temperature: over 1000 °C in permanent and alternating operation, for a short time up to 1200 °C
(5)Lifetime up to 100,000 heating cycles, depending on operating conditions
(6)Minimal energy consumption
(7)Ignition through air heating: Due to extremely high heater temperature and ideal geometric conditions, air is heated in a very short time to very high temperatures – the ideal ignition blower!
(8)Igniting wood chips, firewood, coal bricks or other biomass (corn, etc.) is possible. |
