Durable Japanese retail security devices with fingerprint identification

Major cost savings through simple construction.

IDs and personal identification numbers are unnecessary.

The largest domestic security company has employed

a unique fingerprint algorithm to equip the most important

national facilities with this management system

for entering and exiting rooms.

|||| Product Description ||||

Functions have been narrowed down to the essentials with an emphasis placed on easiness of use.

The method of certification can be set freely so depending on the security level of the user,

it is possible to set the certification method as fingerprint only, card only, or card + fingerprint.
Works with all brands of electrical locks and electromagnetic-type electrical locks.

Comes equipped with anti-passback (APB).

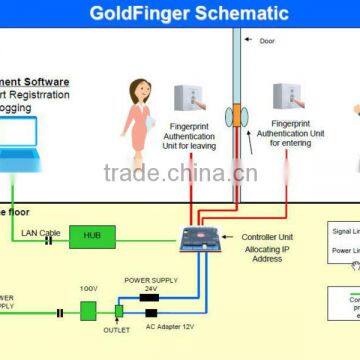

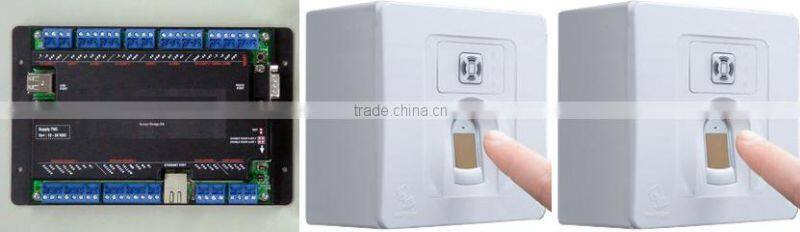

The unit is comprised of the Management Unit and Fingerprint Unit (2 units).

Control software and desktop fingerprint scanner are also included.

Anti-passback is a function that prevents the unauthorized entry and exit of rooms.

If an unauthorized user tries to enter a room they are not given access

when trying to leave a room, which is effective in improving security.

Specifications
Certification system: fingerprint identification, contactless card + fingerprint identification,
                              contactless card

Installation type:

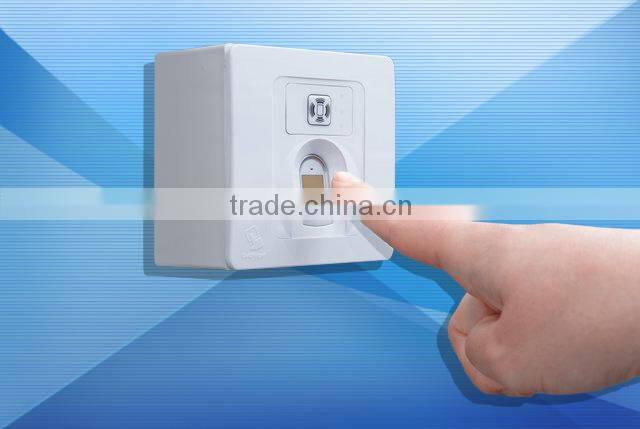

• Fingerprint Unit: wall-mounted exposure-type;
• Management Unit: embedded-type
Corresponding lock-type: electronic locks (including electromagnetic-type)
Output method: C contact
Fingerprint sensor: electric field silicone sensor
Durability: over 1 million uses
Weight: • Management Unit: approx. 340 g;
            • Fingerprint Unit: approx. 210 g
Electrical power: DC12V / Electrical consumption: At most 24W (2A)
Operating environment: indoor; Temp: 0-50°C; Humidity: 20-90% (RH) (without condensation)

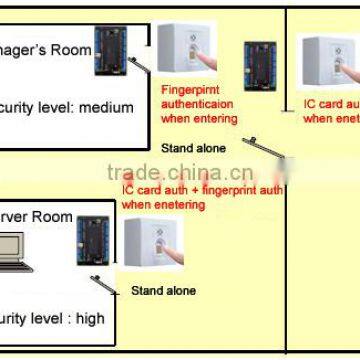

 Case Study 1

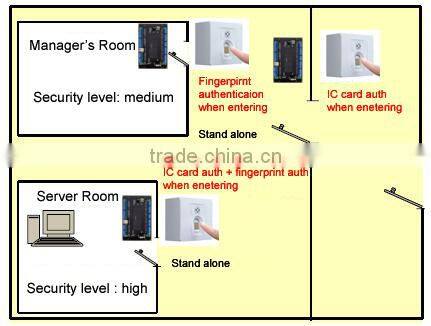

Two-factor authorization based on security level (fingerprint and card)
Standalone-use with SCII. The authorization method varies for each door depending

on security level and changes between "fingerprint," "fingerprint + card," and "card."

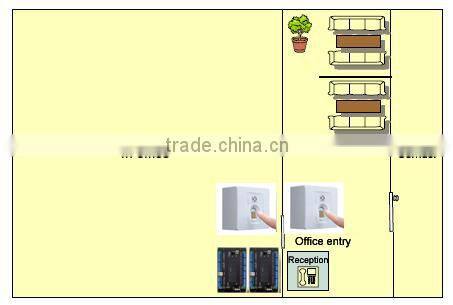

 Case Study 2

False anti-passback application
For each door two sets of SCII were installed.

Entering and exiting management. Restrains unauthorized use.

 Case Study 3

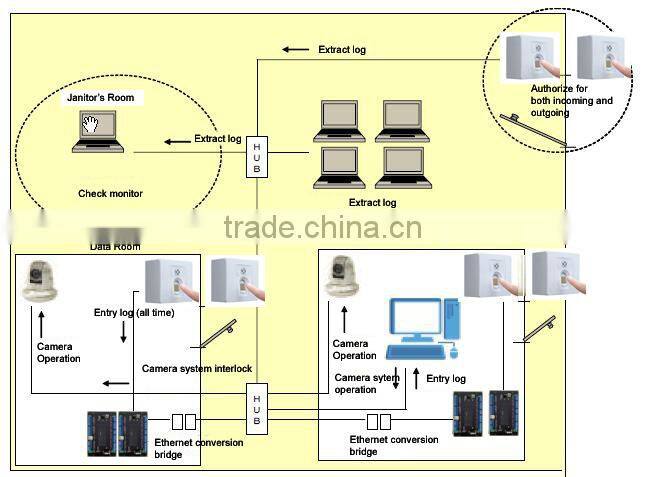

Comprehensive control for multiple areas connected by networks
Multiple locations are managed comprehensively through an Ethernet connection.

By installing two sets of SCII per door, control of entering and exiting each floor is achieved.

Also works in conjunction with salary calculation software

in the form of attendance information data.

 Case Study 4

Fingerprint identification combined with security camera systems
Constant connection used together with SCII.

The operation of fingerprint identification together with a security camera system
enables proof of access.

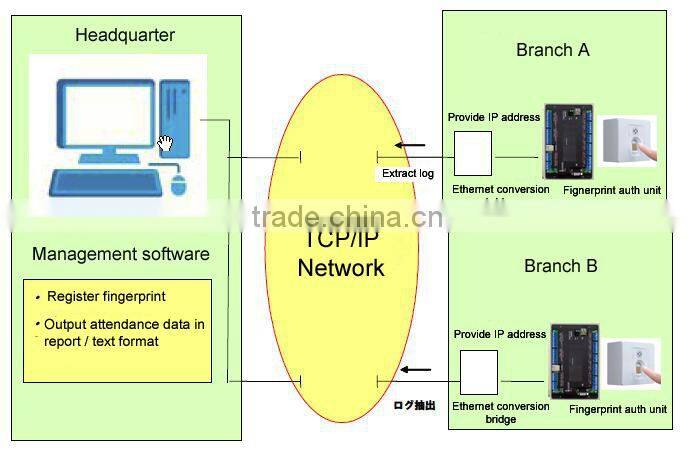

 Case Study 5
Utilizing control terminal for managing entering and leaving work from a separate location

Using SCII in a Wan environment enables centralized management of attendance information.

The leaving of work is centrally managed through fingerprint identification

for every branch office.

We are one of 15 companies around the world that were selected to participate in the
fingerprint data standardization project of the "National Institute of Standards and Technology,"
which is directly managed by the U.S. Department of Commerce.
