Specifications
LED Street Light Set , for Main Road, Street Lighting, Park Lot, Private Road, Pathway, etc. Widely used in 52 country.2014 Hot Sale, Factory Price, Outdoor Lighting Design for LED Street Light Set
LED Solar Street Lighting: LED Street Light Set is fresh new alternative to traditional street lamps such as: LPS, HPS or MH street lights.
LED Street Light provides a multitude of advantages over conventional incandescent lights.
Advantages of LED Street Light Set Projects:
1). Green Energy, Lower Power Consumption, Save 60%-80% Than Others.
2). Higher power, higher brightness intensity, Good Color Rendition.
3). Save electricity cost. Save electric transformer and cable cost. Free maintenance
4). Environmental Impact - Eliminate Hazardous Disposal, Low Light Pollution, No Radiation.
5). Longer lifetime: Between 80000-100000 Hrs. If lighting 12 hrs/night, could use at least 12 - 22 Years
6). Less heat Generated compared to other sources,
7). Downward orientation of Light, could adjust lighting angles and lighting range and shape on the Ground to meet the road-Rectangular. Other lighting source just could give common round shape and small lighting range.
Our Competitive Produvts:
1. Solar Street Lights & LED Street Lighting 15W—120W;
2. Solar Garden Lights & Solar Landscape Lights 5W—30W;
3. Solar Battery: 4.5Ah—250Ah/12V, 200Ah—3000Ah/2V;
4. Solar Panels & Solar Modules 5W—300W Poly & Mono ;
5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating;
6. Solar Home Lighting System/Kits : 5W—5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power;
Technical Reference of 8M-60W LED Street Light Set
Part Name and Lifespan | Technical Specification |
Solar Panel: Lifespan:20-25 years | 250W*1PC Poly crystalline. High Efficiency. A-class Adding Aluminum Frame, Tempered Glass. |
Gelled Battery Lifespan:5-8 years | 100Ah/12V*2PC for 24V, Gelled battery, Sealed Type. Deep cycle. Maintenance Free |
Intelligent Solar Controller Lifespan:5-10 years | 15A/24V, IP68. Automatic Light and Time Control Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later |
Light source: High Power LED Lifespan: More than 50000-100000Hrs | 60W LED, White Color, 7200LM,5600K, IP65 High Power, High Brightness. |
Lamp Housing: Lifespan: More than 20 years | Die-caste Aluminum, IP65 High transmittance & Density toughened glass, |
Pole: Lifespan: More than 20 years | 8M Height, Steel, Hot-Dip Galvanized. With Arm, Bracket, Flange, Fittings, Cable, Etc Plastic Coated, Rust Proof, Resistant to Wind: ≥150KM/H, |
Battery Box: | Engineering Plastic,Burying Type Battery |
System Certification | ISO9001,CE & EN, RoHS,IEC,SONCAP,FCC |
Warranty | 2 Years for full system |
Details of Each Part of LED Street Light Set

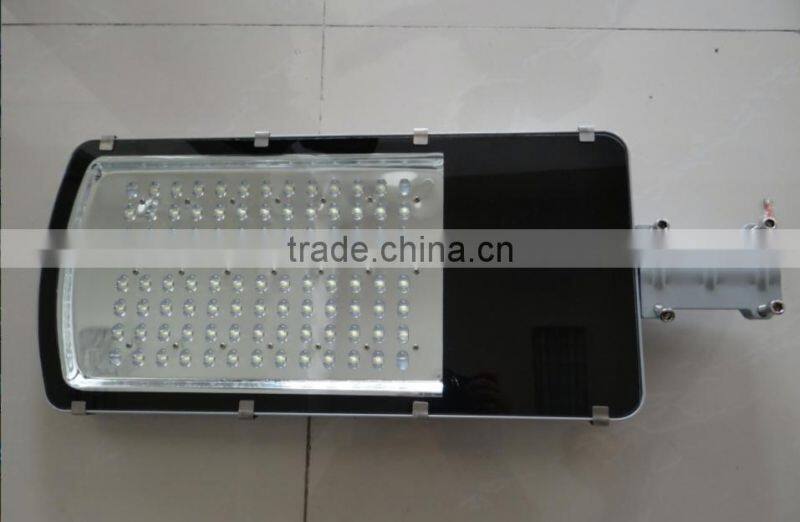

| 1.)Lamp Body: High-Pressure Die-Casting Aluminum. Corrosion Resistant 2.)Application with Polyester Substance in its Surface. 4.)Cover: High Strength and High Transparent Toughened Glass 7.)IP65 8.)Lumin:120-130LM/W; |

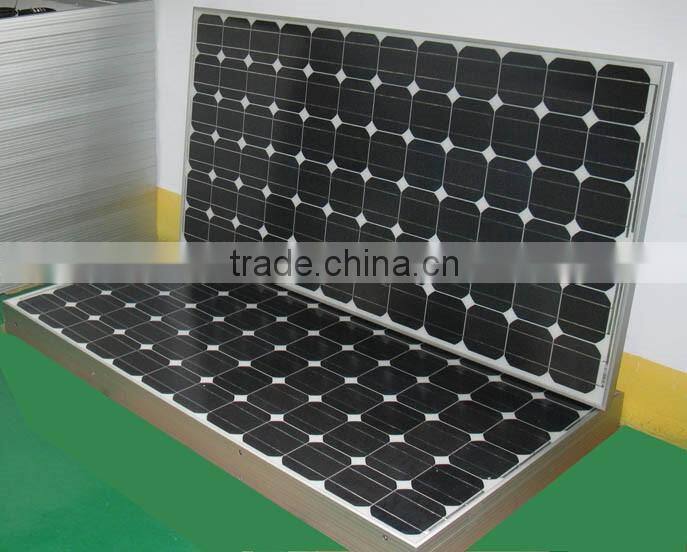

| Silicon Type………………………………Mono/Poly Size……………………………………1500*670*35mm N Weight…………………………………12.0KG Vmp…………………………………………17.2V Imp…………………………………………..6.89A Voc………………………………………….21.6V Isc……………………………………….……7.45A Operating temperature…………….-40°C to +80°C |

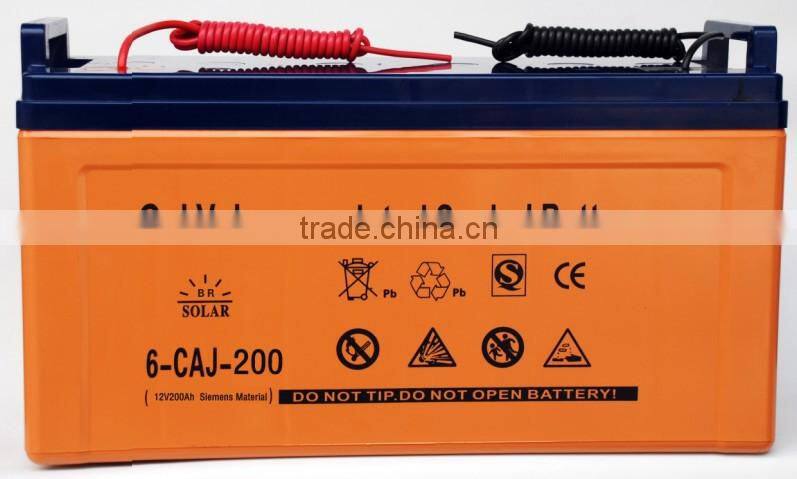

| Nominal Voltage …………………….…………… 12V Number of cell ……………………………..…6 Design Life ……………………………5-8 years 10 hour rate(12.0A,10.5V) ……….……100Ah Fully Charge battery 77°F(25°C) …. ….4mΩ Discharge……………….……..………-20~60°C Charge………………………..………..-10~60°C Storage…………………………………-20~60°C Size:……………………………406*172*210mm Net Weight……………………………...30.0 KGS |

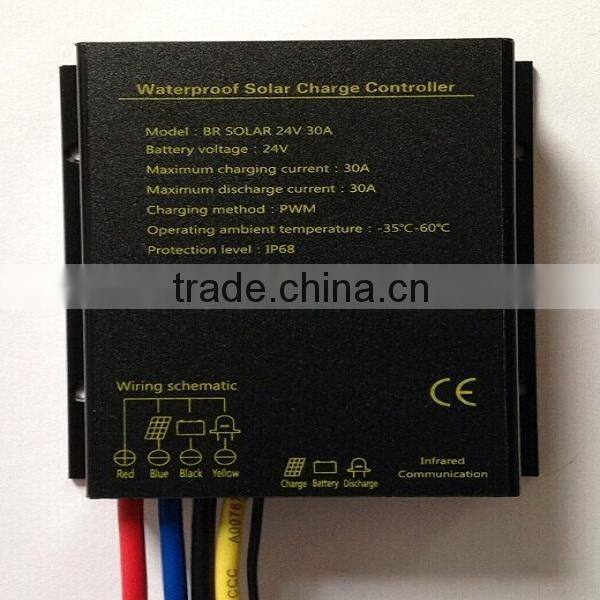

| | Intelligent Micro-computer Controller Temperature Compensation. Size………………………………..81*60*20mm N. Weight………………………….0.16KG Over-charging/discharging Protection Reverse-connection Protection Switch on Automatically with Light Sensor; Switch off after designed Hours later. IP68 Level. |

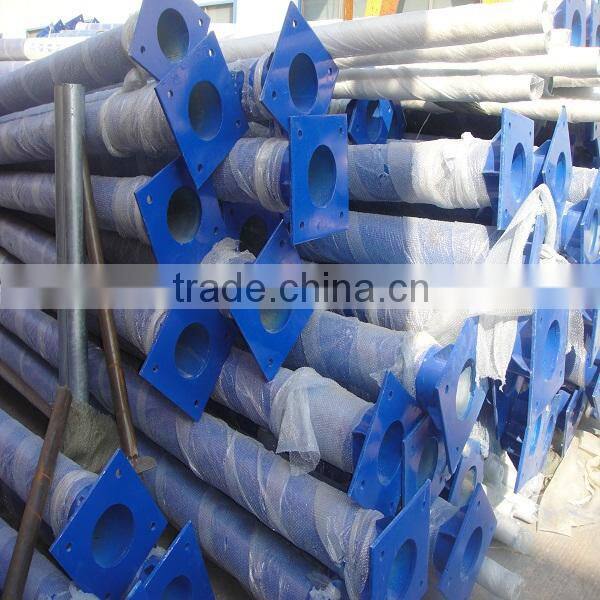

| | Pole Height…………………………………8M Material……………………………………..Q235, Top Diameter…………………………….75mm Bottom Diameter………………………..160mm Pole Thickness…………………………..3.5mm With Arm, Battery Box, Box Bracket, Solar Panel Bracket. Nuts and Screws, Cable, etc Rust Proof, Resistant to Wind: ≥160KM/H |

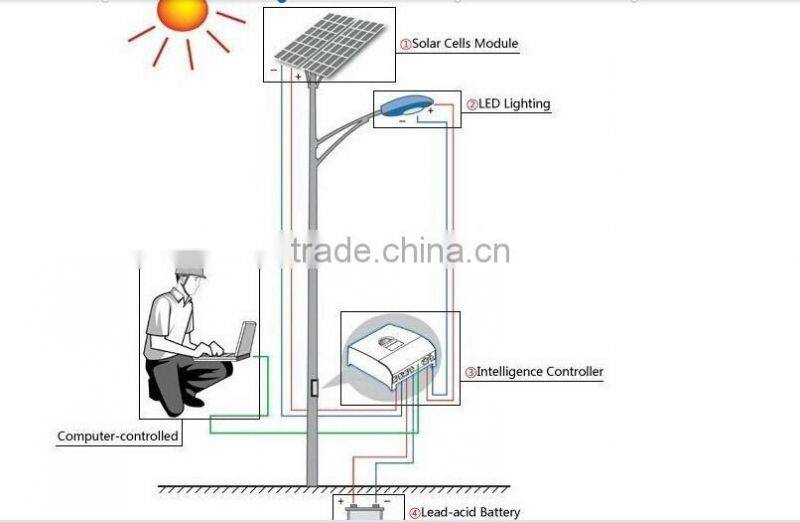

Solar Street Light Working Principle
------------------ LED Street Light Set
Certificates
So far, our LED Street Light Set has been widely used in more than 52 countries, with CE, IEC, RoHS, SONCAP, CCC, FCC approved.
Owing to the high quality and professional service, we always recieve good feedback from our customers.
Please feel free to contact us if you have interest.
Application for your reference
