2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture

2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture thumbnail-1
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture thumbnail-2
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture thumbnail-3
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture thumbnail-4
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture thumbnail-5
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture thumbnail-6
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture photo-1
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture photo-2
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture photo-3
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture photo-4
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture photo-5
2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture photo-6
US$ 750 - 950 MOQ: 10 Sets
Key Specifications
Get Latest Price
LED Light Source:
LED
Input Voltage(V):
24
Lamp Power(W):
60
Contact Supplier Request Quote Chat Now
Yangzhou Bright Solar Solutions Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
SHANGHAI YANGZHOU NANTONG
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
LED Light Source LED
Input Voltage(V) 24
Lamp Power(W) 60
Lamp Luminous Flux(lm) 7200
Lamp Luminous Efficiency(lm/w) 130
Color Temperature(CCT) Other, Cool/Pure/Warm White
Working Temperature(℃) -40, +60
Working Lifetime(Hour) 80000
Lamp Body Material Aluminum
IP Rating IP68
Certification CCC, CE, FCC, SASO
Warranty(Year) 5
Place of Origin Jiangsu, China
Brand Name BR-Solar
Model Number BR-SLL-S67

Specifications

LED Solar Light, Solar Fixture, for Main Road, Street Lighting, Park Lot, Private Road, Pathway, etc. Widely used in 52 country.

2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture



LED Solar Street Lighting: LED Street Light( Street Solar Fixture ) is fresh new alternative to traditional street lamps such as: LPS, HPS or MH street lights.

LED Street Light provides a multitude of advantages over conventional incandescent lights.



Advantages of LED Solar Street Light ( Street Fixture) Projects:
1). Green Energy, Lower Power Consumption, Save 60%-80% Than Others.

2). Higher power, higher brightness intensity, Good Color Rendition.

3). Save electricity cost. Save electric transformer and cable cost. Free maintenance

4). Environmental Impact - Eliminate Hazardous Disposal, Low Light Pollution, No Radiation.

5). Longer lifetime: Between 80000-100000 Hrs. If lighting 12 hrs/night, could use at least 12 - 22 Years

6). Less heat Generated compared to other sources,

7). Downward orientation of Light, could adjust lighting angles and lighting range and shape on the Ground to meet the road-Rectangular. Other lighting source just could give common round shape and small lighting range.





2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture





Product Description

Our Competitive Produvts:



1. Solar Street Lights & LED Street Lighting 15W—120W;

2. Solar Garden Lights & Solar Landscape Lights 5W—30W;

3. Solar Battery: 4.5Ah—250Ah/12V, 200Ah—3000Ah/2V;

4. Solar Panels & Solar Modules 5W—300W Poly & Mono ;

5. Solar Controllers: 5A-60A/12V Or 24V Or 48V IP 65 IP68 Rating;

6. Solar Home Lighting System/Kits : 5W—5000W With Lighting + Fan + TV + Fridge + USB Charging Phone Function/AC or DC Power;



Technical Reference of 8M-60W  Street Solar Fixture



Part Name and Lifespan

Technical Specification

Solar Panel:

Lifespan:20-25 years

250W*1PC Poly crystalline. High Efficiency. A-class

Adding Aluminum Frame, Tempered Glass.

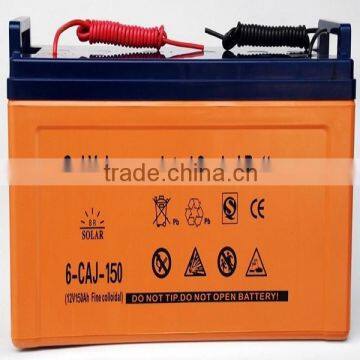

Gelled Battery

Lifespan:5-8 years

100Ah/12V*2PC for 24V, Gelled battery, Sealed Type.

Deep cycle. Maintenance Free

Intelligent Solar Controller

Lifespan:5-10 years

15A/24V, IP68. Automatic Light and Time Control

Over-charging/discharging Protection

Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after designed Hours later

Light source: High Power LED

Lifespan: More than 50000-100000Hrs

60W LED, White Color, 7200LM,5600K, IP65

High Power, High Brightness.

Lamp Housing:

Lifespan: More than 20 years

Die-caste Aluminum, IP65

High transmittance & Density toughened glass,

Pole:

Lifespan: More than 20 years

8M Height, Steel, Hot-Dip Galvanized.

With Arm, Bracket, Flange, Fittings, Cable, Etc

Plastic Coated, Rust Proof,

Resistant to Wind: ≥150KM/H,

Battery Box:

Engineering Plastic,Burying Type Battery

System Certification

ISO9001,CE & EN, RoHS,IEC,SONCAP,FCC

Warranty

2 Years for full system







 Details of Each Part of Street Solar Fixture

1.)Lamp Body: High-Pressure

    Die-Casting Aluminum. Corrosion Resistant

2.)Application with Polyester Substance in its Surface.
3.)Implement of Reflect: Made of High Purity Aluminum.

4.)Cover: High Strength and High Transparent

    Toughened Glass
5.)Fastener Bolt and Screws: Stainless Steel
6.)Arm Diameter: 60mm

7.)IP65

8.)Lumin:120-130LM/W;



Silicon Type………………………………Mono/Poly

Size……………………………………1500*670*35mm

N Weight…………………………………12.0KG

Vmp…………………………………………17.2V

Imp…………………………………………..6.89A

Voc………………………………………….21.6V

Isc……………………………………….……7.45A
Efficiency: …………………………………≥16.0%
FF(%)……………………………………….70-72%

Operating temperature…………….-40°C to +80°C



 Nominal Voltage …………………….…………… 12V

Number of cell ……………………………..…6

Design Life ……………………………5-8 years

10 hour rate(12.0A,10.5V) ……….……100Ah

Fully Charge battery 77°F(25°C) …. ….4mΩ

Discharge……………….……..………-20~60°C

Charge………………………..………..-10~60°C

Storage…………………………………-20~60°C

Size:……………………………406*172*210mm

Net Weight……………………………...30.0 KGS







Intelligent Micro-computer Controller

Temperature Compensation.

Size………………………………..81*60*20mm

N. Weight………………………….0.16KG
Working Temperature:-20°C to  60°C

Over-charging/discharging Protection

Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after designed Hours later.

IP68 Level.





Pole Height…………………………………8M

Material……………………………………..Q235,

Top Diameter…………………………….75mm

Bottom Diameter………………………..160mm

Pole Thickness…………………………..3.5mm
Weight:…………………………………85KGS

With Arm, Battery Box, Box Bracket,

Solar Panel Bracket.

Nuts and Screws, Cable, etc
Hot-dip Galvanized, Plastic Coated,

Rust Proof,

Resistant to Wind: ≥160KM/H







Solar Street Light Working Principle

------------------   Street Solar Fixture

  2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture



Packaging & Shipping



 2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture



Company Information

    Certificates




2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture



Our Services

So far, our LED Street Fixture has been widely used in more than 52 countries, with CE, IEC, RoHS, SONCAP, CCC, FCC approved.

Owing to the high quality and professional service, we always recieve good feedback from our customers.

Please feel free to contact us if you have interest.

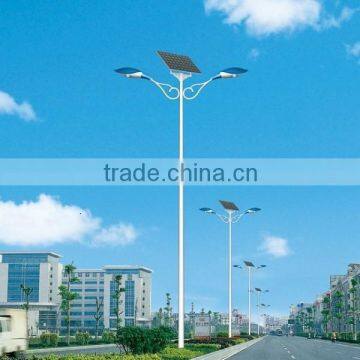

Application for your reference



2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture2014 New Technology 120LM/W-150LM/W High Power Die-Cast Aluminum Solar Street Fixture
