30W, 60W, 80W Solar Street Lighting, with Factory Price and Best Quality

Part Name & Lifespan

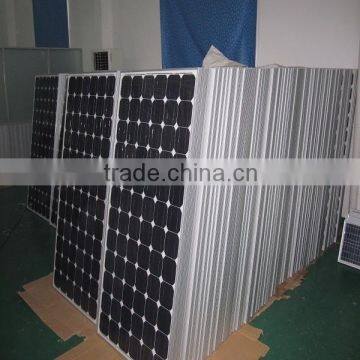

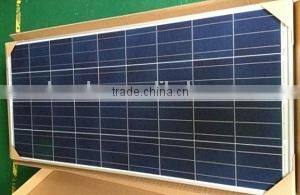

Solar Panel

Lifespan: 20~25 years

Adding Aluminum Frame, Tempered Glass.

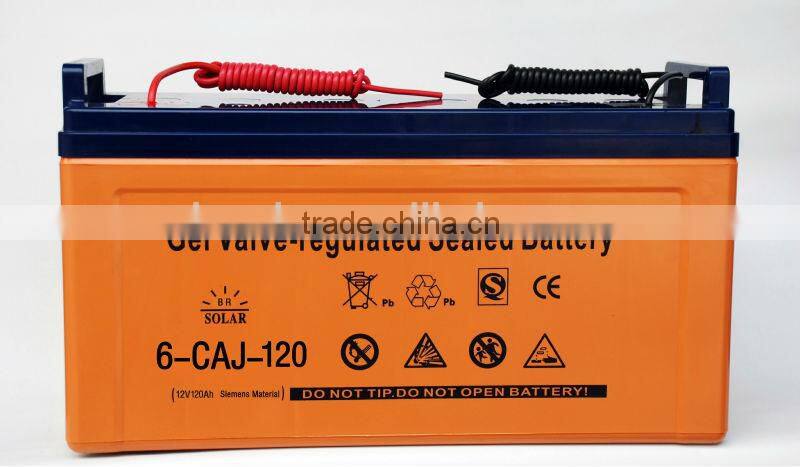

Gelled Battery

Lifespan: 5~8 years

Deep cycle. Maintenance Free

Intelligent Solar Controller

Lifespan:5-10 years

Over-charging/discharging Protection

Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after designed Hours later

Light source: High Power LED

Lifespan: More than 50000-100000Hrs

High Power, High Brightness.

Lamp Housing:

Lifespan: More than 20 years

High transmittance & Density toughened glass,

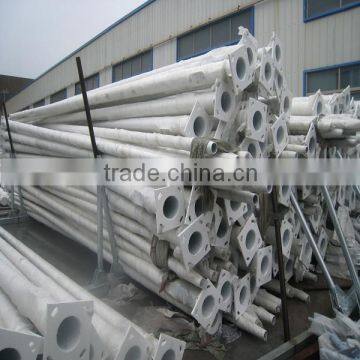

 Pole:

Lifespan: More than 20 years

With Arm, Bracket, Flange, Fittings, Cable, Etc
Plastic Coated, Rust Proof,

Resistant to Wind: ≥150KM/H,

Battery Box:

Engineering Plastic,Burying Type Battery

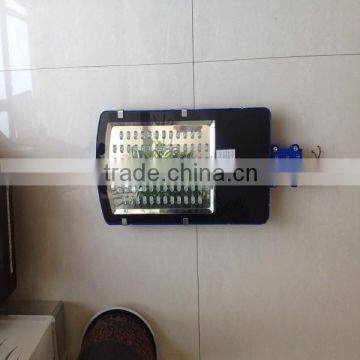

1.)Lamp Body: High-Pressure

    Die-Casting Aluminum. Corrosion Resistant

2.)Application with Polyester Substance in its Surface.
3.)Implement of Reflect: Made of High Purity Aluminum.

4.)Cover: High Strength and High Transparent Toughened Glass
5.)Fastener Bolt and Screws: Stainless Steel
6.)Arm Diameter: 60mm

7.)IP65

8.)Lumin:120-130LM/W;

Size……………………..………………1500*670*35mm

N Weight……………………..……………12.0KG

Vmp……………………..……………………17.2V

Imp……………………..……………………..6.89A

Voc……………………..…………………….21.6V

Isc……………………..………………….……7.45A
Efficiency: ……………………..……………≥16.0%
FF(%)……………………..………………….70-72%

Operating temperature……….……….-40°C to +80°C

Number of cell ……………………………..…6

Design Life ……………………………5-8 years

10 hour rate(12.0A,10.5V) ……….……100Ah

Fully Charge battery 77°F(25°C) ….….4mΩ

Discharge……………….……..………-20~60°C

Charge………………………..………..-10~60°C

Storage…………………………………-20~60°C

Size:……………………………406*172*210mm

Net Weight……………………………...30.0 KGS

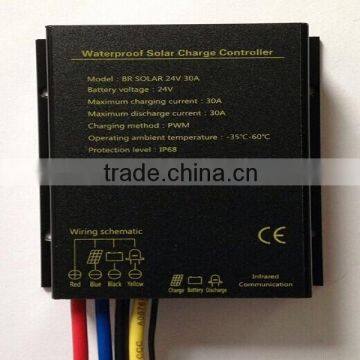

Temperature Compensation.

Size………………………………..81*60*20mm

N. Weight………………………….0.16KG
Working Temperature:-20°C to  60°C

Over-charging/discharging Protection

Reverse-connection Protection

Switch on Automatically with Light Sensor;

Switch off after designed Hours later.

IP68 Level.

Material……………………………………..Q235,

Top Diameter…………………………….75mm

Bottom Diameter………………………..160mm

Pole Thickness…………………………..3.5mm
Weight:…………………………………85KGS

With Arm, Battery Box, Box Bracket, Solar Panel Bracket.

Nuts and Screws, Cable, etc
Hot-dip Galvanized, Plastic Coated, Rust Proof,

Resistant to Wind: ≥160KM/H
