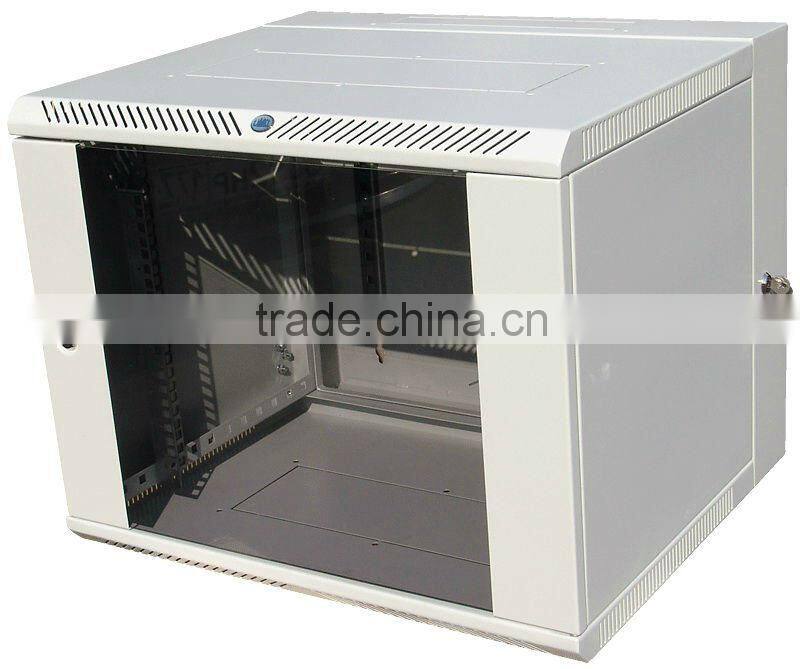

Telecom Equipment indoor Cabinet telecom box
- 1000 Set / Sets per Month
- XINGANG TIANJIN
- T/T L/C D/P D/A
Product Details
Place of Origin: | Tianjin, China | Brand Name: | SHIYU | Model Number: | SK-B06 |
Protection Level: | IP54 | Type: | Other, Network Cabinet, telecom box |
Packaging Details
BOX
Product Description
Telecom Equipment indoor cabinet telecom box
PRODUCT DESCRIPTION
- Comply with ANSI/EIARS-310-D, DIN41491; PART1, IEC297-2, DIN41494; PART7, GB/T3047.2-92 standard. Compatible with metric ETSI and 19 inch international standard.
APPLICATION
- Widely used in network system, educational system, broadcasting system and telecommunication system. Suitable for placing server
computer and precision electronic equipments.
MATERIALS
- Cool rolled steel
Thickness: Vertical rail:1.5mm
Else in 1.2mm
Tempered smoky-gray glass with thickness of 5mm.
TECHNICAL SPECIFICATION
- Exquisite design with precise craftsmanship.
- International popular smoky-gray glass front door.
- Easily be mounted on wall, or placed on floor after installed castor or feet.
- Loading capacity: 60KG.
- Top and bottom wiring channel could be closed.

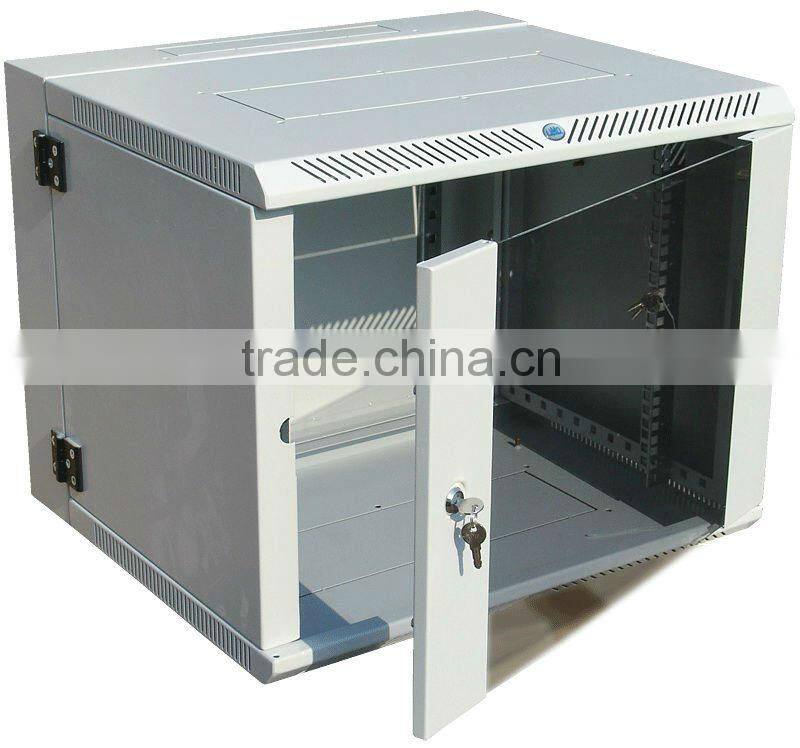

- Removable front door and side panel, easily installing and maintaining.
- Surface finish: Degreased, acid cleaned, phosphoric, water cleaned,electro-static powder coating, meet ROHS standard.
- Optional color: black/gray.
- Optional accessories.
Part No | Capacity/U | Width/mm | Depth/mm | Height/mm | CM/Width/m | CM/Depth/m | CM/Height/m | Volume/CBM |
WCB06-645-*@ | 6U | 600 | 450 | 368 | 0.67 | 0.52 | 0.43 | 0.15 |
WCB09-645-*@ | 9U | 600 | 450 | 501 | 0.67 | 0.52 | 0.56 | 0.20 |
WCB12-645-*@ | 12U | 600 | 450 | 635 | 0.67 | 0.52 | 0.70 | 0.24 |
WCB15-645-*@ | 15U | 600 | 450 | 769 | 0.67 | 0.52 | 0.83 | 0.29 |
WCB18-645-*@ | 18U | 600 | 450 | 901 | 0.67 | 0.52 | 0.96 | 0.33 |
WCB22-645-*@ | 22U | 600 | 450 | 1082 | 0.67 | 0.52 | 1.14 | 0.40 |
WCB06-66-*@ | 6U | 600 | 600 | 368 | 0.67 | 0.67 | 0.43 | 0.19 |
WCB09-66-*@ | 9U | 600 | 600 | 501 | 0.67 | 0.67 | 0.56 | 0.25 |
WCB12-66-*@ | 12U | 600 | 600 | 635 | 0.67 | 0.67 | 0.70 | 0.31 |
WCB15-66-*@ | 15U | 600 | 600 | 769 | 0.67 | 0.67 | 0.83 | 0.37 |
WCB18-66-*@ | 18U | 600 | 600 | 901 | 0.67 | 0.67 | 0.96 | 0.43 |
WCB22-66-*@ | 22U | 600 | 600 | 1082 | 0.67 | 0.67 | 1.14 | 0.51 |
* = Front door(A=Steel Casement Door B=B=Smoky-grey glass door C=Smoky-gray glass door with frame punche
D =Perforation steel door with high ventilation level(hexagonal type))
@=Colors A=Black(RAL9004) B=Gray(RAL7044)
We offer customized cabinet ,for any further questions ,please contact Lucy !
