Outdoor Cooling Server Rack for High Temperature

Wooden box or according to your requirement

outdoor cooling server rack for high temperature

 Industrial Cabinets / Outdoor Telecom Cabinet:

Model: SK-65110

Size: W650*D650*H1100mm

Material: aluminum alloy/stainless steel/galvanized sheet

Color: Grey (RAL7035) Or according to customer requirements;

Cabinet Standard: IEC297-2; DIN41491: PART1

Protection level: IP55

Lock: It has Turning Waterproof Lock.

Structure: Double layer with filter to insulate heat

Internal: 19 inch standard Cabinet Racks, material is galvanizing iron plate.

Power Supply: AC220V±15%,50/60Hz

Finish: outdoor epoxy powder

Painting outdoor type static powder in the outside.

There are some intake wire hole in the bottom.

Weatherproof and dustproof

Cooling system: can be configured air conditioning, or heat exchangers, or TEC, according to user requirements. It also could have 2PCS and 120mm spindle-flow 100CFM fan, which is AC220V, in the inner top of the cabinet, to cooling the cabinet.

And also could match with Temperature Control System and Temperature Alarm Function.

Environmental Parameter

Operating temperature range: -15 ° C to +45 ° C

Storage temperature range: -25 ° C to +55 ° C

Transport temperature range: -40 ° C ~ +70 ° C

Relative humidity: 5% ~ 95% (+40 °C ± 2 °C)

Ambient pressure: 70kPa ~ 106kPa

Anti-wind strength: 60m/s

Earthquake-resistant strength: Intensity 7

Can designing the DC and AC power supply for customer requirements

We could also designing the other kinds of outdoor cabinet for your specially requirement

Description of the cabinet

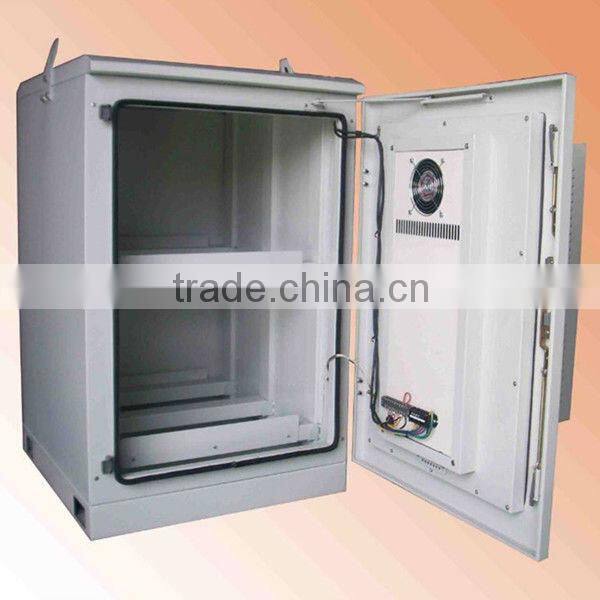

The cabinet with heat exchange is constituted by 19inch standard cabinet and heat exchanger installed on door. The heat exchange of this cabinet is this enterprise has the proprietary intellectual property rights high tech product, which using an invention and much new practical patent technology, good capacity of heat exchange . ensure fully air-tight cabinet inner heat output. Can offer cabinet inner equipments airflow and clean working condition.

Alarms

The following sensors are fixed in the cabinet and used to drive corresponding alarm. Sensor connection environmental supervisor installed in the cabinet

The  five sensors are fed by the environmental supervisor.

1,Temperature sensor

2,Humidity sensor

4,Immersion sensor

5,Fire/smoke sensor

6,Door open sensor

Certification:

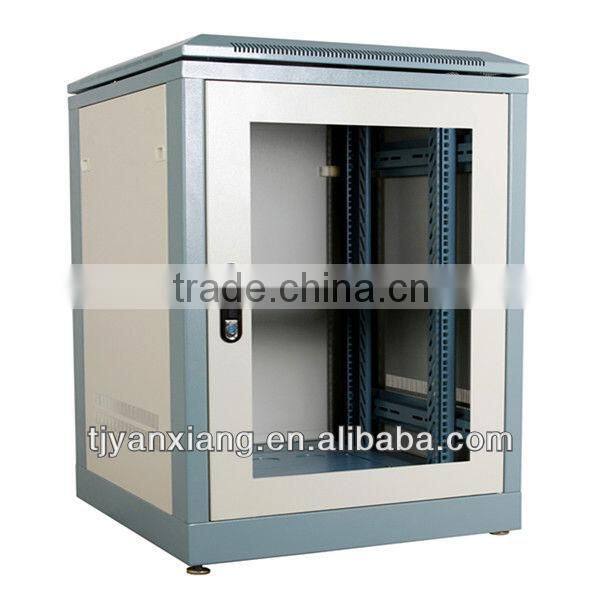

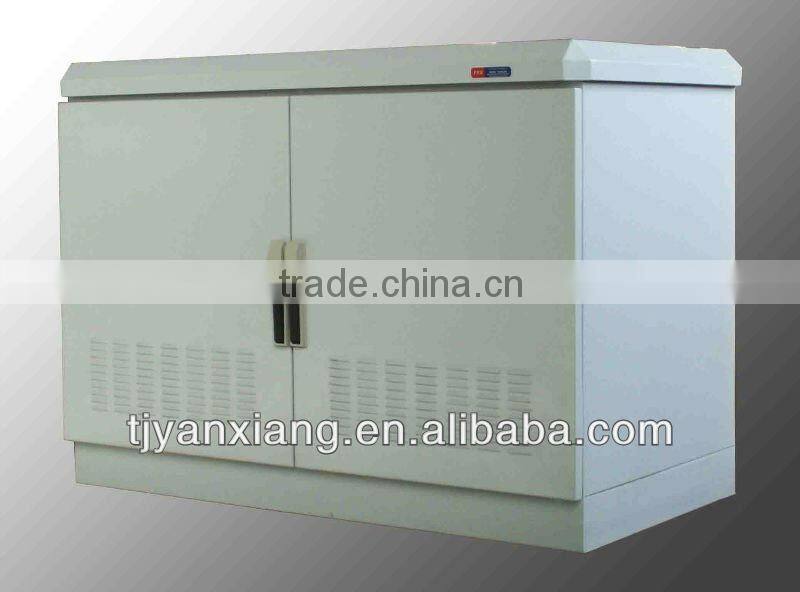

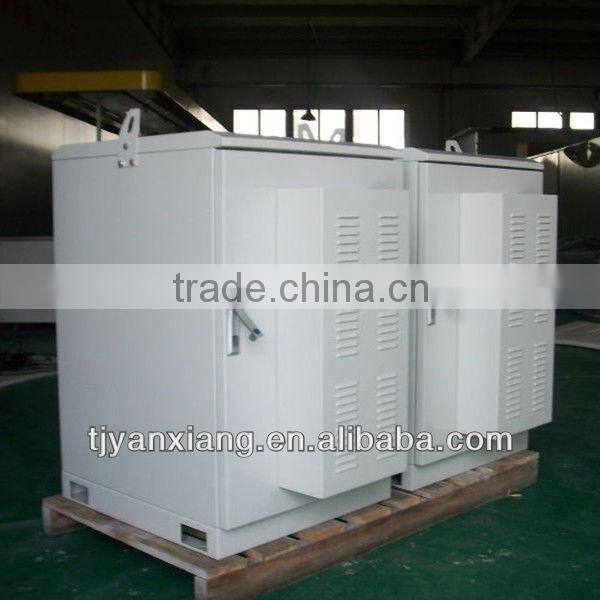

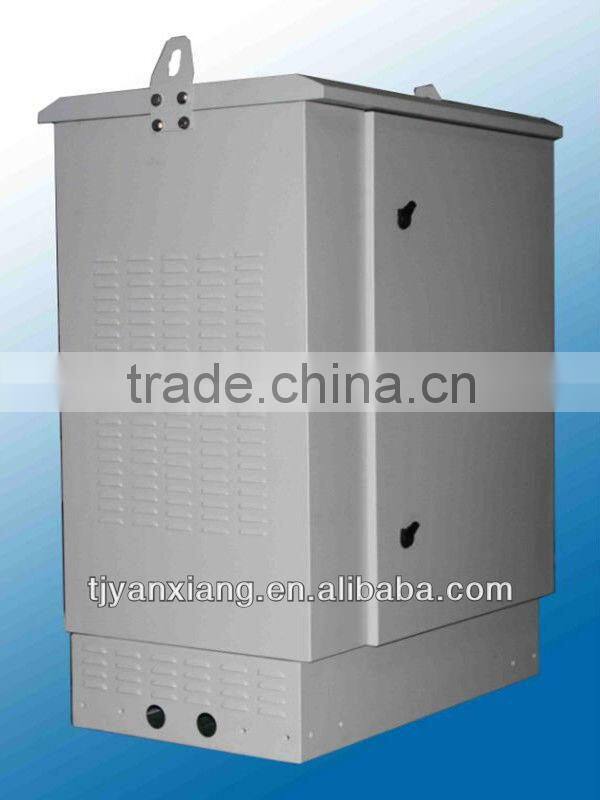

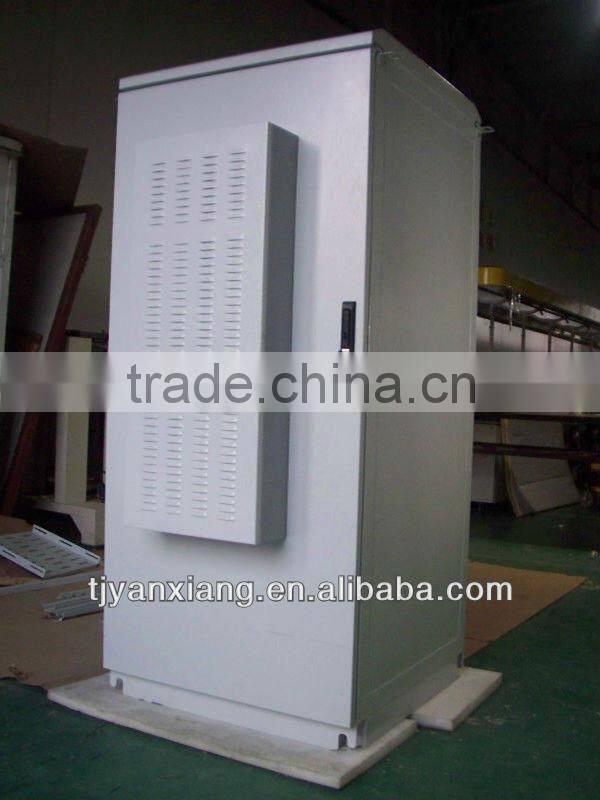

Other Cabinet from our company:
