Specifications
Automatic cut off switch ATS0201T1Model Number: ATS0201T
2 Max. Current: 30A
3 Max. Voltage: 220V
Automatic Transfer Switch ATS0201T
Technical specifications
This product is a small double power supply automatic switch.
Suitable for the family and other load power smaller users,
not suitable for connection in high power motor and perceptual load circuit
Model Number |
ATS0201T |
Input Voltage |
220VAC 50/60Hz |
Output Current |
MAX 30A |
Size |
180*103*86mm |
Weight |
1.5kg |
The power supply priority
Only in the situation state grid out of power ,ATS automatic connect the self-provided generator power supply circuit .
In the situation self-provided generator power supply,
when state grid restore power, ATS automatic transfer to state grid power supply and break the generator power .
At the same time "TRIP" interface switch quantity signal into a connection status.
generator according to the signal automatic stop power.
To sum up, the national power grid has the first power supply in priority,
and generator power supply of the second priority.
Practical application
ATS can be connected to the acoustic power supply. For example ,it can connect state grid power and crude oil engine power.
Power supply automatic switching control function description

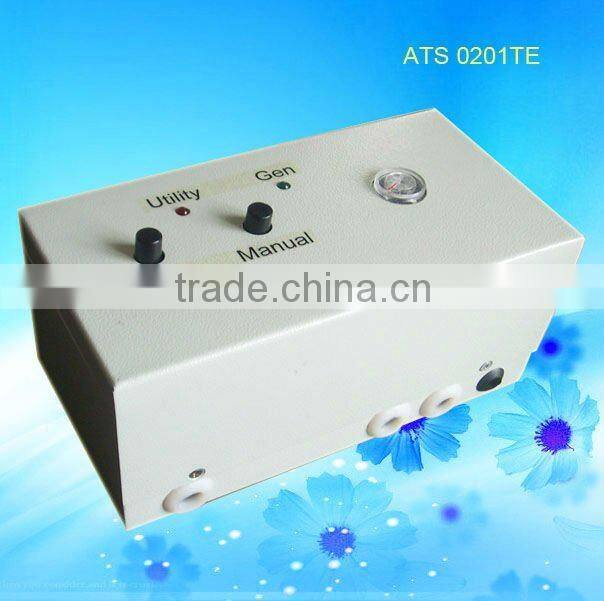

connect power supply and power load as picture 2 shows.

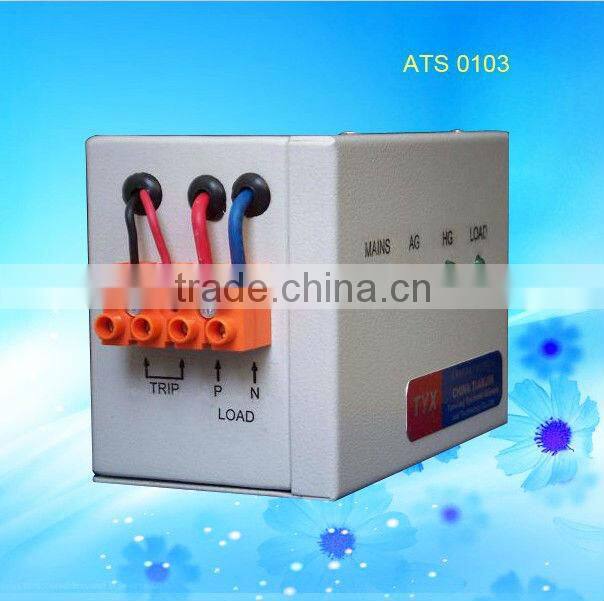

In the situation only self-provided generator power supply, "Gen" (picture 1 ) indicator emit light
In the situation only state grid power supply, "Utility" (picture 1 ) indicator emit light
