200W Air Cooler

Name: 200W Air Cooler
Brand: Shiyu
SKU: 100852437
Availability: InStock

US$ 300 - 550 MOQ: 2 Sets

Key Specifications

Condition:

New

Type:

Other, peltier air conditioner, peltier air conditioner

Place of Origin:

Tianjin, China

Tianjin Yanxiang Electronic Science And Technology Co., Ltd.

5Yrs

Payment & Shipping

Payment Methods:

Port of Shipment:

Tianjin port by sea or Beijing airport

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Type Other, peltier air conditioner, peltier air conditioner

Place of Origin Tianjin, China

Brand Name Shiyu

Model Number CE certified peltier air conditioner

Operating Voltage Other, 48VDC

Mounting Wall / Window Mount

Certification CE

200W air cooler TEC air conditioner thermoelectric air conditioner

TEC air conditioner is automatic temperature control equipment using peltier refrigeration.

The internal intelligent control system, automatic control peltier device to produce cool and heat dissipation fans operate.

There is LED display screen and key-press board, friendly operation interface.

The control system offering RS485 connector, can connect with the remote computer, achieve the remote monitoring function.

This product widely used in medium and small machine room, UPS room,

operators outdoor base station equipment room, bank ATM teller machine change money room etc.

Model		100WTEC	200WTEC	300W efficient TEC	400W efficient TEC
Working voltage (V)		DC48V	DC48V	DC48V	DC48V
The performance parameters
Rated input current-A	L25	3.5	7.0	8	10
Rated input current-A	L35	3.85	7.5	8.5	10.4
Refrigerating capacity-W	L25	100	200	300	400
Refrigerating capacity-W	L35	110	230	330	440
Rated input power-W	L25	168	336	384	480
Rated input power-W	L35	184	360	408	500
Heating-W		250	500	650	850
Circulating air volume-M3/H		50	70	100	100
Noise-dB(A)		55	57	60	60
Working environment temperature		-20℃-50℃	-20℃-50℃	-20℃-50℃	-20℃-50℃

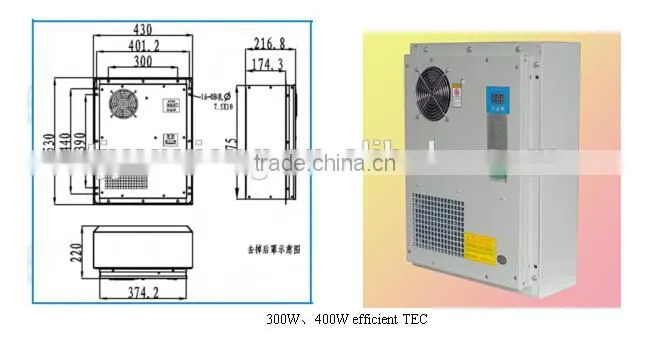

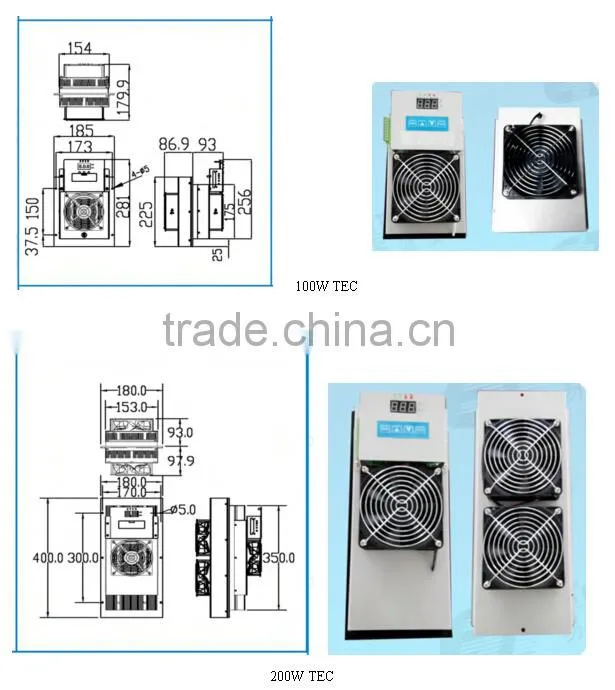

Mechanical parameters
Mount method		Side mounted	Side mounted	Side mounted	Side mounted
Height-MM		281	400	530	530
Width-MM		185	180	430	430
Thickness-MM		179.9	190.9	220	220
Controller parameters
Working voltage (V)		DC48V/50Hz
Working environment		-30℃~+70℃,<90%RH
The temperature control precision-℃		0.1	0.1	0.1	0.1
Power consumption-W		5	5	5	5
Communication mode		Dry contact/RS485/RS232/GPRS varies of communication mode are optional
