Specifications
1. 4 outlet gas separation panel2. Apply to flame or digital control cutting machine
3. Connect to the solenoid valve

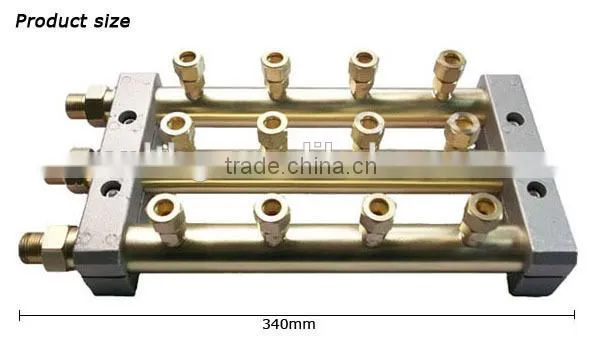

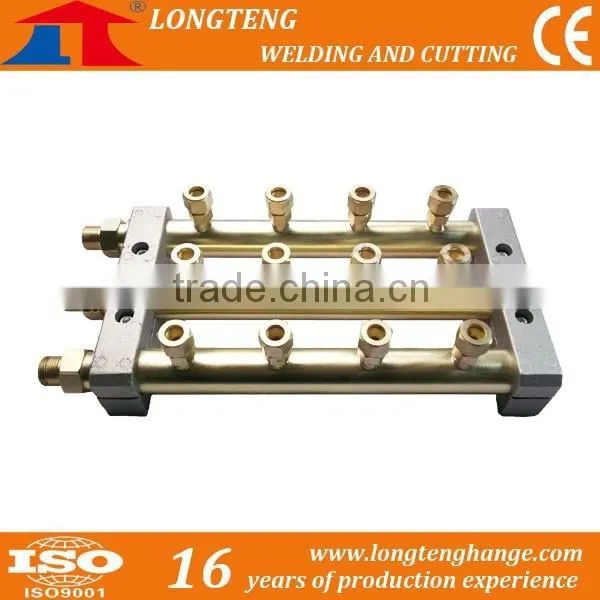

4 Outlet Gas Separation Panel Connect Hose To Cutting Torch
1) Quick Detail:
1. 4 outlet gas separation panel
2. Apply to flame or digital control cutting machine
3. Material:Brass
2) Description:
1>Structural Features
1. It adopts silver solder for the pipe system,which can effectively avoid leakage.
2. It uses replaceable joint at the gas inlet end,which can be replaced according to customers' needs.
3. With standard configuration at the gas outlet end,end-ring can be used to control the number of gas path needed.
4. The number of gas separation panel groups can be customized according to customers' needs.
3) Applications:
It is used in multi-headed flame straight strip cutting machines or digital control cutting machines, and can be used after connecting the separation panel joint with the cutting blowpipe.
4) Specifications:
Model Number |
LT-FL-03 |
Brand Name |
Longteng,OEM |
Place of Origin |
Wuxi, China (Mainland) |
Certification |
CE,ISO |
Loading Port |
FOB Shanghai |
Material |
Brass |
Standard |
4 outlet |
Type |
Straight through |
Connecting Format |
Weld |
Working Pressure |
15 |
Model No. |
Gas Service |
Inlet Connection |
Outlet Connection |
FLLTX |
Oxygen |
G1/2" /G3/8" -RH(M) |
M12×1.25/ M16×1.5-RH |
FLLTX |
Fuel Gas |
G1/2" /G3/8" -LH(M) |
M16×1.5-LH |
