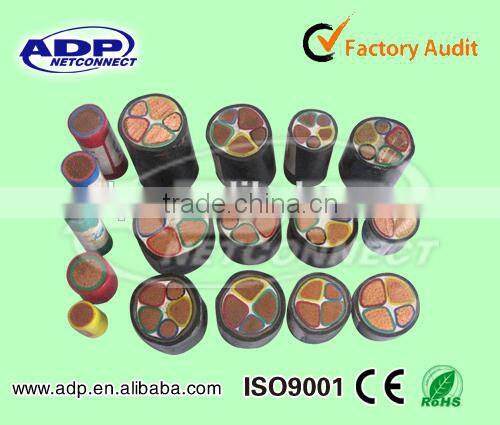

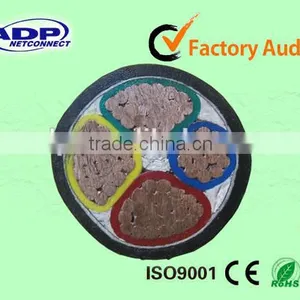

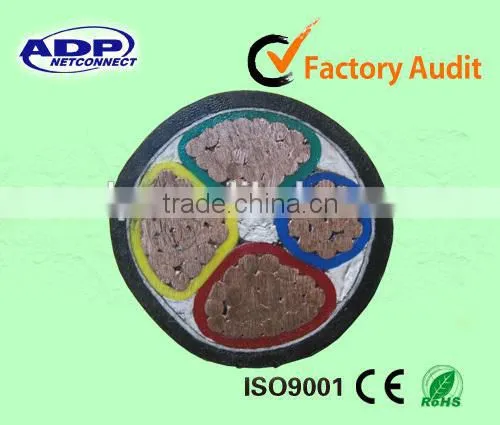

(YJV)Electric Cable 3 * 240mm2+1*120mm2 With PVC Sheath
US$ 1 - 20
MOQ: 1000 Meters
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
ADP or OEM
Model Number:
YJV
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
0.6/1KV YJV Power Cable CU ConductorUS$ 1 - 20MOQ: 1000 Meters -
0.6/1KV XLPE Insulation PVC Sheath YJLV Electric/Power CableUS$ 1 - 20MOQ: 5000 Meters
-
0.6/1KV XLPE Insulation PVC Sheath YJLV Power CableUS$ 1 - 20MOQ: 5000 Meters
-
0.6/1KV Aluminum Conductor XLPE Insulation PVC Sheath YJLV Power CableUS$ 1 - 20MOQ: 5000 Meters
-
0.6/1KV Aluminum Conductor XLPE Insulation PVC Sheath YJLV CableUS$ 1 - 20MOQ: 5000 Meters
Place of Origin
Guangdong, China
Brand Name
ADP or OEM
Model Number
YJV
Insulation Material
XLPE
Type
High Voltage
Application
Underground
Conductor Material
Other, Copper, Copper/Aluminum
Jacket
PVC
Specifications
Electric Cable 3 * 240mm2+1*120mm21.Fast delivery
2.Best quality, competitive price
4.TUV-Thrid Part verifield
(YJV)Electric Cable 3 * 240mm2+1*120mm2 With PVC Sheath
Descrption :
1. 0.6/1KV YJV electric cable/power cable
2.GB and IEC standard.
3.ISO,CCC certification .
4. Direct factory.
Application :
It is used to transmit and distribute power in power transmission and distribution system of 0.6/1KV,apply to lay indoor,in tunnel,cable trench.
Type & Designation:
| Type | Name | Application | |
| Copper conductor(CU) | Aluminum Conductor(Al) | ||
|
YJV YJY |
YJLV YJLV |
XLPE insulated, PVC or PE sheathed power cable | For laying indoor, tunnel, channel and underground. Unable to bear external mechanical force during laid. |
|
YJV22 YJV23 |
YJLV22 YJLY33 |
XLPE insulated, steel tape armoured, PVC or PE sheathed power cable | For laying indoor, tunnel, channel and underground. Able to bear external mechanical force, but unable to bear large pulling force. |
|
YJV32 YJV33 |
YJLV32 YJLV33 |
XLPE insulated, fine steel wire armoured, PVC or PE sheathed power cable | For laying in shaft with large difference of level. Able to bear external mechanical force ,and moderate pulling force. |
|
YJV42 YJV43 |
YJLV42 YJLV43 |
XLPE insulated, thick steel armoured, PVC or PE sheathed power cable | Can be laid in water or soil eith drop height .Able to bear positive pressure and pulling force. |
| Type | Name | Usage |
| VV | PVC insulated PVC sheathed power cable | Can be laid at indoor, tunnel and tube .Cable cannot under take mechanism outside force |
| VLV | ||
| VY | PVC insulated and PE sheathed power cable | Can be laid at indoor, tunnel tube and serious polluted places. Cable cannot undertake mechanism outside force |
| VLY | ||
| VV22 | PVC insulated steel belt armored and PVC sheathed power cable | Can be laid at indoor, tunnel tube and mining well. Cable cannot undertake mechanism outside force |
| VLV22 | ||
| VV23 | PVC insulated steel belt armored and PE sheathed power cable | Can be laid at indoor, tunnel tube mining well and serious polluted places. Cable cannot undertake mechanism outside force |
| VLV23 | ||
| VV32 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground and mining well .Cable can undertake mechanism outside force |
| VLV32 | ||
| VV33 | PVC insulated fine steel wire armored PE sheathed power cable | Can be laid at indoor, underground .Cable can under take mechanism outside force |
| VLV33 | ||
| VV42 | PVC insulated thick steel wire armored PE sheathed power cable | Can be laid at indoor, underground,mining well .Cable can under take mechanism outside force |
| VJV42 | ||
| VV43 | PVC insulated fine steel wire armored PVC sheathed power cable | Can be laid at indoor, underground ,mining well and the places of be terrible polluted. Cable can undertake mechanism outside force |
| VLV43 |
Using Character:
1.Max. permissible continuous operating temperature of conductor ≤70°
2 .Max. short circuit temperature of cable conductor shall not exceed 160°C(5s maximum duration)
3. The ambient temperature when installation should be above 0°C.
4.The product is manufactured according to the standard of GB,IEC,DIN and ICEA upon request
