mechanical control cable KVV1.factory price
2.13 year's experience.

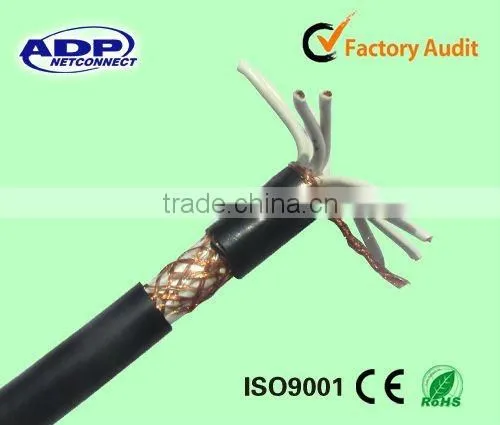

Mechanical control cable KVV
KVVP CONTROL CABLE: PVC insulated sheathed control cable
Description:
- Application:transmission of mechanical instrument control signals.
- rated voltage: 450/750 v
- Product standards: GB/T9330-2008
- Conductor: copper, aluminum
- Working temperature: not exceed 70 °C or 95 °
- laying temperature : not lower than 0 °C
- laying: mining control cable is located in the interior, cable trench, pipes and other fixed occasion can bear larger external mechanical forces.
Main categories:
model name
KVV PVC insulated PVC sheathed control cable
KVVP PVC insulated PVC sheathed braided shielding control cable
KVVP22 PVC insulated PVC sheathed copper tape screened control cable
KVV22 PVC insulated PVC sheathed steel tape armoured control cable
KVVR Soft PVC insulated PVC sheathed control cable
KVVRP Soft PVC insulated PVC sheathed braiding shielding control cable
Control cable specifications sheet:
model cores Section MM2
KVV, KVVP 2 ~ 10 0.75 ~ 10
KVV, KVVP 2 ~ 14 0.75 ~ 6
KVV, KVVP 2 ~ 61 0.75 ~ 2.5
KVVP2, KVV22 4 ~ 10 0.75 ~ 10
KVVP2, KVV22 4 ~ 14 0.75 ~ 6
KVVP2 4-61 0.75 ~ 2.5
KVV22 4-61 2.5
KVV22 7 ~ 61 0.75 ~ 1.5
KVVR 4-61 0.5 ~ 2.5
KVVRP 4 ~ 48 0.5 ~ 2.5
KVVRP 4-61 0.5 ~ 1.0
KVVRP22 4-61 1.0 ~ 1.5
Main functions:
apply mining control cable is located in the interior, in cable trench, pipes and other fixed occasion can bear larger external mechanical forces.
