hot selling rg 59 2 core coaxial cable rg 59 2 core
Description:
1) Inner conductor:Ccs ,Cca ,Coper
2) Dielectric: Ø3,6formed PE/SPE
3) Foil: Al foil or cu fail bonded/unbonded
4) Braided wire material: Cu, AL-Mg, T-C
5) Braided wire diameter: 0.12, 0.15, 0.16mm
6) Wire net number: 32, 48, 64, 80, 96, 112 and up
7) Coverage: 40%, 50%, 60%, 70%, 80%, 90%, 93%and up
8) Jacket:pvc or pe
9) Customized orders accepted

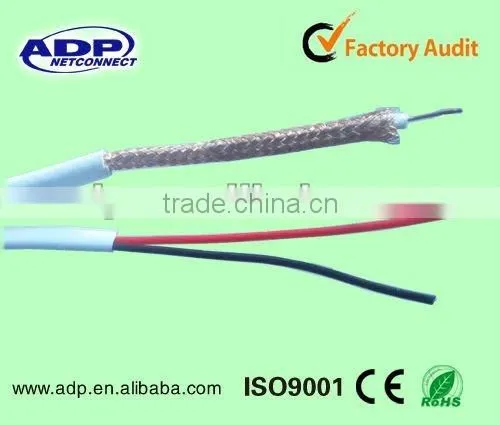

RG59 with power cable
1)BC or CCS 0.36 /0.58/0.64/0.81mm conductor
2)Foam PE insulation,95% coverage
3)6.0mm pvc jacket
3)stranded or solid DC power (2*18AWG)
composite CCTV cable RG59 Physical Dimensions
Component Material
Inner Conductor 0.81 (mm) BC/CCS
Dielectric 3.71(mm) Solid PE
Braid(coverage%) 4 0%~~~~100% BC/TC/AL-MG
Jacket 6.15(mm) PVC
Jacket Wall Thickness 0..92 (mm)
Inner Wire 7*0.404
Jacket 2.50
Electrical Characteristics
Impedance(Ohms) 50+3
Nomial Capacitcance(pF/m) 67
Velocity of Propagation 83%
Minimum Return Loss(dB)
1-1000Mhz 23
1000-2250Mhz 20
POWER WIRE 12V
Attenuation[ @68°F]
Frequency (Mhz) Maximum(dB/100M)
10 2.5
50 5.0
100 7.3
200 9.6
400 14.3
700 19.1
900 22.0
1000 24.0
Coaxial cable for CATV,CCTV systems ,For satellite systems

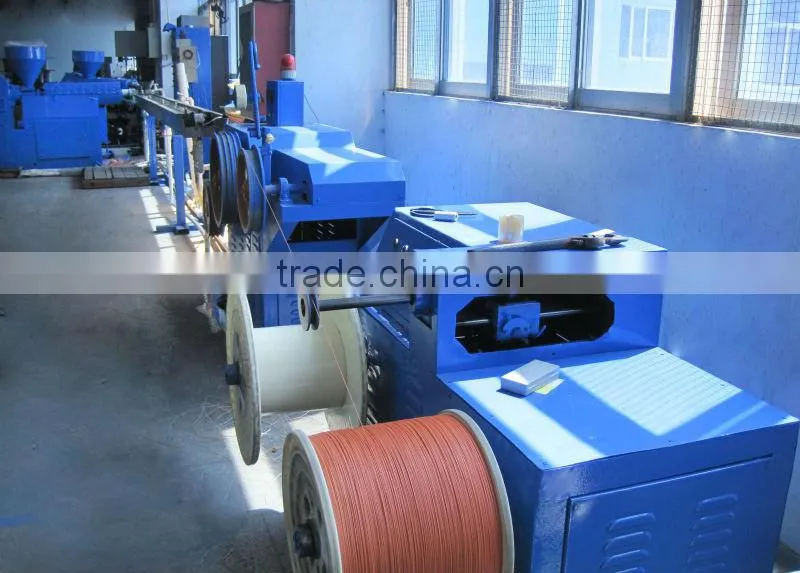

Welcome to our factory for a visit.
