Help CenterRGB LED Touch Controller
Related Products
Specifications
RGB LED Touch Controller1. DC5V/DC12VDC24V
2. 6Ax3Channels
3. Common Anode
4. High quality, best service
RGB LED Touch Controller Technical Parameters:
I:Technical Parameters(remote control):
1: Power supply: AAA battery * 3pcs
2: Cover Material:ABS
3: Fabrication processing: multicolour printing & UV varnish
Ⅱ: Technical Parameters(controller)
1. Working voltage: DC12V/24V
2. Output control: 3 circuits(R/G/B)
3. Control current: 6A/circuit
4. Connecting mathod: common anode
5: Wireless frequency: 433.92MHz
6. Receiving range: 20meters
Ⅲ: Functions of Keys
1. Key 1: on/off

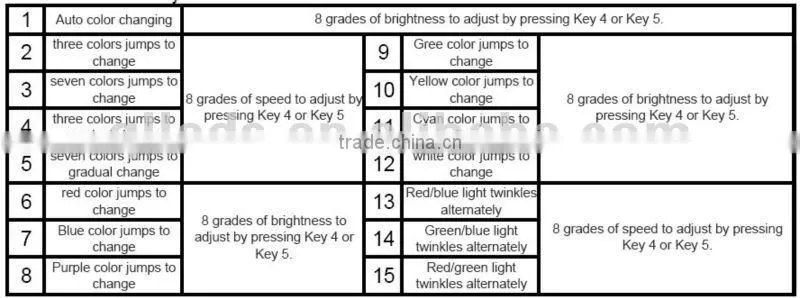

2. Key 2: light changing mode(15 modes)
3. Key 3:color light/white light switching mode
4. Key 4: turn up(brightness/speed)
5. Key 5: turn down(brightness/speed)
44-Key Infrared RGB LED Controller Direction for use:
1. Press Key 1 to turn on/off in any state.
2. Press Key 2 to activate light changing mode, a new mode each press,15 modes in total.
3. Press Key 3 once to activate white light mode, changing brightness by pressing Key 4/Key 5.
Press Key 3 twice to activate color light mode, changing brightness by pressing Key 4/Key 5 or
changing light color by touching the color ring.
4. Resume fuction. The previous settings will be resumed while power on again
V: Matching code:Press Key 4 once within 3 seconds when power on again,.the light will blink 3
times if matching is successful.Clearing Code Press Key 4 five times within 3 seconds when power
on again,.the light will blink 6 times if clearing is successful.
VI: Caution:
8 grades of speed to adjust by
pressing Key 4 or Key 5
8 grades of brightness to adjust by
pressing Key 4 or Key 5.
Please don’t touch or press the color ring while loading the battaries to ptrotec the sensitiveness.
Please use the remote controller 3 seconds after the battaries are loaded. Please reload the
battaries when you find the color ring is not sensitive.
