Specifications
24Keys IR RGB LED Controller1. DC5V/DC12V/DC18V/DC24V
2. 2Ax3Channels
3. Common Anode
4. 24 Keys
24Keys IR RGB LED Controller Technical Parameters:
Working temperature:-20-60 °C
Supply voltage: DC5V, 12V, 18V, 24V <optional >(for orders specify voltage)
0utput: 3 channels
Connecting mode:common anode
External dimension:L50ΧW35ΧH22 mm
Packing size:L105ΧW65ΧH40 mm
Net weight: 50 g
Gross weight: 70 g
Static power consumption: <1 W
Output current: <2 A (each channel)
Output power: 5 V: <30W, 12V: <72W, 24V: <144W
24Keys IR RGB LED Controller Direction for use :
1. Connect the load wire at first, following by the power wire; Please ensure short circuit can not occur
between connecting wire before you turn on the power;
2. operation,you will receive infrared remote control in front of infrared receiver to ensure that there is no
barrier between the remote control and receiving head;

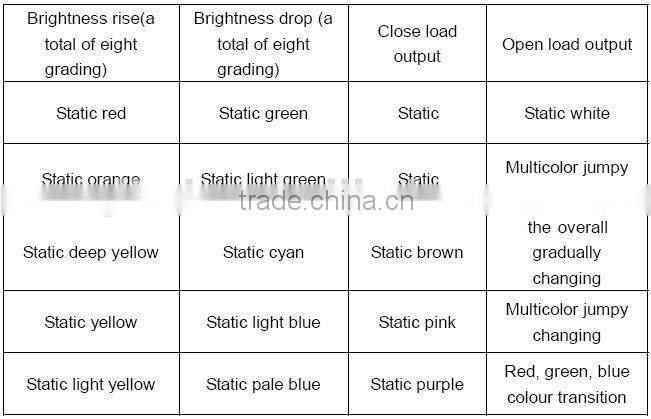

The key-press functions are shown in the table below (in accordance with the key position order):
