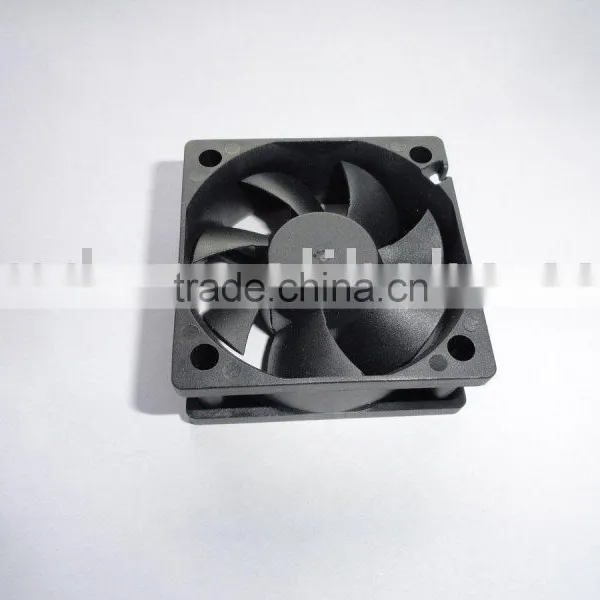

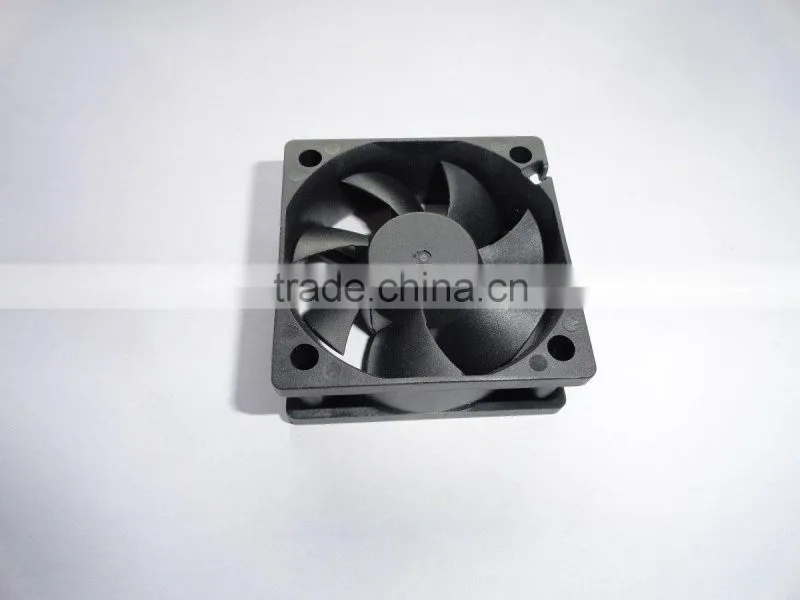

50*20mm Waterproof 1.5v dc Fan

Name: 50*20mm Waterproof 1.5v dc Fan
Brand: SON TIMES
SKU: 100835291
Availability: InStock

US$ 1 - 3 MOQ: 1000 Pieces

Key Specifications

Electric Current Type:

Mounting:

Free Standing

Blade Material:

Plastic

Shenzhen Son Times Electronics & Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Electric Current Type DC

Mounting Free Standing

Blade Material Plastic

Place of Origin Guangdong, China

Brand Name SON TIMES

Model Number ST5020HS(B)

Voltage 5/12/24V

Power 0.9-2.64W

Air Volume 12.84-15.23CFM

Speed 5000-6000RPM

Certification CE

Specifications

1.waterproof 1.5v dc fan
2.size:50*50*20mm
3.rated voltage:5/12/24v
4.ball bearing/sleeve
5.5000-6000RPM,0.04-0.24A

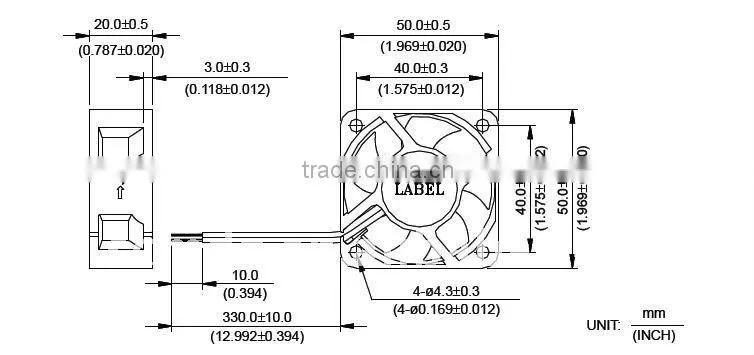

Frame size(mm)	505020mm
Bearing type	ball bearing/sleeve
Rated voltage	12/24v/48v
Rated speed	4000-6000RPM
Max air flow	30-50CFM
Max pressure	0.19-0.28inch-H2O
Max noise	29-33dBA
Functions	by impedance,FG
Safety approvals	CE ROHS
Dielectric Strength	5mA max at 1500VAC for 1 min between lead wire and frame
Insulation resistance	100M ohm between lead wire and frame(DC 500V)
Life expectancy(ball bearing)	70000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Life expectancy(hypro bearing)	>40000hrs min at 40 degree C/L10 relative humidity 65%+/-20%
Operation temperature	-10~80 degree C(+14~176 degree F)
Storge temperature	-40~75 degree C(-40~167 degree F)
Protection	Motor protection and polarity protection
Lead wire	UL1571 AWG26,28; UL1007 AWG26,28; UL1061 AWG30
fan blade material	Black PBT (UL94V-0) glass filled
frame material	PBT
Weight	29g
